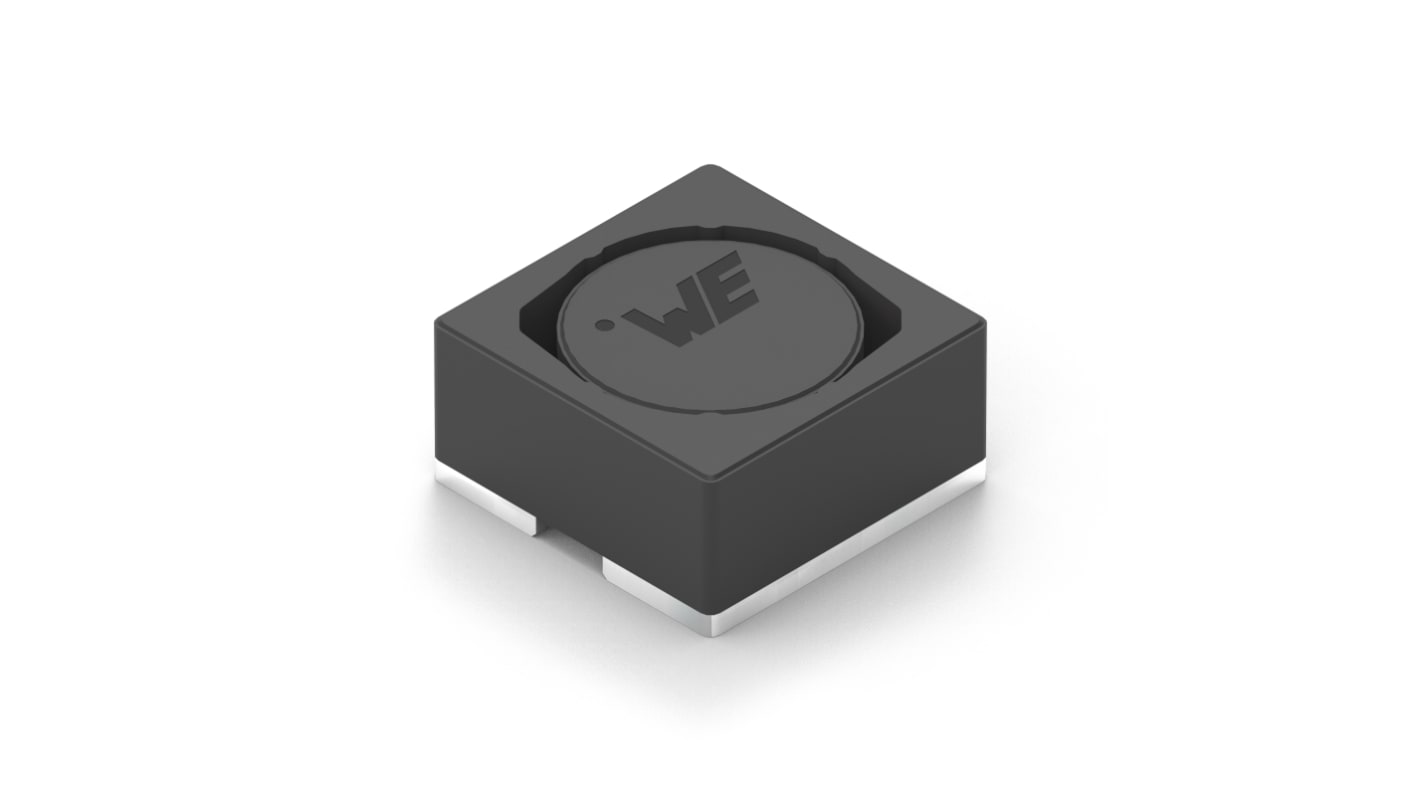

Wurth Elektronik, WE-HEPC, 6030 Shielded Power Inductor with a Polystyrene Core, 100 μH Shielded 20 % 500 mA Idc
- RS Stock No.:
- 270-0848
- Mfr. Part No.:
- 74408063101
- Brand:
- Wurth Elektronik
Subtotal (1 reel of 1500 units)*
£964.50
(exc. VAT)
£1,158.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1500 + | £0.643 | £964.50 |
*price indicative
- RS Stock No.:
- 270-0848
- Mfr. Part No.:
- 74408063101
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Inductance | 100 μH | |
| Product Type | Power Inductor | |
| Sub Type | SMT Power Inductor | |
| Maximum DC Current | 500mA | |
| Package/Case | 6030 | |
| Packaging | Tape & Reel | |
| Length | 5.9mm | |
| Automotive Standard | AEC-Q200 | |
| Shielding | Yes | |
| Minimum Operating Temperature | -40°C | |
| Maximum DC Resistance | 850mΩ | |
| Inductance Tolerance | 20 % | |
| Maximum Operating Temperature | 125°C | |
| Series | WE-HEPC | |
| Standards/Approvals | EU&2015, Halogen Free IEC 61249-2-21, 863, 2006, Halogen Free JEDEC JS709B, RoHS 2011, REACH or declared EC1907 | |
| Core Material | Polystyrene | |
| Depth | 5.9mm | |
| Height | 5.9mm | |
| Diameter | 5.9 mm | |
| Maximum Self Resonant Frequency | 8MHz | |
| Inductor Construction | Shielded | |
| Moulded | No | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Inductance 100 μH | ||
Product Type Power Inductor | ||
Sub Type SMT Power Inductor | ||
Maximum DC Current 500mA | ||
Package/Case 6030 | ||
Packaging Tape & Reel | ||
Length 5.9mm | ||
Automotive Standard AEC-Q200 | ||
Shielding Yes | ||
Minimum Operating Temperature -40°C | ||
Maximum DC Resistance 850mΩ | ||
Inductance Tolerance 20 % | ||
Maximum Operating Temperature 125°C | ||
Series WE-HEPC | ||
Standards/Approvals EU&2015, Halogen Free IEC 61249-2-21, 863, 2006, Halogen Free JEDEC JS709B, RoHS 2011, REACH or declared EC1907 | ||
Core Material Polystyrene | ||
Depth 5.9mm | ||
Height 5.9mm | ||
Diameter 5.9 mm | ||
Maximum Self Resonant Frequency 8MHz | ||
Inductor Construction Shielded | ||
Moulded No | ||
- COO (Country of Origin):
- TH
The Wurth Elektronik SMT power inductor is used in power magnetics, with an operating temperature is -40°C to +125°C. Recommended solder profile is reflow and land pattern matching with WE-LQFS, WE-SPC, WE-TPC.
Magnetically shielded
Embedded laptops and PCs
Filter applications
