Wurth, 1050 Wire-wound SMD Inductor 5.2 μH 10A Idc
- RS Stock No.:
- 248-8184
- Mfr. Part No.:
- 784325055
- Brand:
- Wurth Elektronik
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 248-8184
- Mfr. Part No.:
- 784325055
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Wurth Elektronik | |
Inductance | 5.2 μH | |
Maximum DC Current | 10A | |
Package/Case | 1050 | |
Length | 10.5mm | |
Automotive Standard | AEC-Q200 | |
Depth | 4.7mm | |
Select all | ||
---|---|---|
Brand Wurth Elektronik | ||
Inductance 5.2 μH | ||
Maximum DC Current 10A | ||
Package/Case 1050 | ||
Length 10.5mm | ||
Automotive Standard AEC-Q200 | ||
Depth 4.7mm | ||
- COO (Country of Origin):
- CN

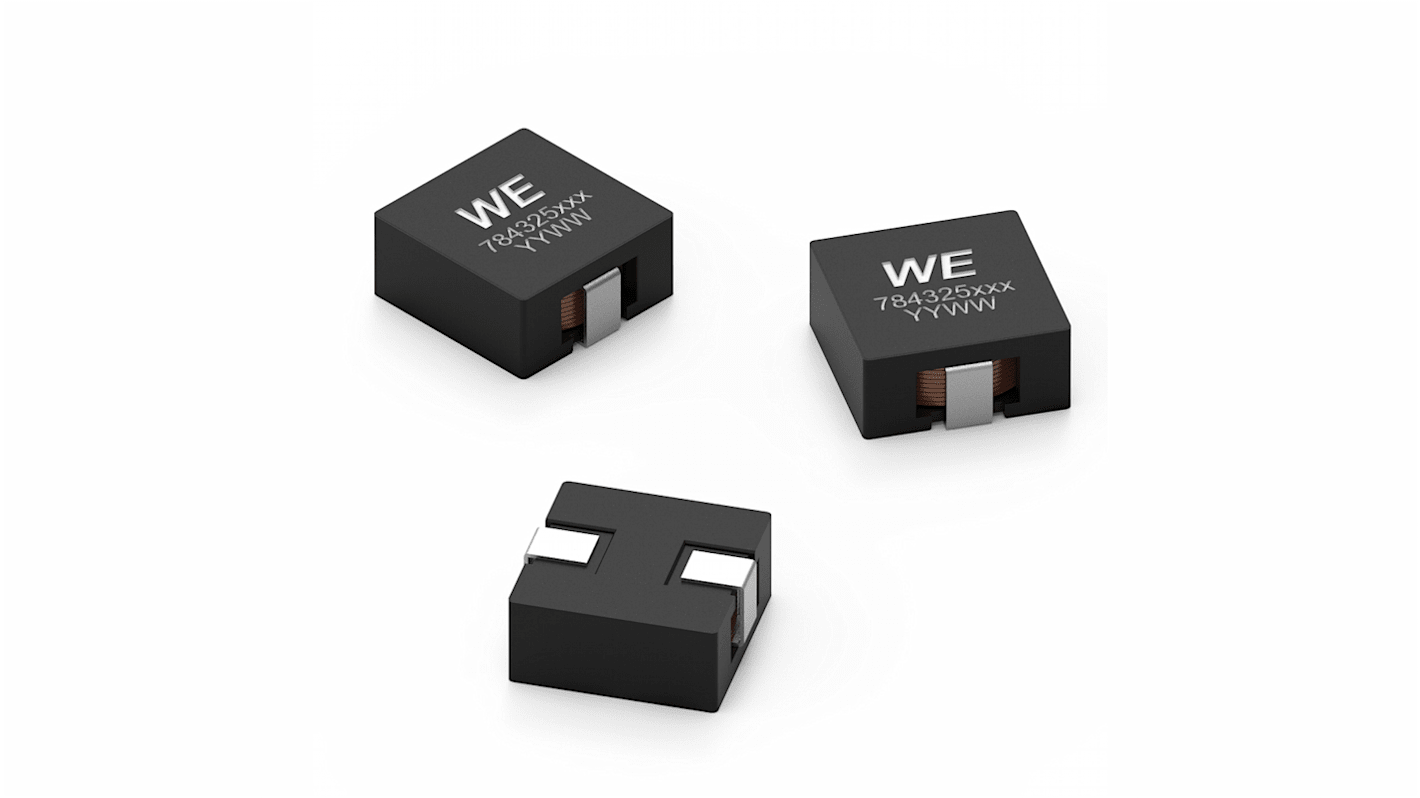

The Wurth Elektronik SMD flat wire high current inductor used in filter choke for motor electronics, car infotainment as well as in multimedia applications.
Magnetically shielded
Flat wire coil for low losses
Low stray field
Operating temperature: -55 °C up to +150 °C
Current capability up to 36 A
AEC-Q200
Flat wire coil for low losses
Low stray field
Operating temperature: -55 °C up to +150 °C
Current capability up to 36 A
AEC-Q200
