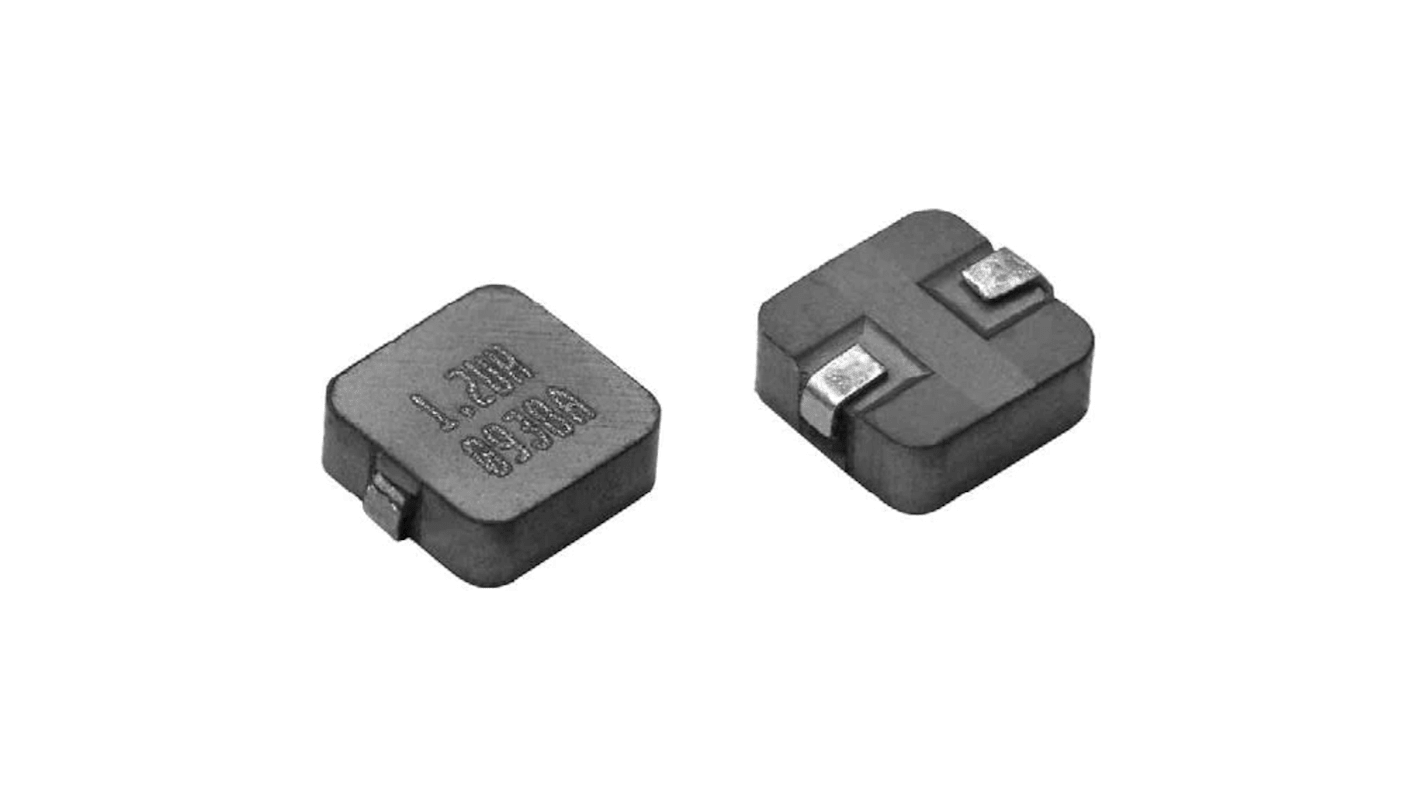

Vishay, IHLP, 1212 Shielded Surface Mount Inductor with a Metal Composite Core, 150 nH ±20 % 10.23 A Idc
- RS Stock No.:
- 248-8059
- Mfr. Part No.:
- IHLP1212ABEVR15M5A
- Brand:
- Vishay
Bulk discount available
Subtotal (1 tape of 5 units)*
£3.89
(exc. VAT)
£4.67
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 3,980 unit(s), ready to ship
Units | Per unit | Per Tape* |
|---|---|---|
| 5 - 45 | £0.778 | £3.89 |
| 50 - 245 | £0.686 | £3.43 |
| 250 - 495 | £0.582 | £2.91 |
| 500 - 995 | £0.438 | £2.19 |
| 1000 + | £0.338 | £1.69 |
*price indicative
- RS Stock No.:
- 248-8059
- Mfr. Part No.:
- IHLP1212ABEVR15M5A
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Inductance | 150nH | |
| Product Type | Surface Mount Inductor | |
| Maximum DC Current | 10.23A | |
| Package/Case | 1212 | |
| Length | 3.56mm | |
| Automotive Standard | AEC-Q200 | |
| Shielding | Yes | |
| Minimum Operating Temperature | -55°C | |
| Maximum DC Resistance | 9.73mΩ | |
| Maximum Operating Temperature | 155°C | |
| Series | IHLP | |
| Inductance Tolerance | ±20 % | |
| Depth | 1.2mm | |
| Height | 1.2mm | |
| Standards/Approvals | RoHS Compliant | |
| Core Material | Metal Composite | |
| Maximum Self Resonant Frequency | 328MHz | |
| Inductor Construction | Shielded | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Inductance 150nH | ||
Product Type Surface Mount Inductor | ||
Maximum DC Current 10.23A | ||
Package/Case 1212 | ||
Length 3.56mm | ||
Automotive Standard AEC-Q200 | ||
Shielding Yes | ||
Minimum Operating Temperature -55°C | ||
Maximum DC Resistance 9.73mΩ | ||
Maximum Operating Temperature 155°C | ||
Series IHLP | ||
Inductance Tolerance ±20 % | ||
Depth 1.2mm | ||
Height 1.2mm | ||
Standards/Approvals RoHS Compliant | ||
Core Material Metal Composite | ||
Maximum Self Resonant Frequency 328MHz | ||
Inductor Construction Shielded | ||
- COO (Country of Origin):
- CN
The Vishay IHLP-1212AB-5A series handles high transient current spikes without saturation and has ultra low buzz noise due to its composite construction. It has shielded construction and operating temperature is -55 °C to +155 °C.
Excellent DC to DC energy storage up to 5 MHz
Lowest DC resistance
