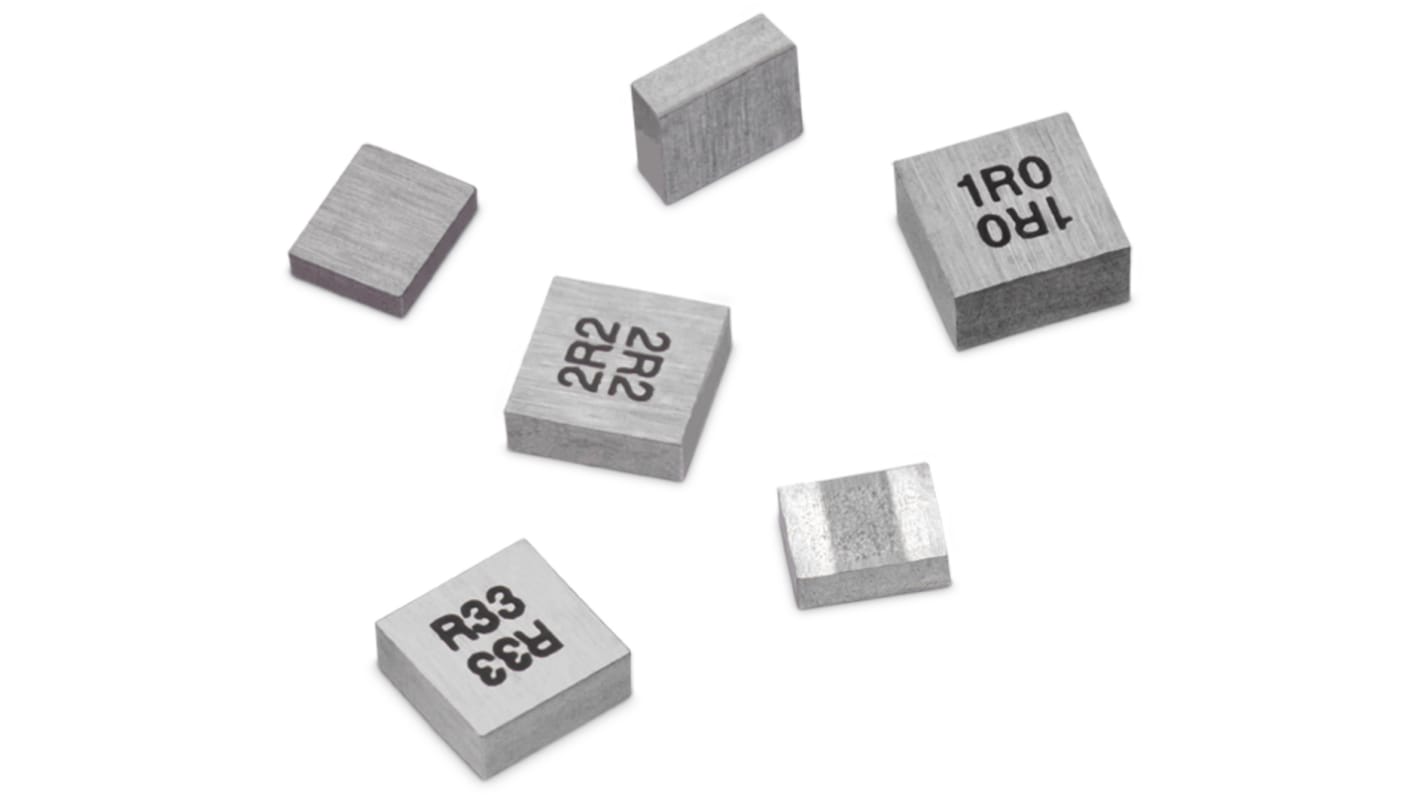

Wurth, 5020 Power Inductor 3.3 μH 5A Idc
- RS Stock No.:
- 245-8666
- Mfr. Part No.:
- 78438366033
- Brand:
- Wurth Elektronik
Subtotal (1 reel of 1000 units)*
£881.00
(exc. VAT)
£1,057.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 16 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
---|---|---|
1000 + | £0.881 | £881.00 |
*price indicative
- RS Stock No.:
- 245-8666
- Mfr. Part No.:
- 78438366033
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Wurth Elektronik | |
Inductance | 3.3 μH | |
Maximum DC Current | 5A | |
Package/Case | 5020 | |
Length | 5.4mm | |
Depth | 2.1mm | |
Automotive Standard | AEC-Q200 | |
Select all | ||
---|---|---|
Brand Wurth Elektronik | ||
Inductance 3.3 μH | ||
Maximum DC Current 5A | ||
Package/Case 5020 | ||
Length 5.4mm | ||
Depth 2.1mm | ||
Automotive Standard AEC-Q200 | ||
- COO (Country of Origin):
- KR
The Wurth Elektroniks SMT power inductor is used for power supplies for mobile devices, DC/DC- converter for high current power supplies, DC/DC-converter for field programmable gate array (FPGA), POL-converters, micro-controllers, portable as well as battery-driven devices and wireless communication devices.
Magnetic iron alloy allows high rated currents
Compact designed and magnetically shielded
High current capability and handles high transient current spikes
No acoustic noise and no leakage flux noise
Operating temperature range of -40°C up to +125°C
Compact designed and magnetically shielded
High current capability and handles high transient current spikes
No acoustic noise and no leakage flux noise
Operating temperature range of -40°C up to +125°C
