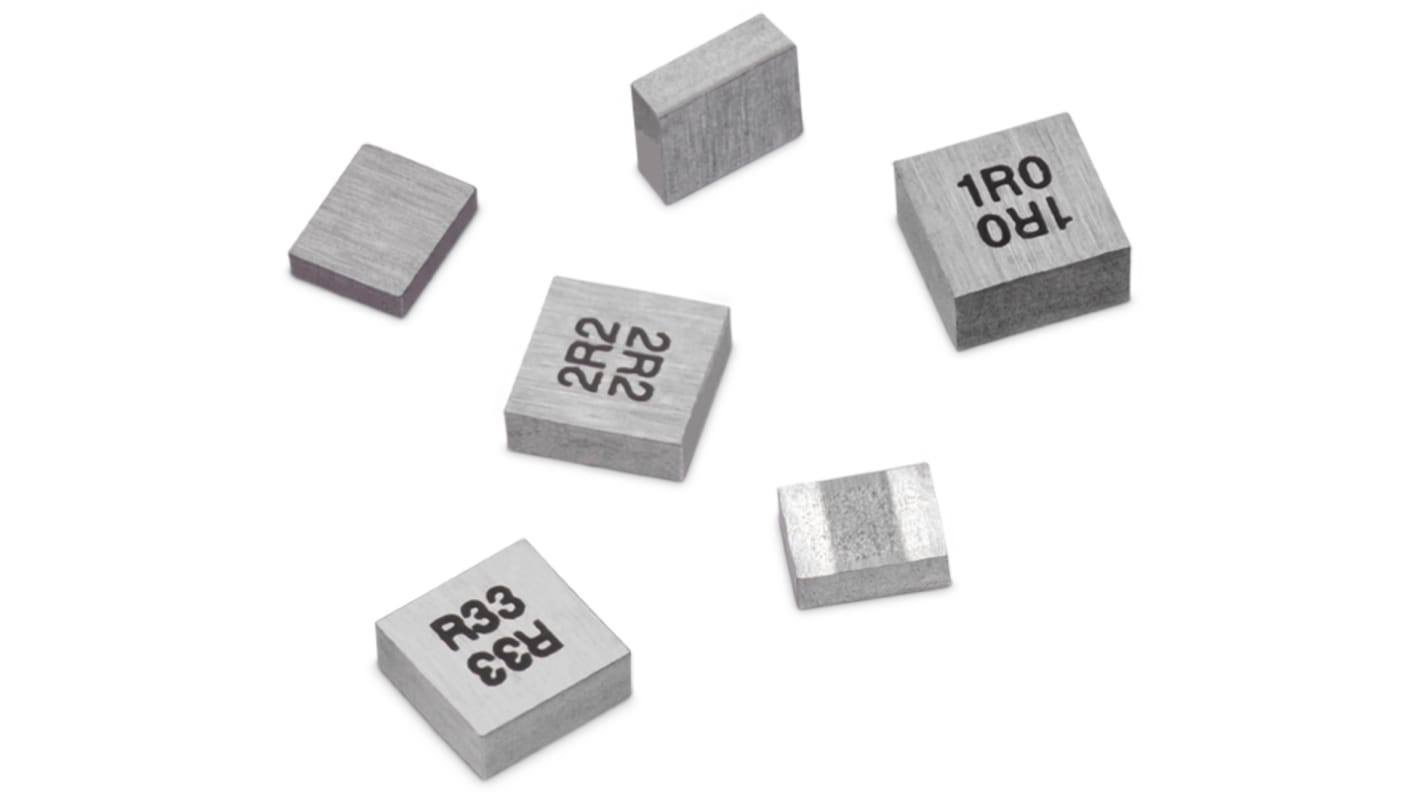

Wurth Elektronik, WE-MAIA, 1610 Shielded Power Inductor with a Magnetic Iron Alloy Core, 1.2 μH ±30 % 1.3 A Idc
- RS Stock No.:
- 245-8627
- Distrelec Article No.:
- 304-41-147
- Mfr. Part No.:
- 78438313012
- Brand:
- Wurth Elektronik
Bulk discount available
View bulk pricing optionsSubtotal (1 tape of 5 units)*
£4.32
(exc. VAT)
£5.185
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 415 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 5 - 45 | £0.864 | £4.32 |
| 50 - 95 | £0.832 | £4.16 |
| 100 - 245 | £0.814 | £4.07 |
| 250 - 495 | £0.79 | £3.95 |
| 500 + | £0.744 | £3.72 |
*price indicative
- RS Stock No.:
- 245-8627
- Distrelec Article No.:
- 304-41-147
- Mfr. Part No.:
- 78438313012
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Inductance | 1.2μH | |
| Product Type | Power Inductor | |
| Maximum DC Current | 1.3A | |
| Package/Case | 1610 | |
| Length | 1.6mm | |
| Packaging | Tape & Reel | |
| Automotive Standard | AEC-Q200 | |
| Shielding | Yes | |
| Minimum Operating Temperature | -40°C | |
| Pin Count | 2 | |
| Maximum DC Resistance | 174mΩ | |
| Maximum Operating Temperature | 125°C | |
| Series | WE-MAIA | |
| Inductance Tolerance | ±30 % | |
| Standards/Approvals | IEC 61249-2-21, JEDEC JS709B, REACH, RoHS | |
| Height | 1mm | |
| Termination Style | Surface Mount | |
| Depth | 1mm | |
| Core Material | Magnetic Iron Alloy | |
| Maximum Self Resonant Frequency | 109MHz | |
| Inductor Construction | Wirewound | |
| Moulded | Yes | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Inductance 1.2μH | ||
Product Type Power Inductor | ||
Maximum DC Current 1.3A | ||
Package/Case 1610 | ||
Length 1.6mm | ||
Packaging Tape & Reel | ||
Automotive Standard AEC-Q200 | ||
Shielding Yes | ||
Minimum Operating Temperature -40°C | ||
Pin Count 2 | ||
Maximum DC Resistance 174mΩ | ||
Maximum Operating Temperature 125°C | ||
Series WE-MAIA | ||
Inductance Tolerance ±30 % | ||
Standards/Approvals IEC 61249-2-21, JEDEC JS709B, REACH, RoHS | ||
Height 1mm | ||
Termination Style Surface Mount | ||
Depth 1mm | ||
Core Material Magnetic Iron Alloy | ||
Maximum Self Resonant Frequency 109MHz | ||
Inductor Construction Wirewound | ||
Moulded Yes | ||
- COO (Country of Origin):
- KR
The Wurth Elektroniks SMT power inductor is used for power supplies for mobile devices, DC/DC- converter for high current power supplies, DC/DC-converter for field programmable gate array (FPGA), POL-converters, micro-controllers, portable as well as battery-driven devices and wireless communication devices.
Magnetic iron alloy allows high rated currents
Compact designed and magnetically shielded
High current capability and handles high transient current spikes
No acoustic noise and no leakage flux noise
Operating temperature range of -40°C up to +125°C
