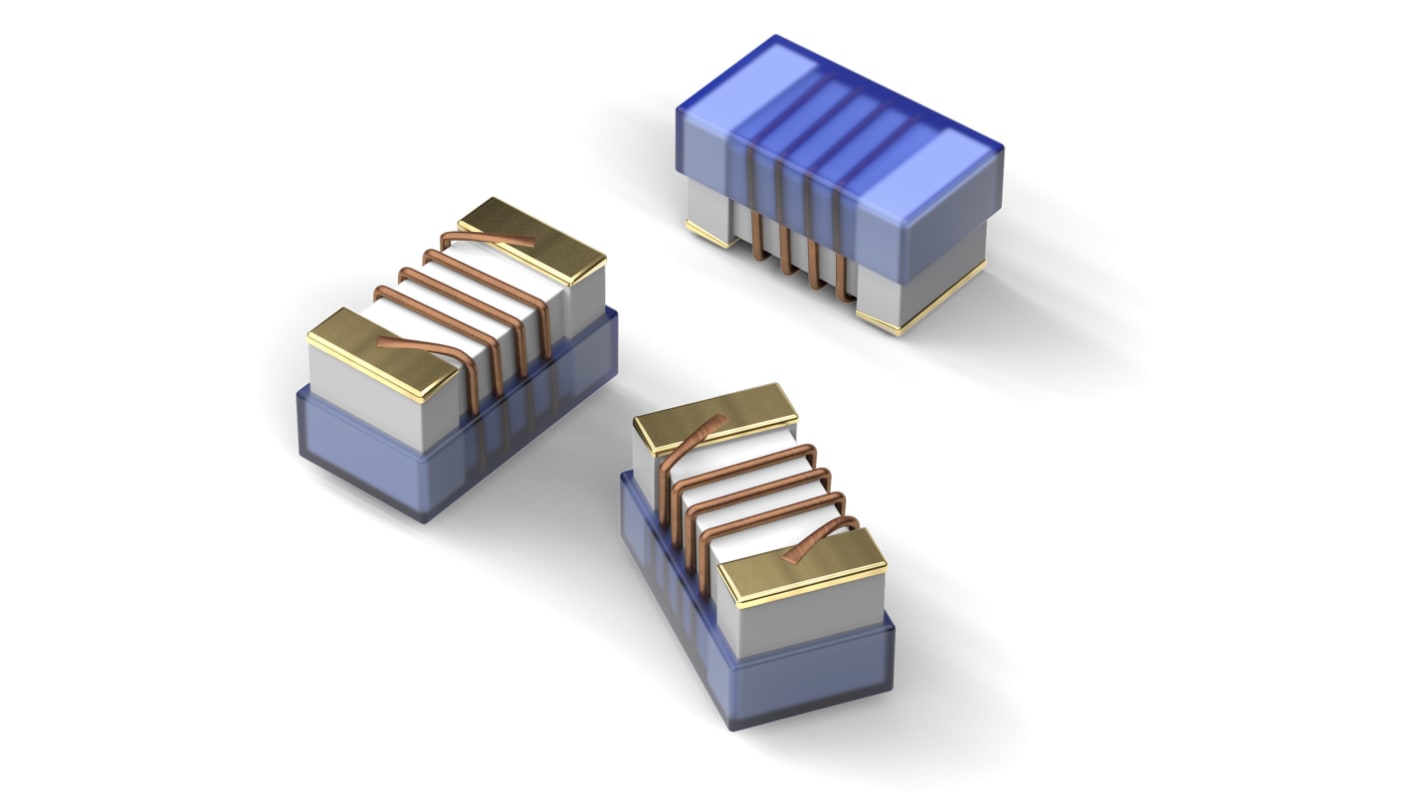

Wurth, 0805 (2012M) Wire-wound SMD Inductor 820 nH 300mA Idc

View all Surface Mount Inductors
Save 45% when you buy 1000 units

Subtotal (1 tape of 10 units)*

£3.59

(exc. VAT)

£4.31

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 4,800 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tape*
10 - 40£0.359£3.59
50 - 90£0.309£3.09
100 - 490£0.282£2.82
500 - 990£0.232£2.32
1000 +£0.194£1.94

*price indicative

Packaging Options:
RS Stock No.:
245-8312
Mfr. Part No.:
7447602820A
Brand:
Wurth Elektronik
Find similar products by selecting one or more attributes.
Select all

Brand

Wurth Elektronik

Inductance

820 nH

Maximum DC Current

300mA

Package/Case

0805 (2012M)

Length

2mm

Automotive Standard

AEC-Q200

Depth

1.2mm

COO (Country of Origin):
MY
The Wurth Elektroniks SMT wire-wound ceramic inductor is especially developed for high frequency applications. Also for applications such as RF transceiver/communications, SAT-receiver, set top box, broadband signal transmission, bluetooth and wireless LAN.

Excellent Q factor and highest possible self resonant frequencies up to 12.5 GHz
High quality with high thermal stability
Inductance tolerances of 2% and 5%
Recommended soldering of reflow type
Operating temperature of -40°C to +125°C
