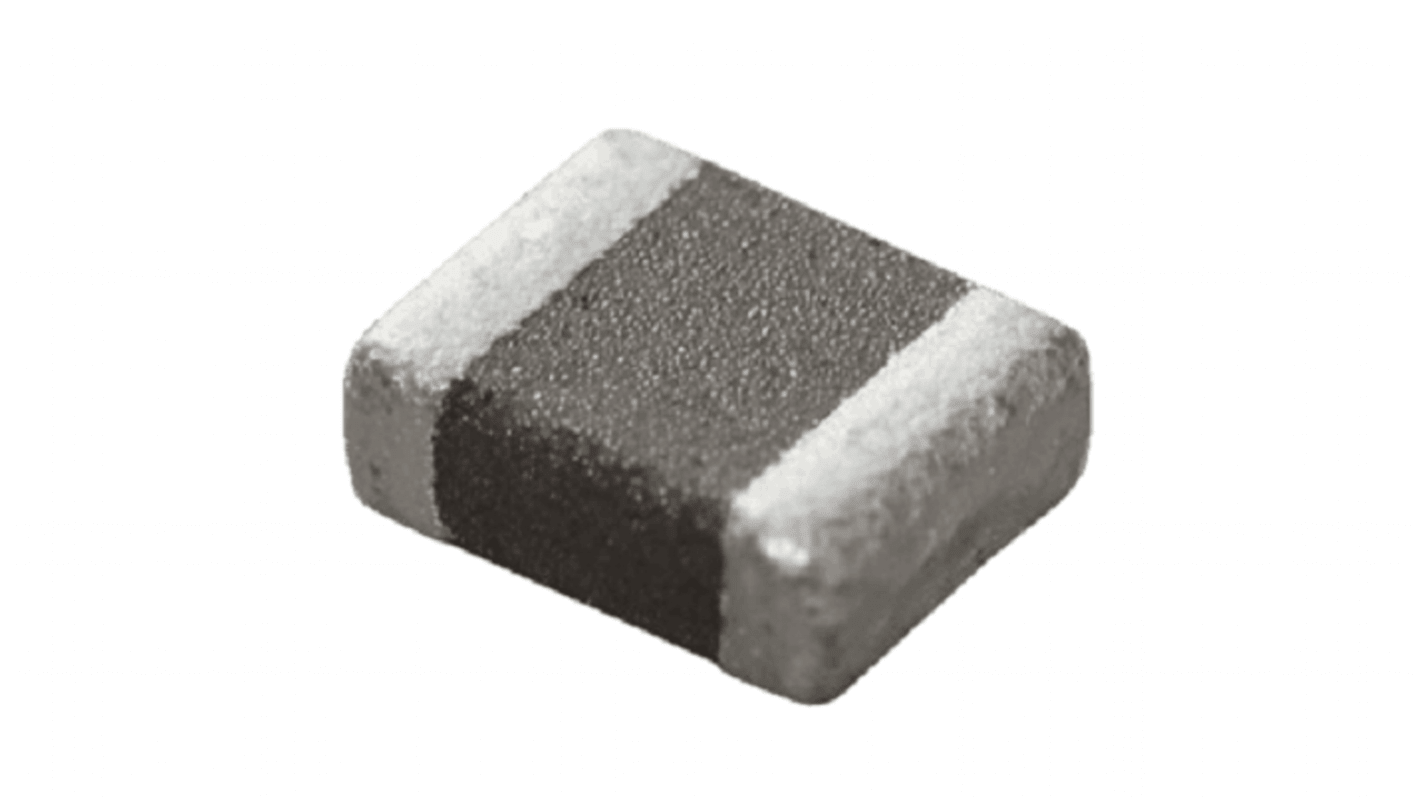

Murata, DFE322512F, 1210 Shielded Surface Mount Inductor with a Metal Alloy Core, 330 nH ±20 % 8.5 A Idc
- RS Stock No.:
- 240-8492
- Mfr. Part No.:
- DFE322512F-R33M=P2
- Brand:
- Murata
Bulk discount available
View bulk pricing optionsSubtotal (1 tape of 10 units)*
£3.57
(exc. VAT)
£4.28
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 30 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tape(s) | Per Tape | Per unit* |
|---|---|---|
| 1 - 4 | £3.57 | £0.357 |
| 5 - 9 | £3.47 | £0.347 |
| 10 - 24 | £3.29 | £0.329 |
| 25 - 99 | £3.11 | £0.311 |
| 100 + | £2.38 | £0.238 |
*price indicative
- RS Stock No.:
- 240-8492
- Mfr. Part No.:
- DFE322512F-R33M=P2
- Brand:
- Murata
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Murata | |
| Product Type | Surface Mount Inductor | |
| Inductance | 330nH | |
| Maximum DC Current | 8.5A | |
| Package/Case | 1210 | |
| Packaging | Tape & Reel | |
| Length | 3.2mm | |
| Automotive Standard | No | |
| Shielding | Yes | |
| Pin Count | 2 | |
| Maximum DC Resistance | 20mΩ | |
| Minimum Operating Temperature | -40°C | |
| Series | DFE322512F | |
| Maximum Operating Temperature | 125°C | |
| Inductance Tolerance | ±20 % | |
| Core Material | Metal Alloy | |
| Height | 1.2mm | |
| Termination Style | Surface Mount | |
| Standards/Approvals | RoHS | |
| Depth | 2.5mm | |
| Moulded | Yes | |
| Inductor Construction | Wirewound | |
| Select all | ||
|---|---|---|
Brand Murata | ||
Product Type Surface Mount Inductor | ||
Inductance 330nH | ||
Maximum DC Current 8.5A | ||
Package/Case 1210 | ||
Packaging Tape & Reel | ||
Length 3.2mm | ||
Automotive Standard No | ||
Shielding Yes | ||
Pin Count 2 | ||
Maximum DC Resistance 20mΩ | ||
Minimum Operating Temperature -40°C | ||
Series DFE322512F | ||
Maximum Operating Temperature 125°C | ||
Inductance Tolerance ±20 % | ||
Core Material Metal Alloy | ||
Height 1.2mm | ||
Termination Style Surface Mount | ||
Standards/Approvals RoHS | ||
Depth 2.5mm | ||
Moulded Yes | ||
Inductor Construction Wirewound | ||
- COO (Country of Origin):
- VN
The Murata metal alloy power inductor for automotive. Inductance Test Frequency is 1 MHz. Its operating temperature range (Self-temperature rise is included) is -40℃ to 125℃. Class of magnetic shield is metal alloy. The rated current (Isat) is specified when the decrease of the initial inductance value at 30%. Rated current (Itemp) is specified when temperature of the inductor is raised 40°C by DC current. Rated current (Isat) (Based on Inductance change) is 8500 mA and Rated current (Itemp) (Based on Temperature rise) is 5400 mA. Maximum value of DC resistance is 0.02 Ω.
Inductance value is 0.33 μH ± 20 %
Absolute maximum voltage is 20 Vdc
