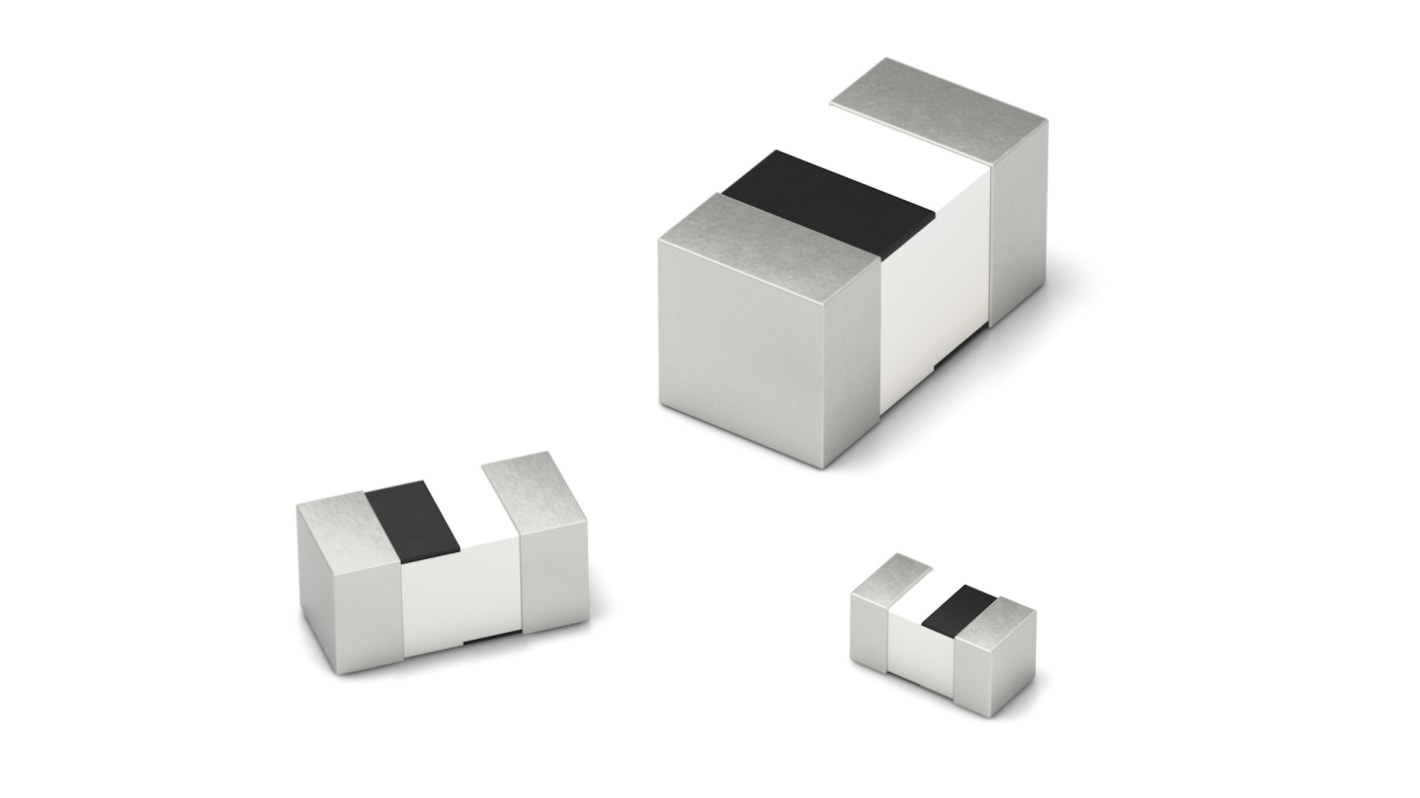

Wurth, 0805 (2012M) Wire-wound SMD Inductor 120 nH 300mA Idc
- RS Stock No.:
- 238-9584
- Mfr. Part No.:
- 7447880212
- Brand:
- Wurth Elektronik
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 238-9584
- Mfr. Part No.:
- 7447880212
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Wurth Elektronik | |
Inductance | 120 nH | |
Maximum DC Current | 300mA | |
Package/Case | 0805 (2012M) | |
Length | 2mm | |
Depth | 1.25mm | |
Automotive Standard | AEC-Q200 Grade 1 | |
Select all | ||
---|---|---|
Brand Wurth Elektronik | ||
Inductance 120 nH | ||
Maximum DC Current 300mA | ||
Package/Case 0805 (2012M) | ||
Length 2mm | ||
Depth 1.25mm | ||
Automotive Standard AEC-Q200 Grade 1 | ||
- COO (Country of Origin):
- TW
The Wurth elektronik WE-MK multilayer ceramic SMT inductor has a coil integrated in a multilayer ceramic structure, 120 nH inductance and 300 mA max. rated current. It is used in applications such as high frequency circuits, bluetooth, wireless LAN ,oscillators, laptops, etc.
High self resonant frequency
Inductive tolerances of ±2% (or ±0.1nH) and ±5% (or ±0.3nH)
Very stable inductance over temperature
0.95Ω max. DC resistance
13 Qmin.
Operating temperature ranges between –55°C to +125°C
RoHS compliant
Halogen free
Inductive tolerances of ±2% (or ±0.1nH) and ±5% (or ±0.3nH)
Very stable inductance over temperature
0.95Ω max. DC resistance
13 Qmin.
Operating temperature ranges between –55°C to +125°C
RoHS compliant
Halogen free
