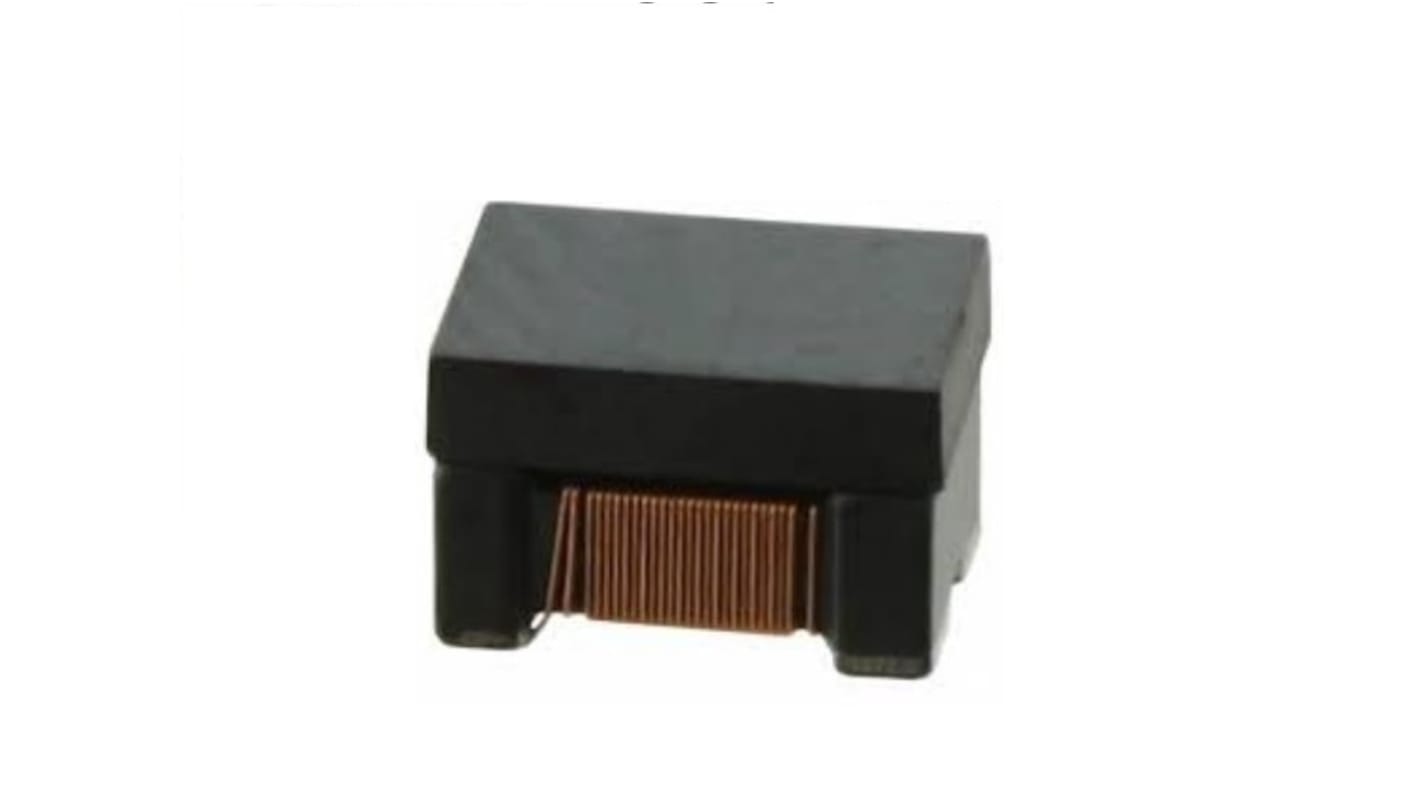

Bourns, SRF4532, 4532 Unshielded Surface Mount Inductor with a Ferrite Core, 11 μH Ferrite Core 25 % 300 mA Idc
- RS Stock No.:
- 233-0793
- Mfr. Part No.:
- SRF4532-110Y
- Brand:
- Bourns
Bulk discount available
View bulk pricing optionsSubtotal (1 tape of 5 units)*
£2.60
(exc. VAT)
£3.10
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 970 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 5 - 45 | £0.52 | £2.60 |
| 50 - 95 | £0.372 | £1.86 |
| 100 - 195 | £0.346 | £1.73 |
| 200 + | £0.322 | £1.61 |
*price indicative
- RS Stock No.:
- 233-0793
- Mfr. Part No.:
- SRF4532-110Y
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Inductance | 11μH | |
| Product Type | Surface Mount Inductor | |
| Maximum DC Current | 300mA | |
| Package/Case | 4532 | |
| Length | 4.5mm | |
| Packaging | 500 pieces per 7 in Reel | |
| Automotive Standard | AEC-Q200 | |
| Shielding | No | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Series | SRF4532 | |
| Inductance Tolerance | 25 % | |
| Depth | 2.8mm | |
| Standards/Approvals | Mar 31, 2015 and Annex, RoHS 2015/863 | |
| Height | 2.8mm | |
| Termination Style | Tin Plated Red Copper(DSn) | |
| Core Material | Ferrite | |
| Moulded | Yes | |
| Inductor Construction | Ferrite Core | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Inductance 11μH | ||
Product Type Surface Mount Inductor | ||
Maximum DC Current 300mA | ||
Package/Case 4532 | ||
Length 4.5mm | ||
Packaging 500 pieces per 7 in Reel | ||
Automotive Standard AEC-Q200 | ||
Shielding No | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Series SRF4532 | ||
Inductance Tolerance 25 % | ||
Depth 2.8mm | ||
Standards/Approvals Mar 31, 2015 and Annex, RoHS 2015/863 | ||
Height 2.8mm | ||
Termination Style Tin Plated Red Copper(DSn) | ||
Core Material Ferrite | ||
Moulded Yes | ||
Inductor Construction Ferrite Core | ||
- COO (Country of Origin):
- TW
The Bourns SRF4532 series common mode chip inductor has 11 μH inductance.
Bifilar wound
High common mode impedance
