Bourns, SDR2207, 2207 Shielded Surface Mount Inductor with a Ferrite DR Core, 100 μH Ferrite Core 10 % 2.2 A Idc Q:18
- RS Stock No.:
- 233-0783
- Mfr. Part No.:
- SDR2207-101KL
- Brand:
- Bourns
Subtotal (1 reel of 250 units)*
£147.25
(exc. VAT)
£176.75
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 10 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 250 + | £0.589 | £147.25 |
*price indicative
- RS Stock No.:
- 233-0783
- Mfr. Part No.:
- SDR2207-101KL
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Inductance | 100 μH | |
| Product Type | Surface Mount Inductor | |
| Maximum DC Current | 2.2A | |
| Package/Case | 2207 | |
| Length | 22mm | |
| Automotive Standard | No | |
| Shielding | Yes | |
| Minimum Operating Temperature | -40°C | |
| Maximum DC Resistance | 168mΩ | |
| Series | SDR2207 | |
| Inductance Tolerance | 10 % | |
| Maximum Operating Temperature | 125°C | |
| Height | 7mm | |
| Termination Style | Copper/Silver/Tin | |
| Depth | 7mm | |
| Core Material | Ferrite DR | |
| Standards/Approvals | RoHS | |
| Maximum Self Resonant Frequency | 6.2MHz | |
| Minimum Quality Factor | 18 | |
| Moulded | Yes | |
| Inductor Construction | Ferrite Core | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Inductance 100 μH | ||
Product Type Surface Mount Inductor | ||
Maximum DC Current 2.2A | ||
Package/Case 2207 | ||
Length 22mm | ||
Automotive Standard No | ||
Shielding Yes | ||
Minimum Operating Temperature -40°C | ||
Maximum DC Resistance 168mΩ | ||
Series SDR2207 | ||
Inductance Tolerance 10 % | ||
Maximum Operating Temperature 125°C | ||
Height 7mm | ||
Termination Style Copper/Silver/Tin | ||
Depth 7mm | ||
Core Material Ferrite DR | ||
Standards/Approvals RoHS | ||
Maximum Self Resonant Frequency 6.2MHz | ||
Minimum Quality Factor 18 | ||
Moulded Yes | ||
Inductor Construction Ferrite Core | ||
- COO (Country of Origin):
- CN

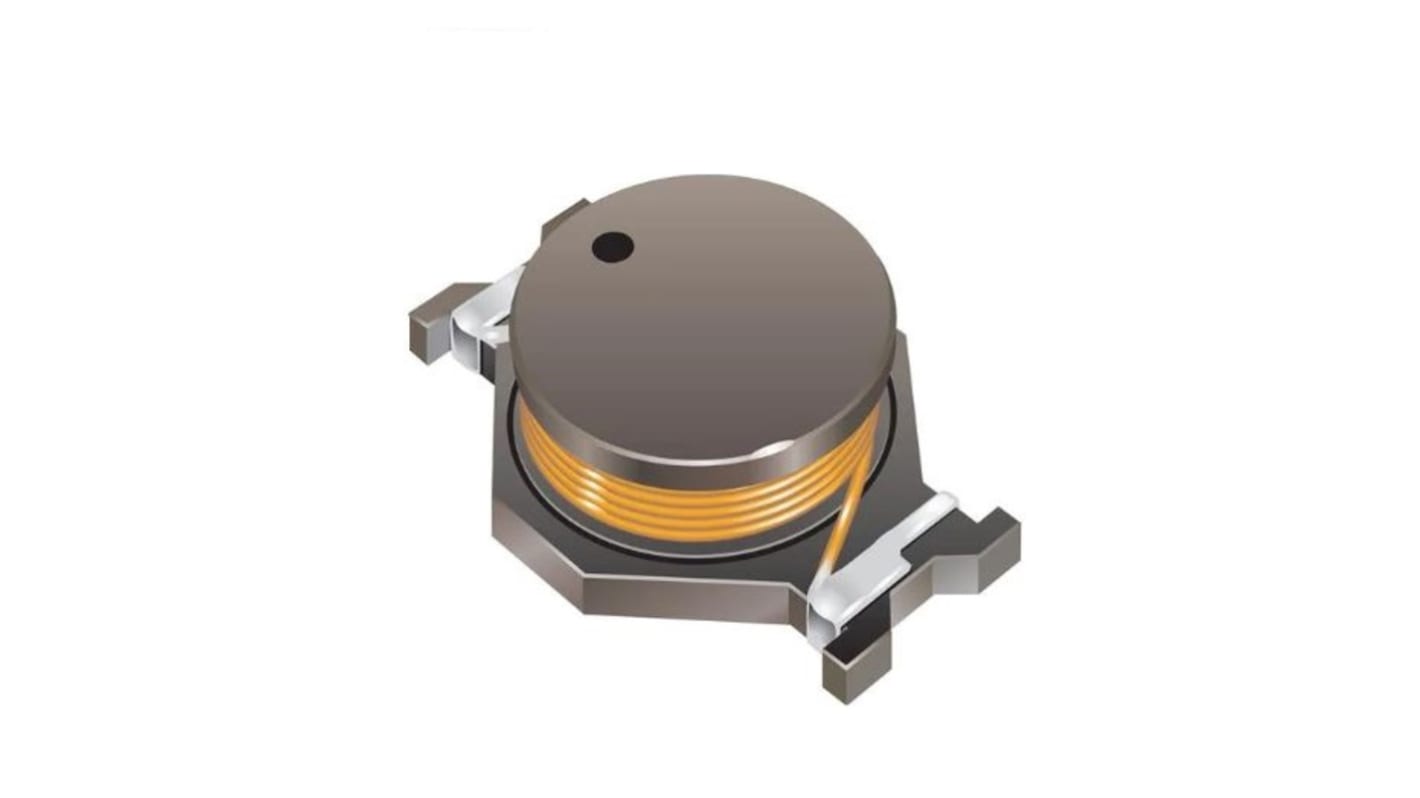

The Bourns SDR2207 series SMD power inductor has 100 μH inductance and tolerance of ± 10 %. It has ferrite DR core and enamelled copper wire used for winding.
Operating temperature -40 °C to +125 °C
