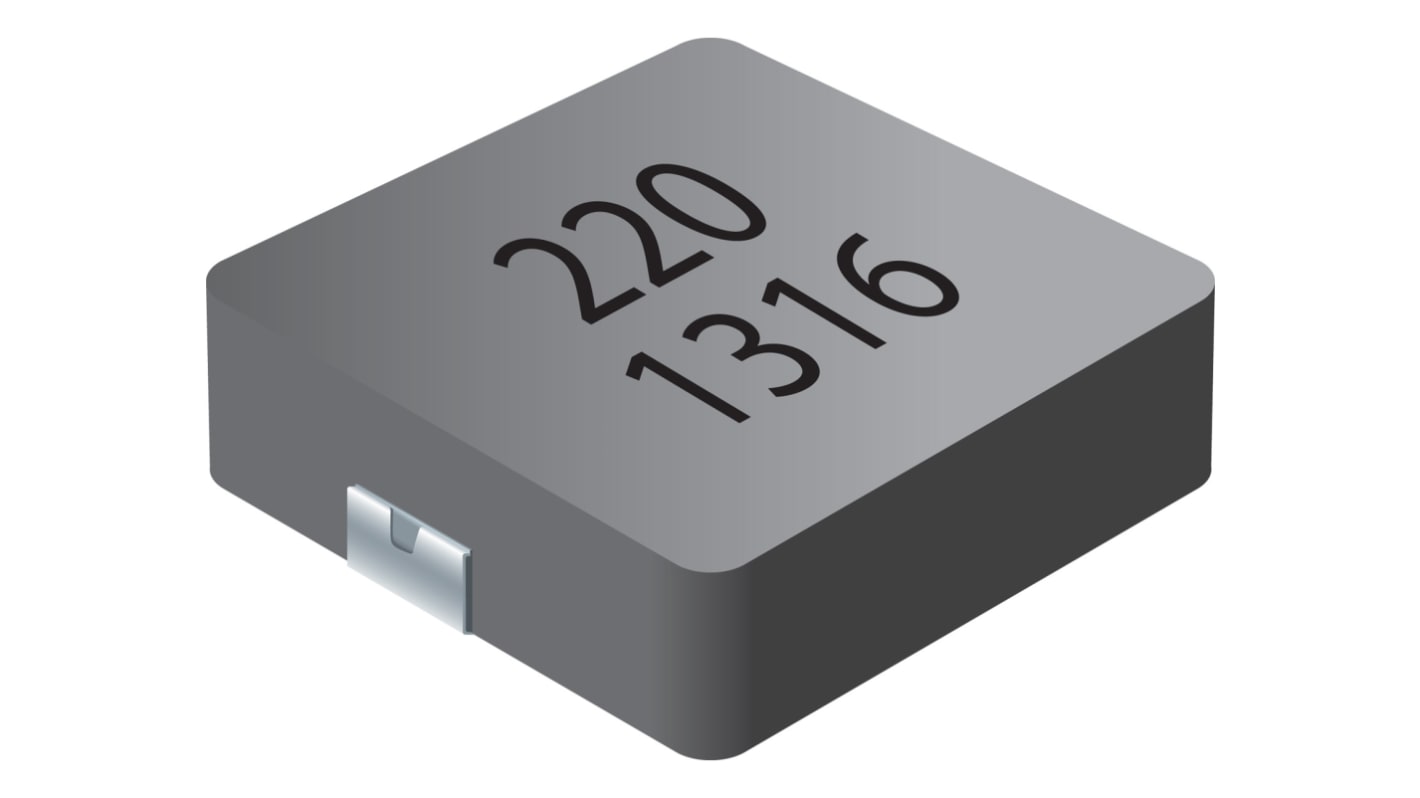

Bourns, SRP1038A Shielded Multilayer Surface Mount Inductor with a Carbonyl Powder Core, 22 μH 20 % 5 A Idc Q:20
- RS Stock No.:
- 223-1826
- Distrelec Article No.:
- 304-31-305
- Mfr. Part No.:
- SRP1038A-220M
- Brand:
- Bourns
Bulk discount available
View bulk pricing optionsSubtotal (1 tape of 5 units)*
£5.41
(exc. VAT)
£6.49
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1,730 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 5 - 20 | £1.082 | £5.41 |
| 25 - 45 | £0.93 | £4.65 |
| 50 - 95 | £0.866 | £4.33 |
| 100 - 195 | £0.842 | £4.21 |
| 200 + | £0.824 | £4.12 |
*price indicative
- RS Stock No.:
- 223-1826
- Distrelec Article No.:
- 304-31-305
- Mfr. Part No.:
- SRP1038A-220M
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Product Type | Multilayer Surface Mount Inductor | |
| Inductance | 22μH | |
| Maximum DC Current | 5A | |
| Package/Case | Surface Mount | |
| Length | 10mm | |
| Packaging | 500 pieces per 13 in Reel | |
| Automotive Standard | AEC-Q200 | |
| Shielding | Yes | |
| Minimum Operating Temperature | -55°C | |
| Maximum DC Resistance | 74mΩ | |
| Maximum Operating Temperature | 150°C | |
| Inductance Tolerance | 20 % | |
| Series | SRP1038A | |
| Core Material | Carbonyl Powder | |
| Standards/Approvals | RoHS | |
| Depth | 3.8mm | |
| Maximum Self Resonant Frequency | 8MHz | |
| Moulded | Yes | |
| Inductor Construction | Shielded | |
| Minimum Quality Factor | 20 | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Product Type Multilayer Surface Mount Inductor | ||
Inductance 22μH | ||
Maximum DC Current 5A | ||
Package/Case Surface Mount | ||
Length 10mm | ||
Packaging 500 pieces per 13 in Reel | ||
Automotive Standard AEC-Q200 | ||
Shielding Yes | ||
Minimum Operating Temperature -55°C | ||
Maximum DC Resistance 74mΩ | ||
Maximum Operating Temperature 150°C | ||
Inductance Tolerance 20 % | ||
Series SRP1038A | ||
Core Material Carbonyl Powder | ||
Standards/Approvals RoHS | ||
Depth 3.8mm | ||
Maximum Self Resonant Frequency 8MHz | ||
Moulded Yes | ||
Inductor Construction Shielded | ||
Minimum Quality Factor 20 | ||
- COO (Country of Origin):
- CN
The Bourns Electronics Multilayer Surface Mount Inductor
come with a core material of Carbonyl Powder works with maximum DC current of 5 A and maximum DC resistance of 74 mOhms.
20% tolerance
-55°C to +105°C operating temperature
