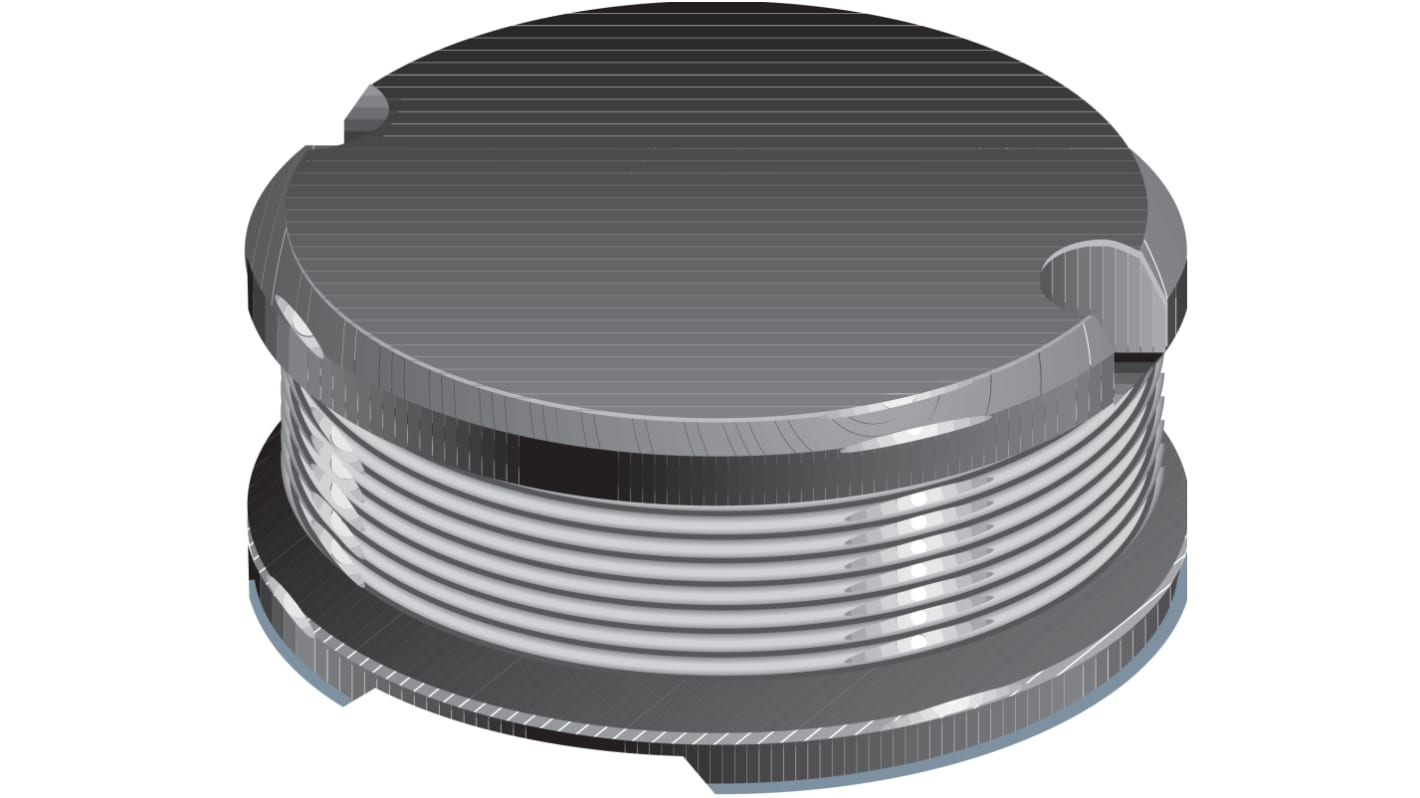

Bourns, SDR1307 Shielded Surface Mount Inductor with a Ferrite Core, 1 mH 10 % 650 mA Idc Q:10
- RS Stock No.:
- 223-1748
- Mfr. Part No.:
- SDR1307-102KL
- Brand:
- Bourns
Bulk discount available
Subtotal (1 tape of 5 units)*
£3.94
(exc. VAT)
£4.73
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 25 left, ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 5 - 45 | £0.788 | £3.94 |
| 50 - 95 | £0.664 | £3.32 |
| 100 - 245 | £0.588 | £2.94 |
| 250 + | £0.546 | £2.73 |
*price indicative
- RS Stock No.:
- 223-1748
- Mfr. Part No.:
- SDR1307-102KL
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Inductance | 1 mH | |
| Product Type | Surface Mount Inductor | |
| Maximum DC Current | 650mA | |
| Length | 13mm | |
| Automotive Standard | No | |
| Shielding | Yes | |
| Minimum Operating Temperature | -40°C | |
| Maximum DC Resistance | 1.6Ω | |
| Inductance Tolerance | 10 % | |
| Series | SDR1307 | |
| Maximum Operating Temperature | 125°C | |
| Core Material | Ferrite | |
| Termination Style | Silver/Nickel/Tin | |
| Standards/Approvals | RoHS | |
| Diameter | 13 mm | |
| Depth | 7mm | |
| Minimum Quality Factor | 10 | |
| Inductor Construction | Shielded | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Inductance 1 mH | ||
Product Type Surface Mount Inductor | ||
Maximum DC Current 650mA | ||
Length 13mm | ||
Automotive Standard No | ||
Shielding Yes | ||
Minimum Operating Temperature -40°C | ||
Maximum DC Resistance 1.6Ω | ||
Inductance Tolerance 10 % | ||
Series SDR1307 | ||
Maximum Operating Temperature 125°C | ||
Core Material Ferrite | ||
Termination Style Silver/Nickel/Tin | ||
Standards/Approvals RoHS | ||
Diameter 13 mm | ||
Depth 7mm | ||
Minimum Quality Factor 10 | ||
Inductor Construction Shielded | ||
- COO (Country of Origin):
- CN
The Bourns Electronics inductor comes with shielded outlet and works with a maximum DC Current of 0.65A.
Ferrite core material
-40°C to 125°C operating temperature
