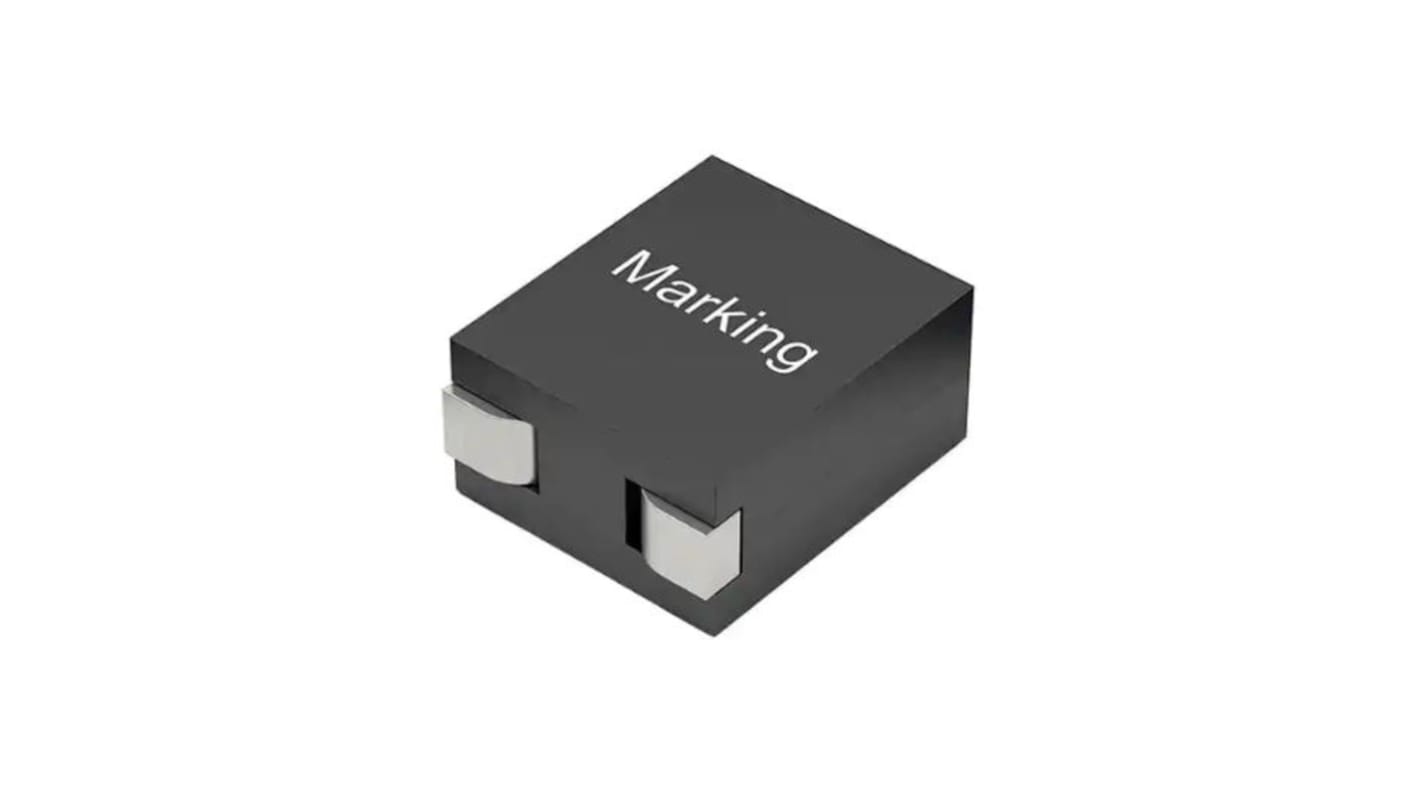

Wurth Elektronik, WE-HCM SMT, 1012 Unshielded Wirewound Surface Mount Inductor with a Manganese Zinc Ferrite Core, 0.15
- RS Stock No.:
- 217-7261
- Mfr. Part No.:
- 74431012015
- Brand:
- Wurth Elektronik
Subtotal (1 unit)*
£1.66
(exc. VAT)
£1.99
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 64 unit(s) shipping from 07 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1.66 |
*price indicative
- RS Stock No.:
- 217-7261
- Mfr. Part No.:
- 74431012015
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Product Type | Wirewound Surface Mount Inductor | |
| Inductance | 0.15μH | |
| Maximum DC Current | 37A | |
| Package/Case | 1012 | |
| Packaging | Tape & Reel | |
| Length | 10mm | |
| Automotive Standard | AEC-Q200 | |
| Shielding | No | |
| Minimum Operating Temperature | -40°C | |
| Maximum DC Resistance | 0.125mΩ | |
| Pin Count | 2 | |
| Inductance Tolerance | 15 % | |
| Series | WE-HCM SMT | |
| Maximum Operating Temperature | 125°C | |
| Termination Style | Surface Mount | |
| Height | 12mm | |
| Standards/Approvals | RoHS, IEC 62024-2-2020 | |
| Depth | 6mm | |
| Core Material | Manganese Zinc Ferrite | |
| Maximum Self Resonant Frequency | 70MHz | |
| Moulded | Yes | |
| Inductor Construction | Shielded | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Product Type Wirewound Surface Mount Inductor | ||
Inductance 0.15μH | ||
Maximum DC Current 37A | ||
Package/Case 1012 | ||
Packaging Tape & Reel | ||
Length 10mm | ||
Automotive Standard AEC-Q200 | ||
Shielding No | ||
Minimum Operating Temperature -40°C | ||
Maximum DC Resistance 0.125mΩ | ||
Pin Count 2 | ||
Inductance Tolerance 15 % | ||
Series WE-HCM SMT | ||
Maximum Operating Temperature 125°C | ||
Termination Style Surface Mount | ||
Height 12mm | ||
Standards/Approvals RoHS, IEC 62024-2-2020 | ||
Depth 6mm | ||
Core Material Manganese Zinc Ferrite | ||
Maximum Self Resonant Frequency 70MHz | ||
Moulded Yes | ||
Inductor Construction Shielded | ||
- COO (Country of Origin):
- CN
The Wurth Elektronik WE-HCM high current flat wire inductor has 0.15μH inductance. It has 37A rated current. The product has RoHS, REACh and halogen free approval.
Inductance 0.15μH
Rated Inductance 0.144μH
Rated Current 37A
