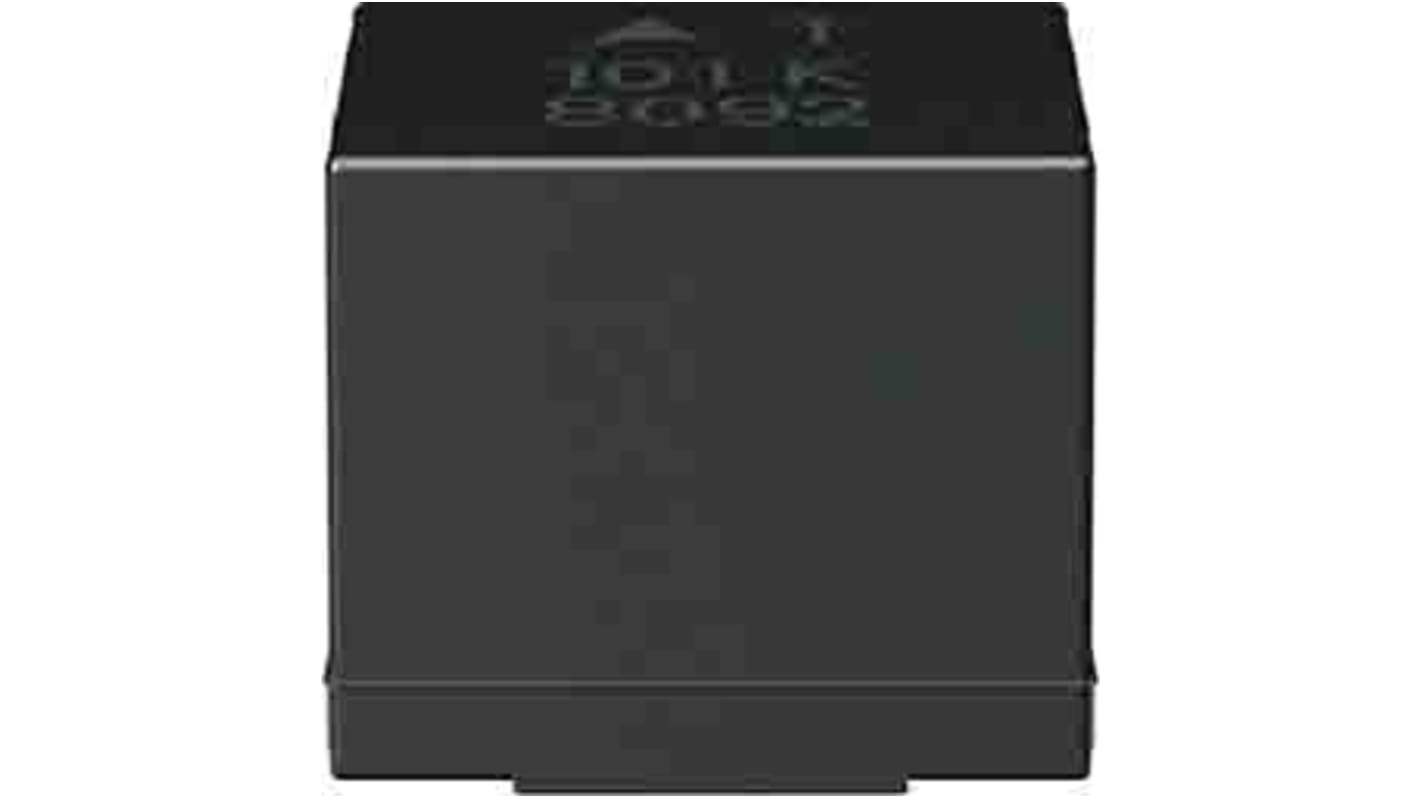

EPCOS, SIMID, 2220 (5650M) Unshielded Wire-wound SMD Inductor with a Ferrite Core, 4.7 μH ±10% Wire-Wound 1.95A Idc Q:15

RS Stock No.:: 212-6012
Mfr. Part No.:: B82442T1472K000
Brand:: EPCOS

EPCOS, SIMID, 2220 (5650M) Unshielded Wire-wound SMD Inductor with a Ferrite Core, 4.7 μH ±10% Wire-Wound 1.95A Idc Q:15

2315 In stock - FREE next working day delivery available

Price Each (On a Reel of 1500)

£0.351

(exc. VAT)

£0.421

(inc. VAT)

Units	Per unit	Per Reel*
1500 +	£0.351	£526.50

*price indicative

RS Stock No.:: 212-6012
Mfr. Part No.:: B82442T1472K000
Brand:: EPCOS

Technical Reference

Datasheet - B82442T1472K000

Legislation and Compliance

COO (Country of Origin):: HU

Product Details

The TDK B42442T SIMID series SMD inductor with ferrite drum core, laser-welded winding and flame-retardant molding. It has inductance value of 4.7 μH. It is mainly used in filtering of supply voltages, coupling, decoupling, DC to DC converters, switch-mode power supplies, automotive electronics, telecommunications, consumer electronics and industrial electronics etc.

Temperature range up to +150 °C
Very high current handling capability
Qualified to AEC-Q200
Suitable for lead-free reflow soldering as referenced in JEDEC J-STD 020D
RoHS-compatible
Halogen-free

Specifications

Attribute	Value
Inductance	4.7 μH
Maximum DC Current	1.95A
Package/Case	2220 (5650M)
Length	5.6mm
Depth	5mm
Automotive Standard	AEC-Q200
Height	5mm
Dimensions	5.6 x 5 x 5mm
Shielded	No
Tolerance	±10%
Maximum DC Resistance	73mΩ
Series	SIMID
Core Material	Ferrite
Maximum Self Resonant Frequency	30MHz
Minimum Quality Factor	15
Moulded	Yes
Maximum Operating Temperature	+150°C
Inductor Construction	Wire-Wound
Minimum Operating Temperature	-55°C
