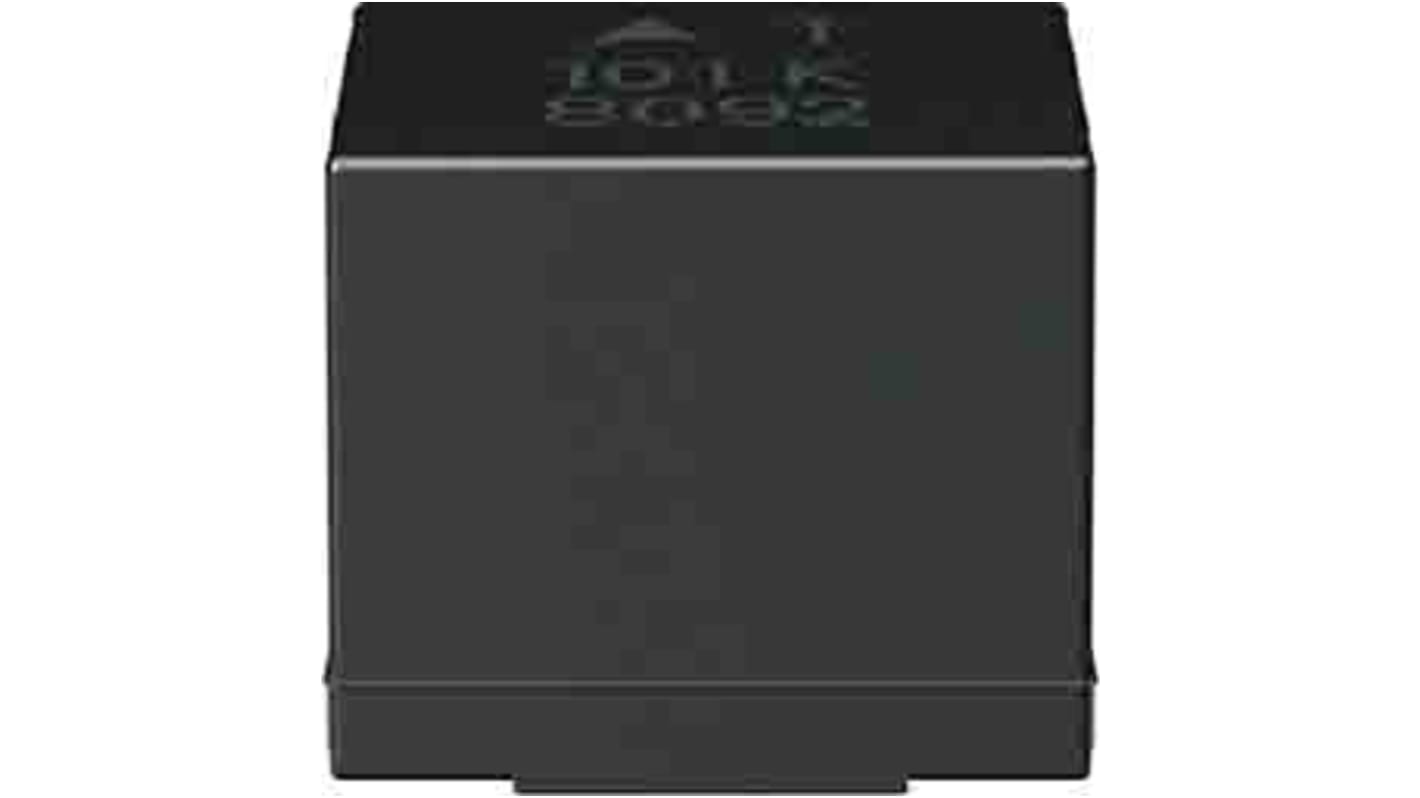

EPCOS, SIMID, 2220 (5650M) Unshielded Wire-wound SMD Inductor with a Ferrite Core, 2.2 mH ±10% Wire-Wound 100mA Idc Q:30
- RS Stock No.:
- 212-5989P
- Mfr. Part No.:
- B82442T1225K000
- Brand:
- EPCOS
Bulk discount available
Subtotal 50 units (supplied on a reel)*. Quantities below 150 on continuous strip
£31.00
(exc. VAT)
£37.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 04 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 50 - 95 | £0.62 |
| 100 - 245 | £0.486 |
| 250 - 495 | £0.422 |
| 500 + | £0.342 |
*price indicative
- RS Stock No.:
- 212-5989P
- Mfr. Part No.:
- B82442T1225K000
- Brand:
- EPCOS
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EPCOS | |
| Inductance | 2.2 mH | |
| Maximum DC Current | 100mA | |
| Package/Case | 2220 (5650M) | |
| Length | 5.6mm | |
| Automotive Standard | AEC-Q200 | |
| Depth | 5mm | |
| Height | 5mm | |
| Dimensions | 5.6 x 5 x 5mm | |
| Shielded | No | |
| Tolerance | ±10% | |
| Maximum DC Resistance | 22.5Ω | |
| Series | SIMID | |
| Core Material | Ferrite | |
| Maximum Self Resonant Frequency | 1.2MHz | |
| Maximum Operating Temperature | +150°C | |
| Inductor Construction | Wire-Wound | |
| Minimum Quality Factor | 30 | |
| Moulded | Yes | |
| Minimum Operating Temperature | -55°C | |
Select all | ||
|---|---|---|
Brand EPCOS | ||
Inductance 2.2 mH | ||
Maximum DC Current 100mA | ||
Package/Case 2220 (5650M) | ||
Length 5.6mm | ||
Automotive Standard AEC-Q200 | ||
Depth 5mm | ||
Height 5mm | ||
Dimensions 5.6 x 5 x 5mm | ||
Shielded No | ||
Tolerance ±10% | ||
Maximum DC Resistance 22.5Ω | ||
Series SIMID | ||
Core Material Ferrite | ||
Maximum Self Resonant Frequency 1.2MHz | ||
Maximum Operating Temperature +150°C | ||
Inductor Construction Wire-Wound | ||
Minimum Quality Factor 30 | ||
Moulded Yes | ||
Minimum Operating Temperature -55°C | ||
