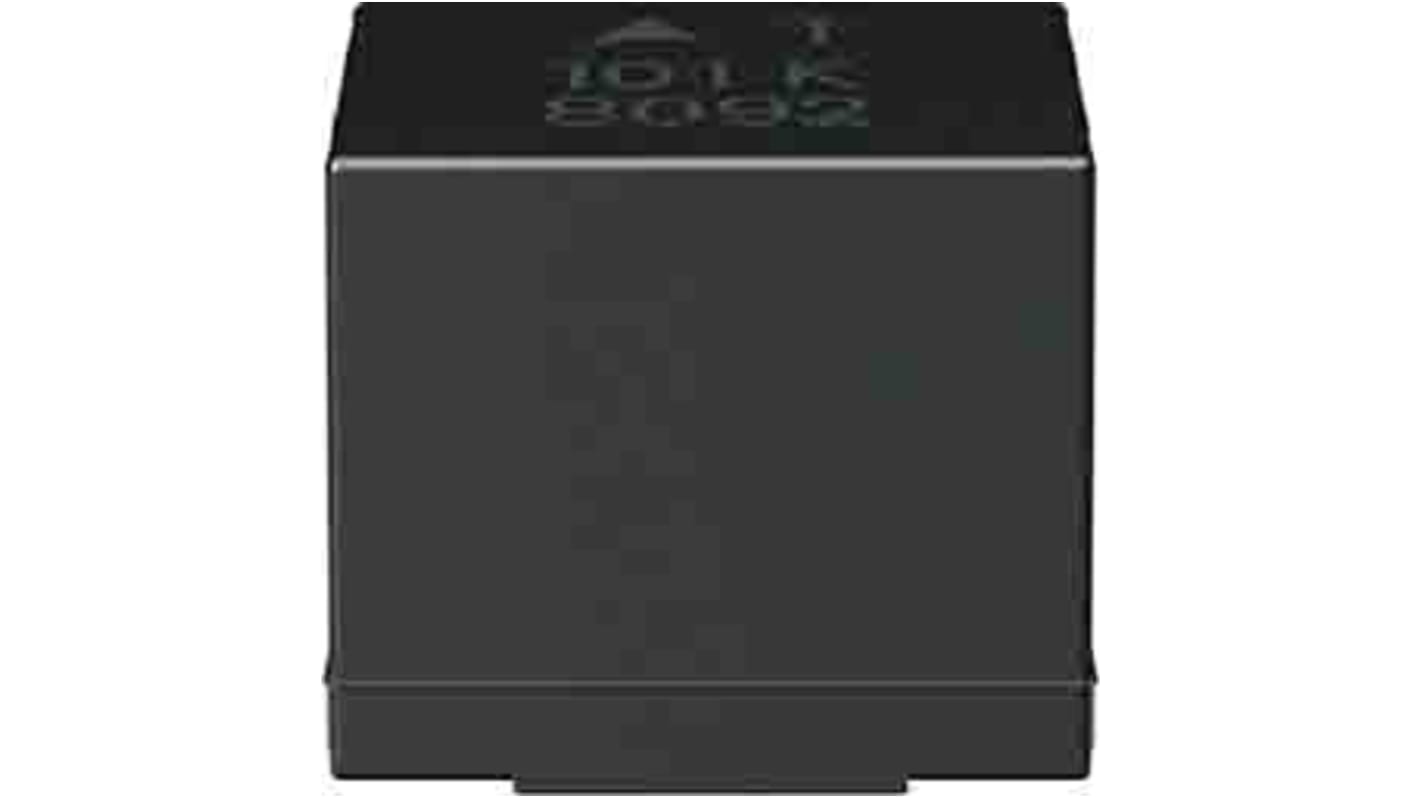

TDK, SIMID, 2220 Unshielded Wirewound Surface Mount Inductor with a Ferrite Core, 150 μH ±10 % 410 mA Idc Q:20
- RS Stock No.:
- 212-5972
- Mfr. Part No.:
- B82442T1154K000
- Brand:
- TDK
Bulk discount available
View bulk pricing optionsSubtotal (1 tape of 5 units)*
£2.90
(exc. VAT)
£3.50
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 65 unit(s) shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 5 - 45 | £0.58 | £2.90 |
| 50 - 95 | £0.512 | £2.56 |
| 100 - 245 | £0.40 | £2.00 |
| 250 - 495 | £0.348 | £1.74 |
| 500 + | £0.338 | £1.69 |
*price indicative
- RS Stock No.:
- 212-5972
- Mfr. Part No.:
- B82442T1154K000
- Brand:
- TDK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK | |
| Product Type | Wirewound Surface Mount Inductor | |
| Inductance | 150μH | |
| Maximum DC Current | 410mA | |
| Package/Case | 2220 | |
| Packaging | Tape & Reel | |
| Length | 5.6mm | |
| Automotive Standard | AEC-Q200 | |
| Shielding | No | |
| Maximum DC Resistance | 1.5Ω | |
| Minimum Operating Temperature | -55°C | |
| Series | SIMID | |
| Maximum Operating Temperature | 150°C | |
| Inductance Tolerance | ±10 % | |
| Standards/Approvals | RoHS, JEDEC J-STD 020D, AEC-Q200 | |
| Core Material | Ferrite | |
| Termination Style | Solder | |
| Height | 5mm | |
| Depth | 5mm | |
| Maximum Self Resonant Frequency | 4.6MHz | |
| Minimum Quality Factor | 20 | |
| Moulded | Yes | |
| Inductor Construction | Wirewound | |
| Select all | ||
|---|---|---|
Brand TDK | ||
Product Type Wirewound Surface Mount Inductor | ||
Inductance 150μH | ||
Maximum DC Current 410mA | ||
Package/Case 2220 | ||
Packaging Tape & Reel | ||
Length 5.6mm | ||
Automotive Standard AEC-Q200 | ||
Shielding No | ||
Maximum DC Resistance 1.5Ω | ||
Minimum Operating Temperature -55°C | ||
Series SIMID | ||
Maximum Operating Temperature 150°C | ||
Inductance Tolerance ±10 % | ||
Standards/Approvals RoHS, JEDEC J-STD 020D, AEC-Q200 | ||
Core Material Ferrite | ||
Termination Style Solder | ||
Height 5mm | ||
Depth 5mm | ||
Maximum Self Resonant Frequency 4.6MHz | ||
Minimum Quality Factor 20 | ||
Moulded Yes | ||
Inductor Construction Wirewound | ||
- COO (Country of Origin):
- HU
The TDK B42442T SIMID series SMD inductor with ferrite drum core, laser-welded winding and flame-retardant molding. It has inductance value of 150 μH. It is mainly used in filtering of supply voltages, coupling, decoupling, DC to DC converters, switch-mode power supplies, automotive electronics, telecommunications, consumer electronics and industrial electronics etc.
Temperature range up to +150 °C
Very high current handling capability
Qualified to AEC-Q200
Suitable for lead-free reflow soldering as referenced in JEDEC J-STD 020D
RoHS-compatible
Halogen-free
