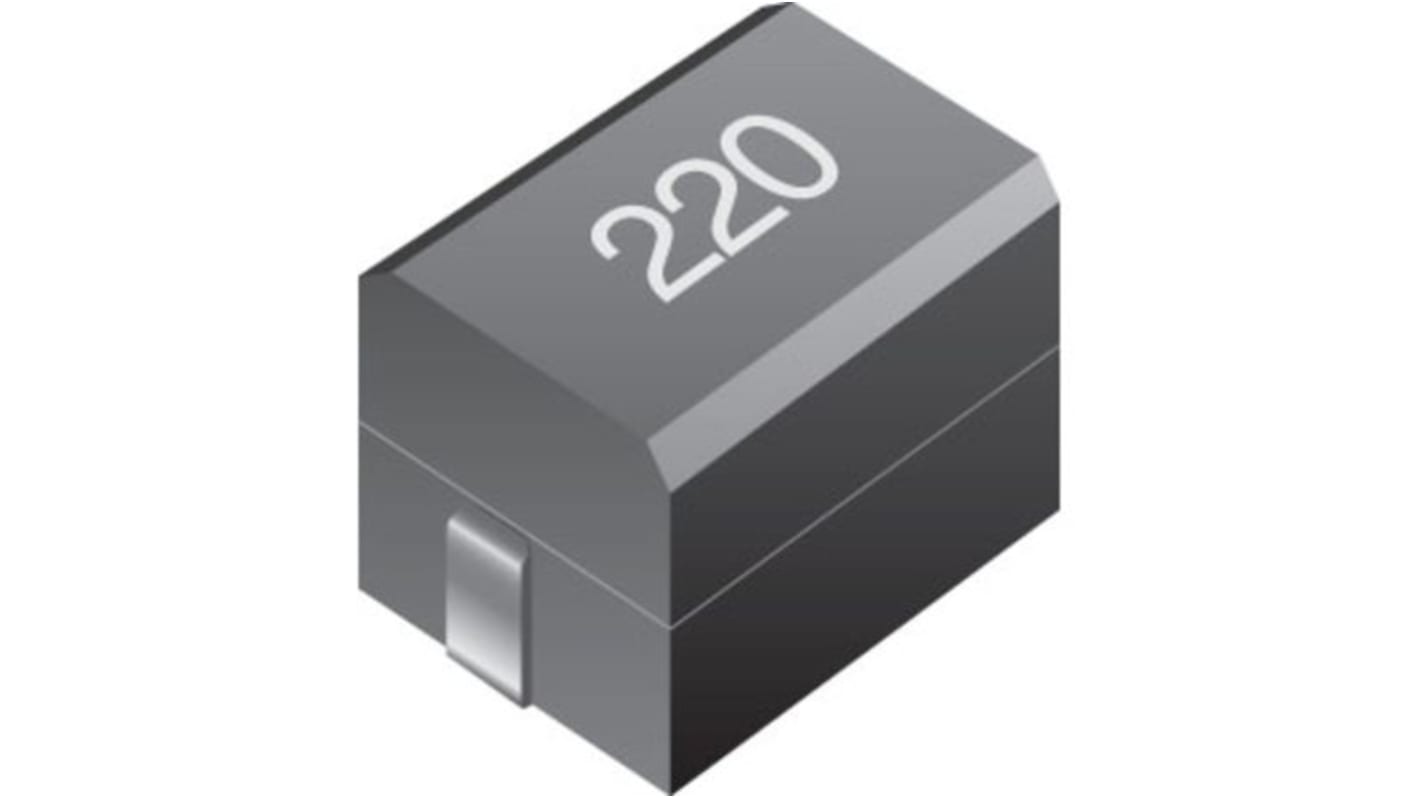

Bourns, CC453232A, 1812 Multilayer Surface Mount Inductor with a Ferrite Core, 1000 μH Ferrite Core ±10 % 90 mA Idc Q:20

View all Surface Mount Inductors
Bulk discount available

Subtotal (1 tape of 10 units)*

£3.31

(exc. VAT)

£3.97

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 360 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tape*
10 - 40£0.331£3.31
50 - 90£0.257£2.57
100 - 190£0.191£1.91
200 +£0.158£1.58

*price indicative

Packaging Options:
RS Stock No.:
212-0609
Mfr. Part No.:
CC453232A-102KL
Brand:
Bourns
Find similar products by selecting one or more attributes.
Select all

Brand

Bourns

Product Type

Multilayer Surface Mount Inductor

Inductance

1000 μH

Maximum DC Current

90mA

Package/Case

1812

Packaging

Tape & Reel

Length

4.5mm

Automotive Standard

AEC-Q200

Maximum DC Resistance

40Ω

Minimum Operating Temperature

-40°C

Series

CC453232A

Maximum Operating Temperature

150°C

Inductance Tolerance

±10 %

Depth

3.2mm

Core Material

Ferrite

Height

3.2mm

Termination Style

Solder

Standards/Approvals

RoHS

Maximum Self Resonant Frequency

2MHz

Minimum Quality Factor

20

Inductor Construction

Ferrite Core

COO (Country of Origin):
CN
The Bourns Electronics Chip Inductors comes with Ferrite core material, Epoxy resin enclosure and stannum terminal material. This inductor is resistance to mechanical shock and pressure and has a tight dimension tolerances for automatic placement.

Inductance drops 10% at saturation current

-40°C to +150°C operating temperature

Enameled copper wire
