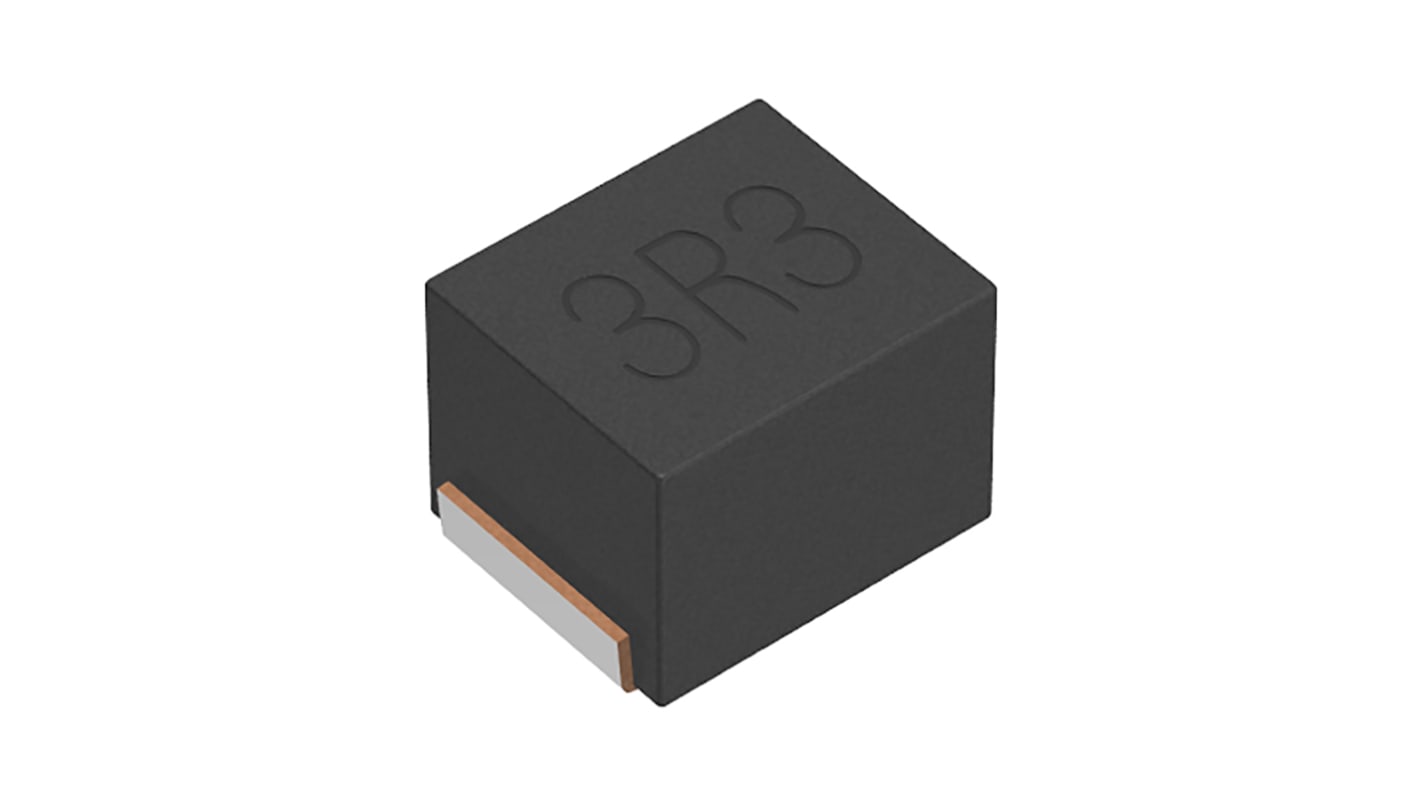

TDK, NLFV-EF, 1210 (3225M) Shielded Wire-wound SMD Inductor with a Ferrite Core, 15 μH ±10% Wire-Wound 140mA Idc
- RS Stock No.:
- 185-8356
- Mfr. Part No.:
- NLFV32T-150K-EF
- Brand:
- TDK
Subtotal (1 tape of 10 units)*
£1.78
(exc. VAT)
£2.14
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,380 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
---|---|---|
10 + | £0.178 | £1.78 |
*price indicative
- RS Stock No.:
- 185-8356
- Mfr. Part No.:
- NLFV32T-150K-EF
- Brand:
- TDK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TDK | |
Inductance | 15 μH | |
Maximum DC Current | 140mA | |
Package/Case | 1210 (3225M) | |
Length | 3.2mm | |
Depth | 2.5mm | |
Height | 2.2mm | |
Dimensions | 3.2 x 2.5 x 2.2mm | |
Shielded | Yes | |
Tolerance | ±10% | |
Maximum DC Resistance | 360mΩ | |
Series | NLFV-EF | |
Core Material | Ferrite | |
Maximum Self Resonant Frequency | 2.52MHz | |
Inductor Construction | Wire-Wound | |
Maximum Operating Temperature | +105°C | |
Minimum Operating Temperature | -40°C | |
Moulded | Yes | |
Select all | ||
---|---|---|
Brand TDK | ||
Inductance 15 μH | ||
Maximum DC Current 140mA | ||
Package/Case 1210 (3225M) | ||
Length 3.2mm | ||
Depth 2.5mm | ||
Height 2.2mm | ||
Dimensions 3.2 x 2.5 x 2.2mm | ||
Shielded Yes | ||
Tolerance ±10% | ||
Maximum DC Resistance 360mΩ | ||
Series NLFV-EF | ||
Core Material Ferrite | ||
Maximum Self Resonant Frequency 2.52MHz | ||
Inductor Construction Wire-Wound | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature -40°C | ||
Moulded Yes | ||
- COO (Country of Origin):
- JP
Resin mold type wound inductor for decoupling circuits
Magnetic shield type containing ferrite powder in the exterior mold resin
Operating temperature range: –40 to +105°C (including self-temperature rise)
Application
Smart meters, AV equipment, xDSL, electronic devices for communications infrastructure such as mobile base stations, industrial equipment, other
Magnetic shield type containing ferrite powder in the exterior mold resin
Operating temperature range: –40 to +105°C (including self-temperature rise)
Application
Smart meters, AV equipment, xDSL, electronic devices for communications infrastructure such as mobile base stations, industrial equipment, other
