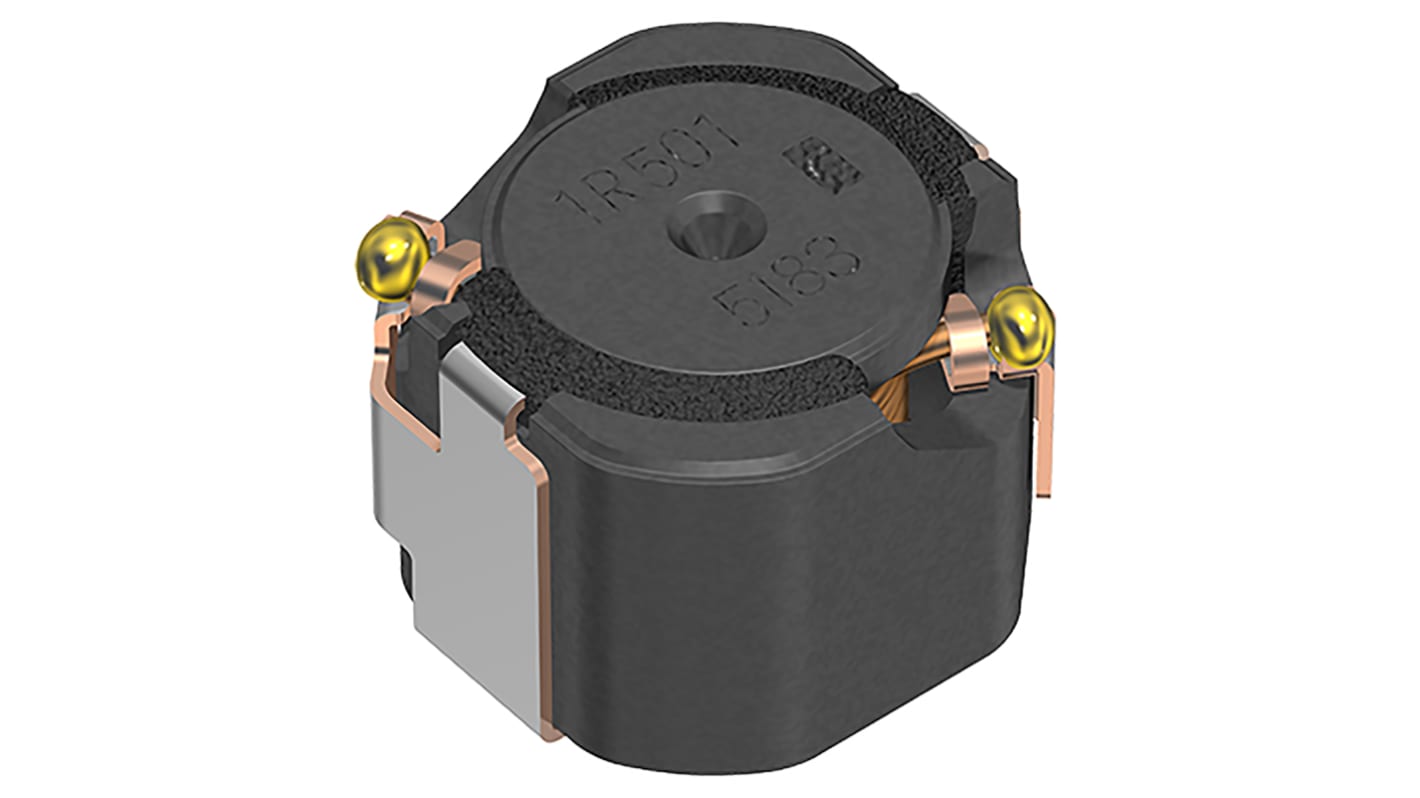

EPCOS, CLF6045NI-D, 6045 Shielded Wirewound Surface Mount Inductor with a Ferrite Core, 33 μH ±20 % 1.6 A Idc
- RS Stock No.:
- 185-8252
- Mfr. Part No.:
- B82562N4333M000
- Brand:
- EPCOS
Bulk discount available
Subtotal (1 tape of 5 units)*
£3.43
(exc. VAT)
£4.115
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 35 unit(s) shipping from 05 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 5 - 20 | £0.686 | £3.43 |
| 25 - 45 | £0.638 | £3.19 |
| 50 - 95 | £0.594 | £2.97 |
| 100 - 195 | £0.568 | £2.84 |
| 200 + | £0.508 | £2.54 |
*price indicative
- RS Stock No.:
- 185-8252
- Mfr. Part No.:
- B82562N4333M000
- Brand:
- EPCOS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EPCOS | |
| Product Type | Wirewound Surface Mount Inductor | |
| Inductance | 33 μH | |
| Maximum DC Current | 1.6A | |
| Package/Case | 6045 | |
| Packaging | Tape & Reel | |
| Length | 6.3mm | |
| Automotive Standard | AEC-Q200 | |
| Shielding | Yes | |
| Maximum DC Resistance | 100mΩ | |
| Minimum Operating Temperature | -55°C | |
| Series | CLF6045NI-D | |
| Maximum Operating Temperature | 150°C | |
| Inductance Tolerance | ±20 % | |
| Termination Style | Surface Mount | |
| Core Material | Ferrite | |
| Diameter | 6 mm | |
| Standards/Approvals | RoHS | |
| Height | 4.5mm | |
| Depth | 6mm | |
| Maximum Self Resonant Frequency | 100kHz | |
| Inductor Construction | Shielded | |
| Select all | ||
|---|---|---|
Brand EPCOS | ||
Product Type Wirewound Surface Mount Inductor | ||
Inductance 33 μH | ||
Maximum DC Current 1.6A | ||
Package/Case 6045 | ||
Packaging Tape & Reel | ||
Length 6.3mm | ||
Automotive Standard AEC-Q200 | ||
Shielding Yes | ||
Maximum DC Resistance 100mΩ | ||
Minimum Operating Temperature -55°C | ||
Series CLF6045NI-D | ||
Maximum Operating Temperature 150°C | ||
Inductance Tolerance ±20 % | ||
Termination Style Surface Mount | ||
Core Material Ferrite | ||
Diameter 6 mm | ||
Standards/Approvals RoHS | ||
Height 4.5mm | ||
Depth 6mm | ||
Maximum Self Resonant Frequency 100kHz | ||
Inductor Construction Shielded | ||
- COO (Country of Origin):
- DE
High mechanical robustness
High rated current, low DC resistance
Temperature range up to +150 °C
Suitable for lead-free reflow soldering
Applications
DC/DC converters
Automotive electronics
Filtering of supply voltages
Coupling, decoupling
