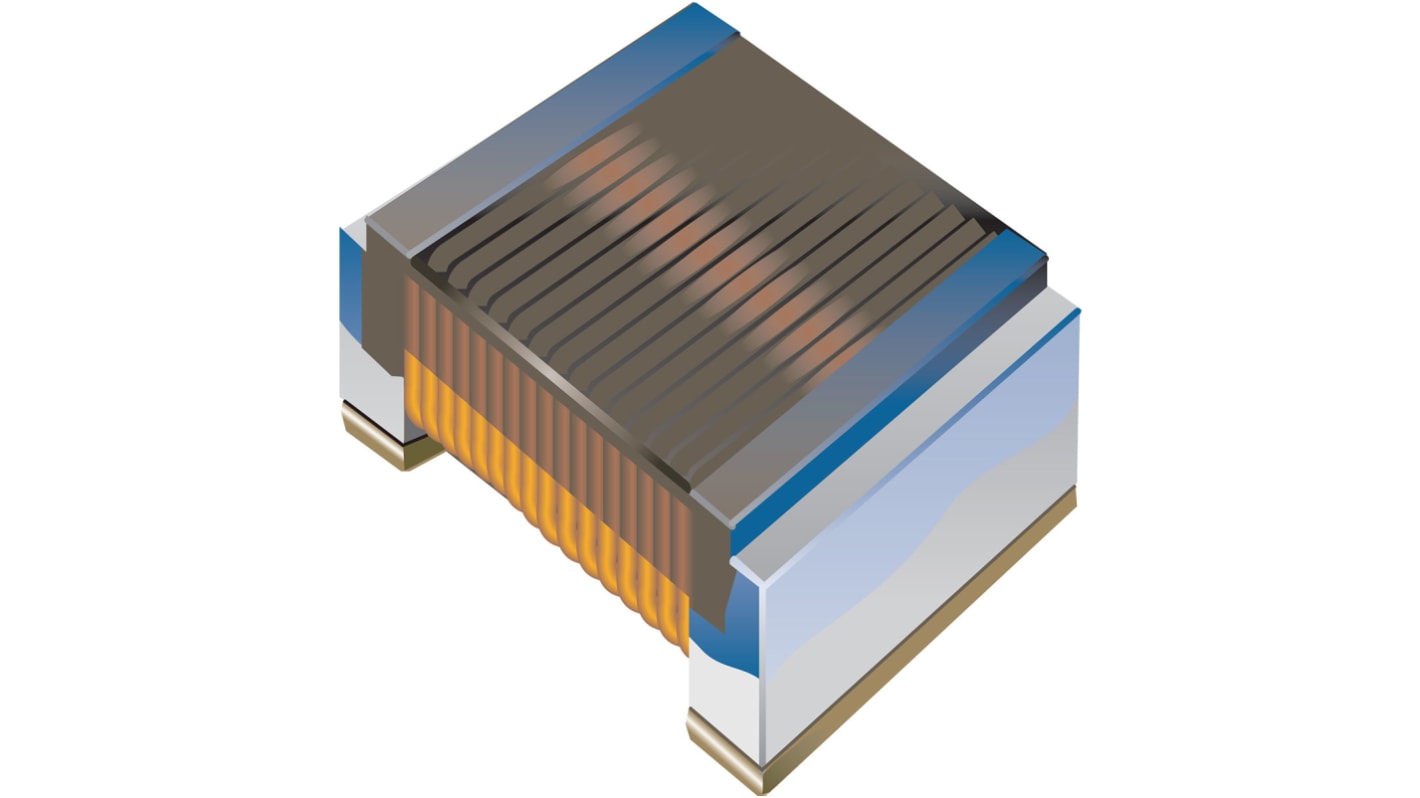

Bourns, CW161009A, 0603 Unshielded Wirewound Surface Mount Inductor with a Ceramic Core, 56 nH ±5 % 600 mA Idc Q:32
- RS Stock No.:
- 183-8622
- Mfr. Part No.:
- CW161009A-56NJ
- Brand:
- Bourns
Bulk discount available
Subtotal (1 reel of 100 units)*
£5.90
(exc. VAT)
£7.10
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 3,100 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 100 - 400 | £0.059 | £5.90 |
| 500 - 900 | £0.054 | £5.40 |
| 1000 - 1900 | £0.051 | £5.10 |
| 2000 + | £0.048 | £4.80 |
*price indicative
- RS Stock No.:
- 183-8622
- Mfr. Part No.:
- CW161009A-56NJ
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Inductance | 56nH | |
| Product Type | Wirewound Surface Mount Inductor | |
| Maximum DC Current | 600mA | |
| Package/Case | 0603 | |
| Packaging | Tape & Reel | |
| Length | 1.65mm | |
| Automotive Standard | AEC-Q200 | |
| Shielding | No | |
| Maximum DC Resistance | 250mΩ | |
| Minimum Operating Temperature | -40°C | |
| Inductance Tolerance | ±5 % | |
| Series | CW161009A | |
| Maximum Operating Temperature | 125°C | |
| Height | 0.9mm | |
| Standards/Approvals | RoHS | |
| Termination Style | Surface Mount | |
| Depth | 1.15mm | |
| Core Material | Ceramic | |
| Maximum Self Resonant Frequency | 1.9GHz | |
| Minimum Quality Factor | 32 | |
| Inductor Construction | Wirewound | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Inductance 56nH | ||
Product Type Wirewound Surface Mount Inductor | ||
Maximum DC Current 600mA | ||
Package/Case 0603 | ||
Packaging Tape & Reel | ||
Length 1.65mm | ||
Automotive Standard AEC-Q200 | ||
Shielding No | ||
Maximum DC Resistance 250mΩ | ||
Minimum Operating Temperature -40°C | ||
Inductance Tolerance ±5 % | ||
Series CW161009A | ||
Maximum Operating Temperature 125°C | ||
Height 0.9mm | ||
Standards/Approvals RoHS | ||
Termination Style Surface Mount | ||
Depth 1.15mm | ||
Core Material Ceramic | ||
Maximum Self Resonant Frequency 1.9GHz | ||
Minimum Quality Factor 32 | ||
Inductor Construction Wirewound | ||
- COO (Country of Origin):
- MY
Ceramic core provides stable electrical characteristics
High self-resonant frequency
Halogen free
