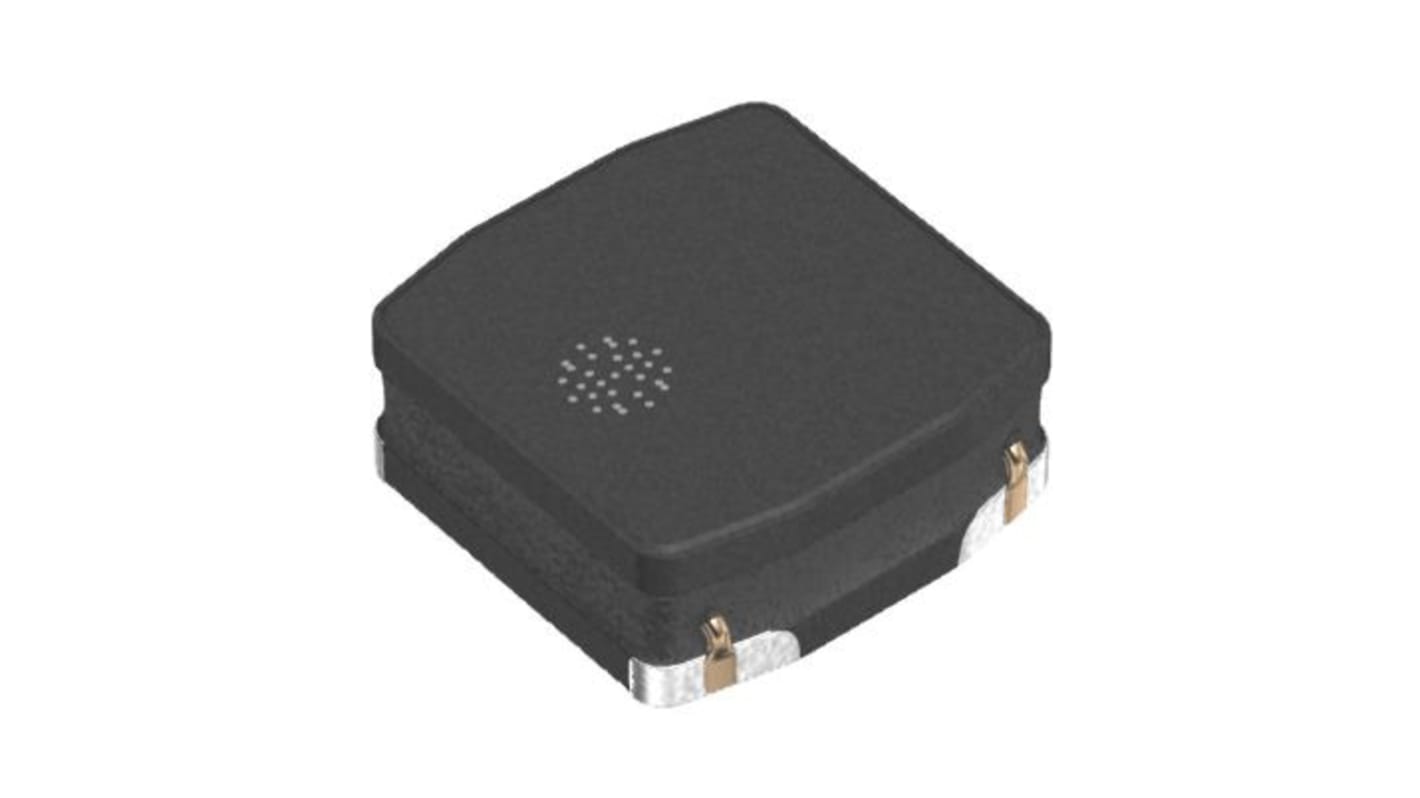

TDK, VLS-HBX, 3012 Shielded Wirewound Surface Mount Inductor with a Metal Core, 6.8 μH ±20/±30 % 1.66 A Idc
- RS Stock No.:
- 181-4963
- Mfr. Part No.:
- VLS3012HBX-6R8M
- Brand:
- TDK
Subtotal (1 reel of 2000 units)*
£356.00
(exc. VAT)
£428.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2000 + | £0.178 | £356.00 |
*price indicative
- RS Stock No.:
- 181-4963
- Mfr. Part No.:
- VLS3012HBX-6R8M
- Brand:
- TDK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK | |
| Product Type | Wirewound Surface Mount Inductor | |
| Inductance | 6.8μH | |
| Maximum DC Current | 1.66A | |
| Package/Case | 3012 | |
| Length | 3mm | |
| Automotive Standard | No | |
| Shielding | Yes | |
| Minimum Operating Temperature | -40°C | |
| Maximum DC Resistance | 285mΩ | |
| Series | VLS-HBX | |
| Inductance Tolerance | ±20/±30 % | |
| Maximum Operating Temperature | 105°C | |
| Core Material | Metal | |
| Termination Style | Surface Mount | |
| Height | 1.2mm | |
| Depth | 3mm | |
| Standards/Approvals | SVHC-free, RoHS, REACH, Lead Free, Halogen Free | |
| Inductor Construction | Wirewound | |
| Select all | ||
|---|---|---|
Brand TDK | ||
Product Type Wirewound Surface Mount Inductor | ||
Inductance 6.8μH | ||
Maximum DC Current 1.66A | ||
Package/Case 3012 | ||
Length 3mm | ||
Automotive Standard No | ||
Shielding Yes | ||
Minimum Operating Temperature -40°C | ||
Maximum DC Resistance 285mΩ | ||
Series VLS-HBX | ||
Inductance Tolerance ±20/±30 % | ||
Maximum Operating Temperature 105°C | ||
Core Material Metal | ||
Termination Style Surface Mount | ||
Height 1.2mm | ||
Depth 3mm | ||
Standards/Approvals SVHC-free, RoHS, REACH, Lead Free, Halogen Free | ||
Inductor Construction Wirewound | ||
- COO (Country of Origin):
- CN
Magnetic shield type wound inductor for power circuits using a metallic magnetic material.
High magnetic shield construction and compatible with high-density mounting.
Larger current was achieved by the metallic magnetic material.
APPLICATION
HDD, SSD, DVC, DSC, mobile display panels, smart phones, tablet terminal, portable game devices, compact power supply modules, other
Application guides: Smart phones/tablets
