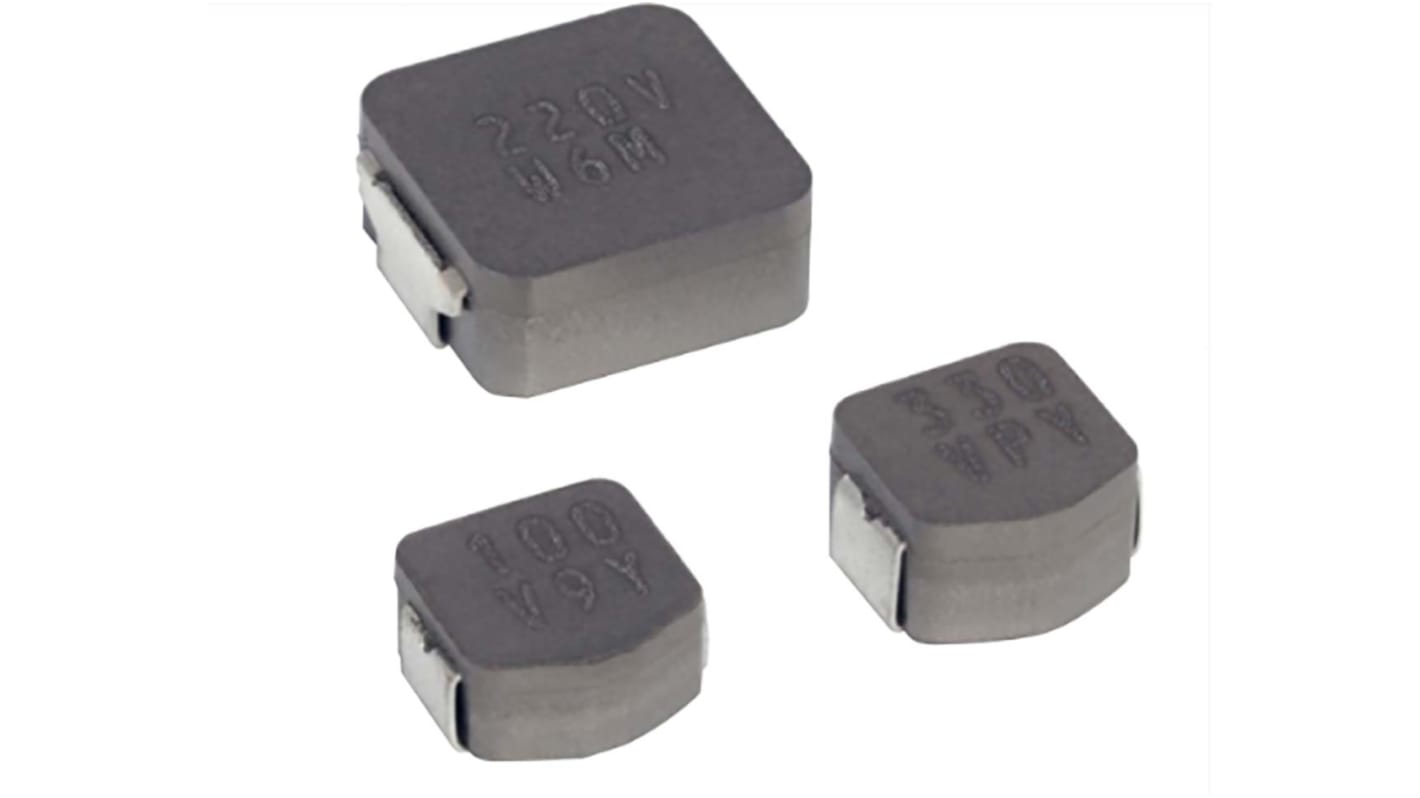

KEMET, MPLCV, 0645 Shielded Surface Mount Inductor with a Metal Composite Core, 10 μH ±20 % 6.5 A Idc
- RS Stock No.:
- 180-9268
- Mfr. Part No.:
- MPLCV0645L100
- Brand:
- KEMET
Bulk discount available
Subtotal (1 tape of 5 units)*
£8.85
(exc. VAT)
£10.60
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 80 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 5 - 245 | £1.77 | £8.85 |
| 250 - 495 | £1.014 | £5.07 |
| 500 + | £0.988 | £4.94 |
*price indicative
- RS Stock No.:
- 180-9268
- Mfr. Part No.:
- MPLCV0645L100
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Inductance | 10 μH | |
| Product Type | Surface Mount Inductor | |
| Maximum DC Current | 6.5A | |
| Package/Case | 0645 | |
| Length | 7.9mm | |
| Packaging | Reel | |
| Automotive Standard | AEC-Q200 | |
| Shielding | Yes | |
| Minimum Operating Temperature | -55°C | |
| Maximum DC Resistance | 45mΩ | |
| Maximum Operating Temperature | 155°C | |
| Series | MPLCV | |
| Inductance Tolerance | ±20 % | |
| Depth | 6.7mm | |
| Height | 4.5mm | |
| Termination Style | Surface Mount | |
| Standards/Approvals | No | |
| Core Material | Metal Composite | |
| Inductor Construction | Shielded | |
| Select all | ||
|---|---|---|
Brand KEMET | ||
Inductance 10 μH | ||
Product Type Surface Mount Inductor | ||
Maximum DC Current 6.5A | ||
Package/Case 0645 | ||
Length 7.9mm | ||
Packaging Reel | ||
Automotive Standard AEC-Q200 | ||
Shielding Yes | ||
Minimum Operating Temperature -55°C | ||
Maximum DC Resistance 45mΩ | ||
Maximum Operating Temperature 155°C | ||
Series MPLCV | ||
Inductance Tolerance ±20 % | ||
Depth 6.7mm | ||
Height 4.5mm | ||
Termination Style Surface Mount | ||
Standards/Approvals No | ||
Core Material Metal Composite | ||
Inductor Construction Shielded | ||
- COO (Country of Origin):
- CN
The KEMET MPLCV metal composite inductors are ideal for use in DC to DC switching power supplies for automotive applications. The combination of composite core material and round wire allows these inductors to be used in applications with high switching frequencies and Where efficiency is important.
Metal composite powder
Operating temperature up to +155°C
High current
Low DCR
Low accoustic noise
Low magnetic flux leakage
Applications
Automotive ECU applications
LED head lights
Meter cluster panels
Head-up displays (HUD)
Electric water pumps (EWP)
Electric oil pumps (EOP)
Electric power steering (EPS)
