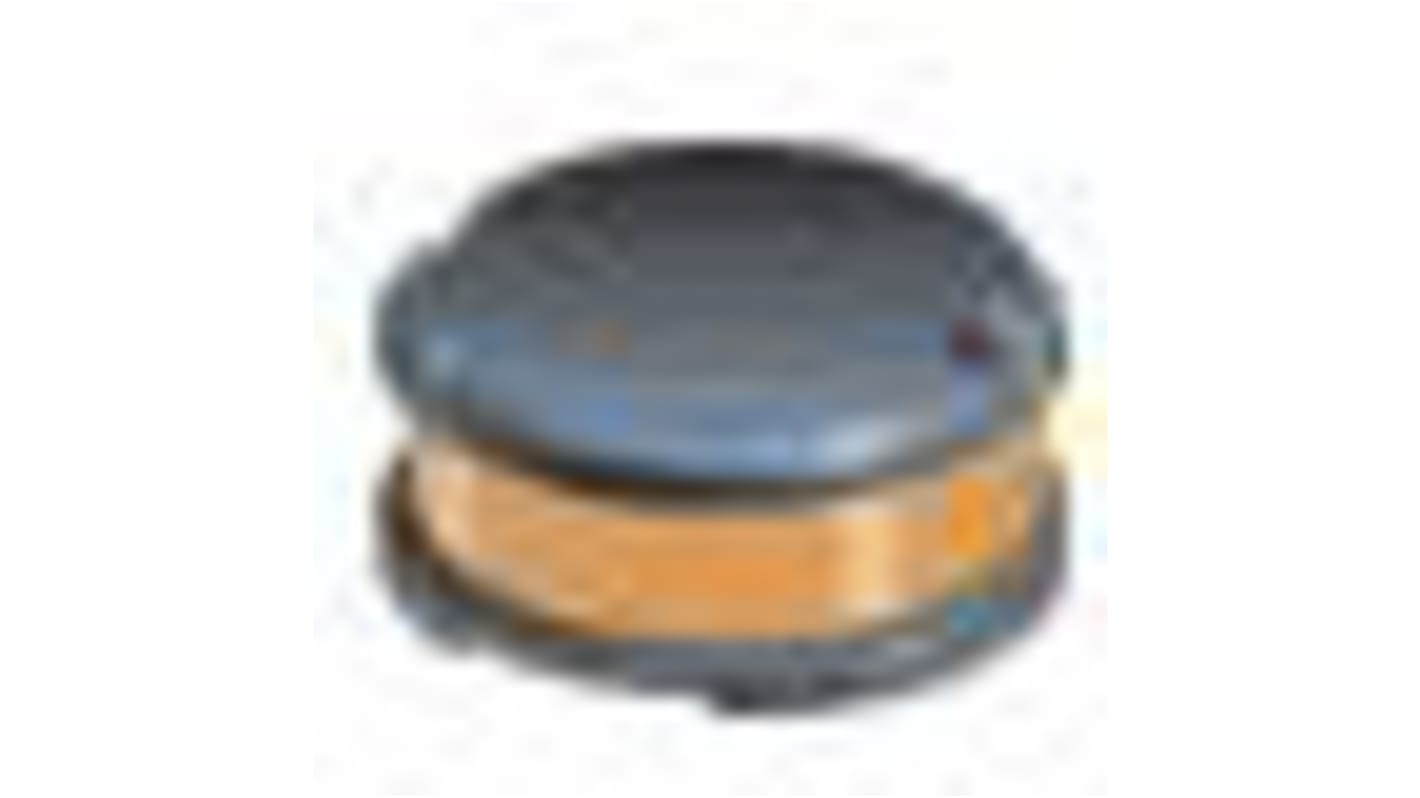

Bourns, SDR0805, 0805 Unshielded Wire-wound SMD Inductor with a Ferrite DR Core, 2.2 mH ±10% Ferrite Core 130mA Idc Q:29

View all Surface Mount Inductors

Subtotal (1 reel of 1000 units)*

£300.00

(exc. VAT)

£360.00

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
1000 +£0.30£300.00

*price indicative

RS Stock No.:
180-8890
Mfr. Part No.:
SDR0805-222KL
Brand:
Bourns
Find similar products by selecting one or more attributes.
Select all

Brand

Bourns

Inductance

2.2 mH

Maximum DC Current

130mA

Package/Case

0805

Length

7.8mm

Depth

7.8mm

Height

5.3mm

Diameter

7.8mm

Dimensions

7.8 x 7.8 x 5.3mm

Shielded

No

Tolerance

±10%

Maximum DC Resistance

10Ω

Series

SDR0805

Core Material

Ferrite DR

Maximum Self Resonant Frequency

2MHz

Minimum Quality Factor

29

Inductor Construction

Ferrite Core

Maximum Operating Temperature

+125°C

Minimum Operating Temperature

-40°C

Available in E12 series
Small design of only 7.8 mm max. diameter
Applications
Input/output of DC/DC converters
Power supplies for:
- Portable communications equipment
- Camcorders
- LCD TVs
- CD players
