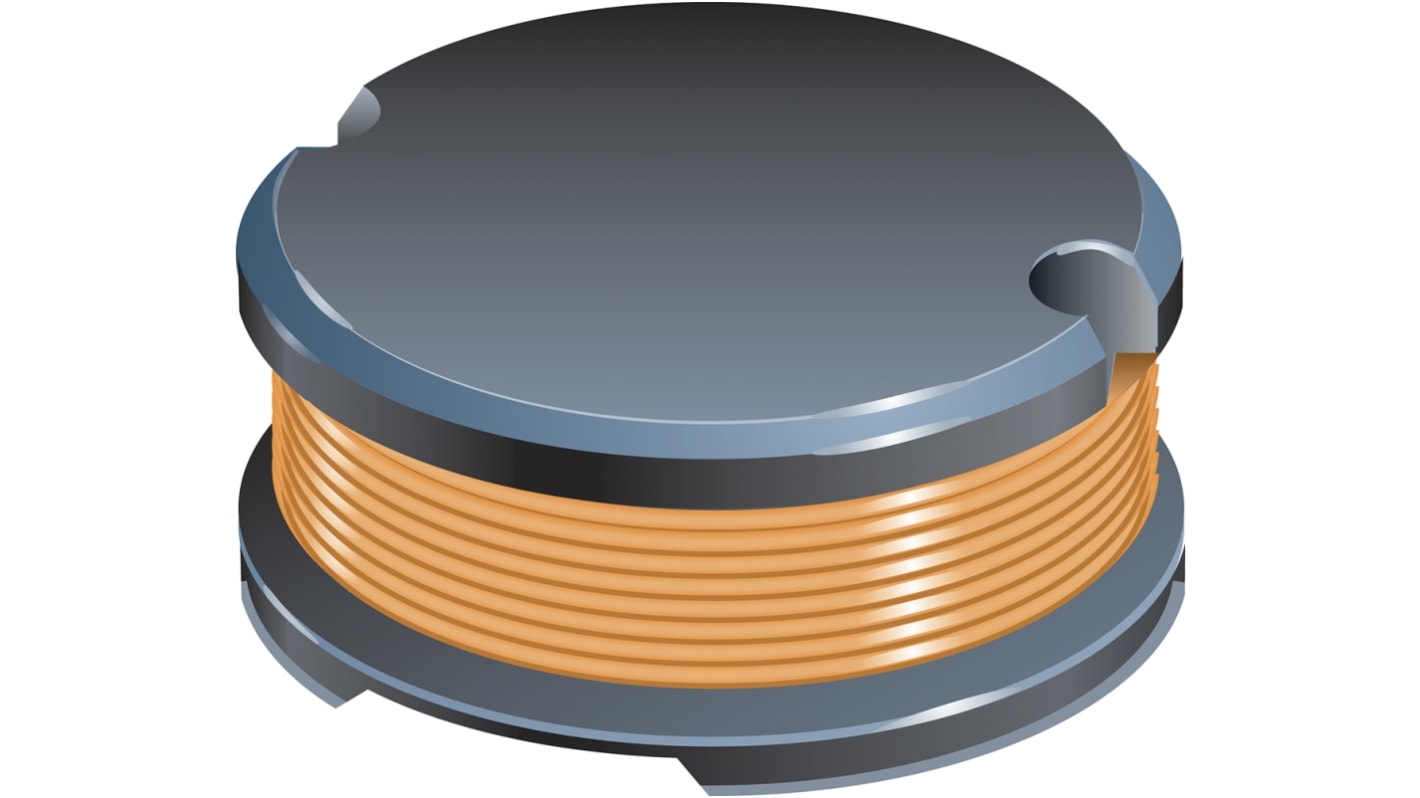

Bourns, SDR0403, SMD Wire-wound SMD Inductor with a Ferrite DR Core, 330 μH ±10% Ferrite Core 170mA Idc Q:40

View all Surface Mount Inductors
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
172-9613
Mfr. Part No.:
SDR0403-331KL
Brand:
Bourns
Find similar products by selecting one or more attributes.
Select all

Brand

Bourns

Inductance

330 μH

Maximum DC Current

170mA

Package/Case

SMD

Length

4.5mm

Depth

4mm

Height

3.2mm

Diameter

4.5mm

Dimensions

4.5 Dia. x 3.2mm

Tolerance

±10%

Maximum DC Resistance

6Ω

Series

SDR0403

Core Material

Ferrite DR

Maximum Self Resonant Frequency

4MHz

Minimum Quality Factor

40

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+125°C

Inductor Construction

Ferrite Core

COO (Country of Origin):
CN

SDR0403 Series Wire Wound Chokes


Available in E12 series
Low profile of only 3.2mm
Low inductance values
RoHS compliant
Applications in input/output of DC/DC Converters, Power Supplies

Available in E12 series
Low profile of only 3.2 mm
Low inductance values
Applications
Input/output of DC/DC converters
Power supplies for:
Portable communications equipment
Camcorders
LCD TVs
Car radios
