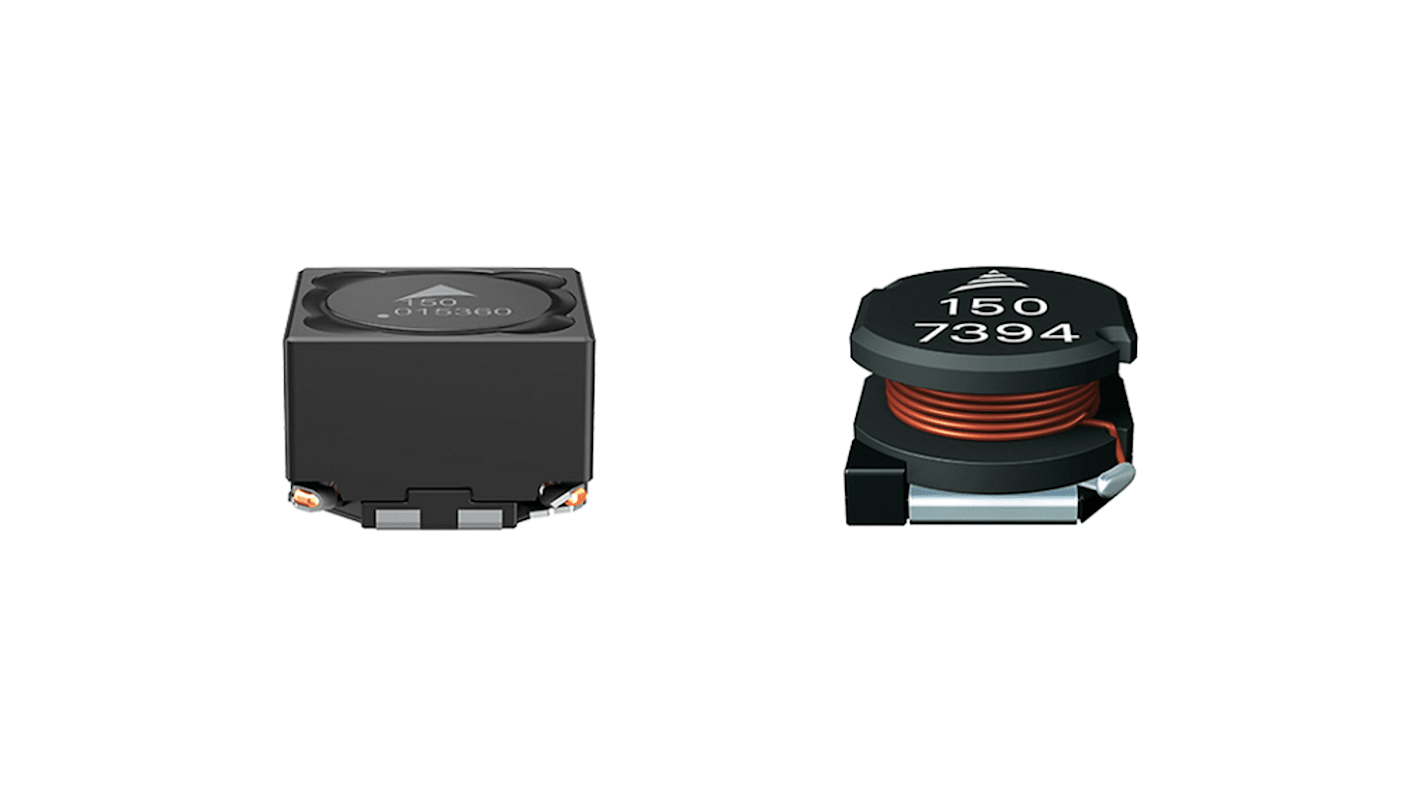

EPCOS, B82462-A4 Shielded Wirewound Surface Mount Inductor with a Ferrite Core, 3.3 μH ±20 % 4.9 A Idc
- RS Stock No.:
- 171-1136
- Mfr. Part No.:
- B82464A4332M000
- Brand:
- EPCOS
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 171-1136
- Mfr. Part No.:
- B82464A4332M000
- Brand:
- EPCOS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EPCOS | |
| Product Type | Wirewound Surface Mount Inductor | |
| Inductance | 3.3μH | |
| Maximum DC Current | 4.9A | |
| Length | 10.4mm | |
| Packaging | Tape & Reel | |
| Automotive Standard | AEC-Q200 | |
| Shielding | Yes | |
| Maximum DC Resistance | 15mΩ | |
| Minimum Operating Temperature | -55°C | |
| Inductance Tolerance | ±20 % | |
| Maximum Operating Temperature | 150°C | |
| Series | B82462-A4 | |
| Core Material | Ferrite | |
| Standards/Approvals | RoHS | |
| Diameter | 10.4mm | |
| Termination Style | Surface Mount | |
| Depth | 10.4mm | |
| Height | 4.8mm | |
| Inductor Construction | Wirewound | |
| Moulded | Yes | |
| Select all | ||
|---|---|---|
Brand EPCOS | ||
Product Type Wirewound Surface Mount Inductor | ||
Inductance 3.3μH | ||
Maximum DC Current 4.9A | ||
Length 10.4mm | ||
Packaging Tape & Reel | ||
Automotive Standard AEC-Q200 | ||
Shielding Yes | ||
Maximum DC Resistance 15mΩ | ||
Minimum Operating Temperature -55°C | ||
Inductance Tolerance ±20 % | ||
Maximum Operating Temperature 150°C | ||
Series B82462-A4 | ||
Core Material Ferrite | ||
Standards/Approvals RoHS | ||
Diameter 10.4mm | ||
Termination Style Surface Mount | ||
Depth 10.4mm | ||
Height 4.8mm | ||
Inductor Construction Wirewound | ||
Moulded Yes | ||
B82464-A4 Series Wire Wound Chokes
SMT size 10 x 10mm
Ferrite core construction
Leadfree tinned terminals
Wide operating temperature -55°C → +125°C
Very high rated current
Low DC resistance
Applications in filtering of power supplies
