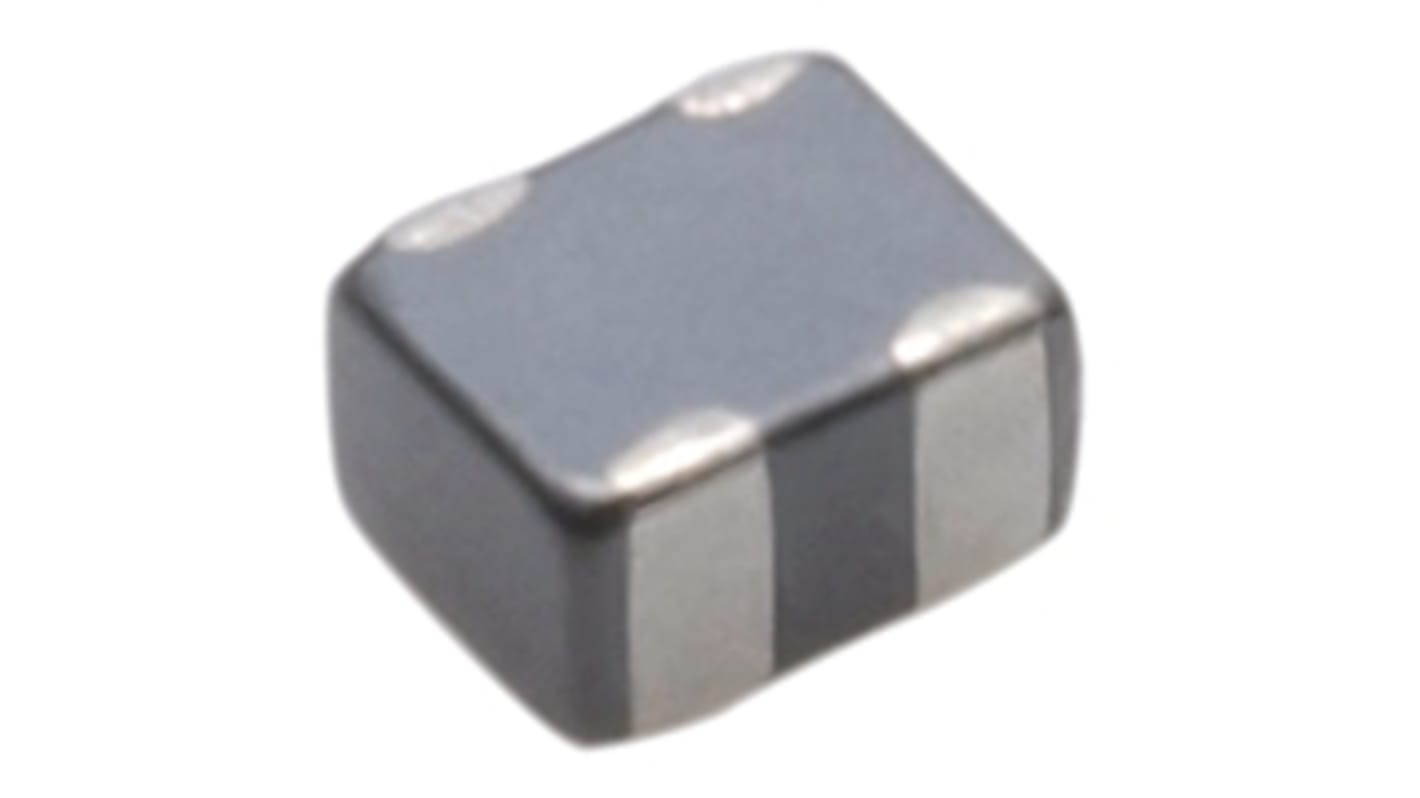

TDK, MCZ-CH, 1210 Shielded SMD Common Mode Line Filter Multilayer 100mA Idc

View all Surface Mount Inductors

Subtotal (1 reel of 4000 units)*

£2,116.00

(exc. VAT)

£2,540.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 06 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
4000 +£0.529£2,116.00

*price indicative

RS Stock No.:
171-0826
Mfr. Part No.:
MCZ1210CH240L2T
Brand:
TDK
Find similar products by selecting one or more attributes.
Select all

Brand

TDK

Maximum DC Current

100mA

Package/Case

1210

Length

1.25mm

Depth

1mm

Height

0.5mm

Dimensions

1.25 x 1 x 0.5mm

Shielded

Yes

Maximum DC Resistance

1Ω

Series

MCZ-CH

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+85°C

Inductor Construction

Multilayer

COO (Country of Origin):
JP

TDK 1210 MCZ Series Wire Wound Chokes


MCZ-AH Series are compact multilayer common mode filters
Has EMC suppression by achieving wide frequency range differential mode transmission while ensuring common mode impedance with virtually no effect on the high-speed differential transmission line signal
Applications include: Electronic equipment high-speed interface (LVDS, USB2.0; MHL); Mobile phones; PCs; DSCs; portable game machines; PDP/LCD/DLP/PJ TVs; DVD players; DVCs; mobile audio

MCZ-CH series has widened frequency range for differential mode transmission up to 3.5GHz
Characteristics impedance for differential mode is 100Ω
Applications similar to MCZ-AH Series including HDMI sink devices
