Eaton, 1104 Shielded Wire-wound SMD Inductor with a Composite Iron Powder Core, 900 nH ±20% Wire-Wound 28A Idc

View all Surface Mount Inductors

Subtotal (1 reel of 850 units)*

£766.70

(exc. VAT)

£919.70

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 26 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
850 +£0.902£766.70

*price indicative

RS Stock No.:
169-9727
Mfr. Part No.:
HCM1104-R90-R
Brand:
Eaton
Find similar products by selecting one or more attributes.
Select all

Brand

Eaton

Inductance

900 nH

Maximum DC Current

28A

Package/Case

1104

Length

11.1mm

Depth

10mm

Height

4mm

Dimensions

11.1 x 10 x 4mm

Shielded

Yes

Tolerance

±20%

Maximum DC Resistance

2.5mΩ

Core Material

Composite Iron Powder

Maximum Self Resonant Frequency

5MHz

Maximum Operating Temperature

+125°C

Inductor Construction

Wire-Wound

Moulded

Yes

Minimum Operating Temperature

-55°C

COO (Country of Origin):
CN

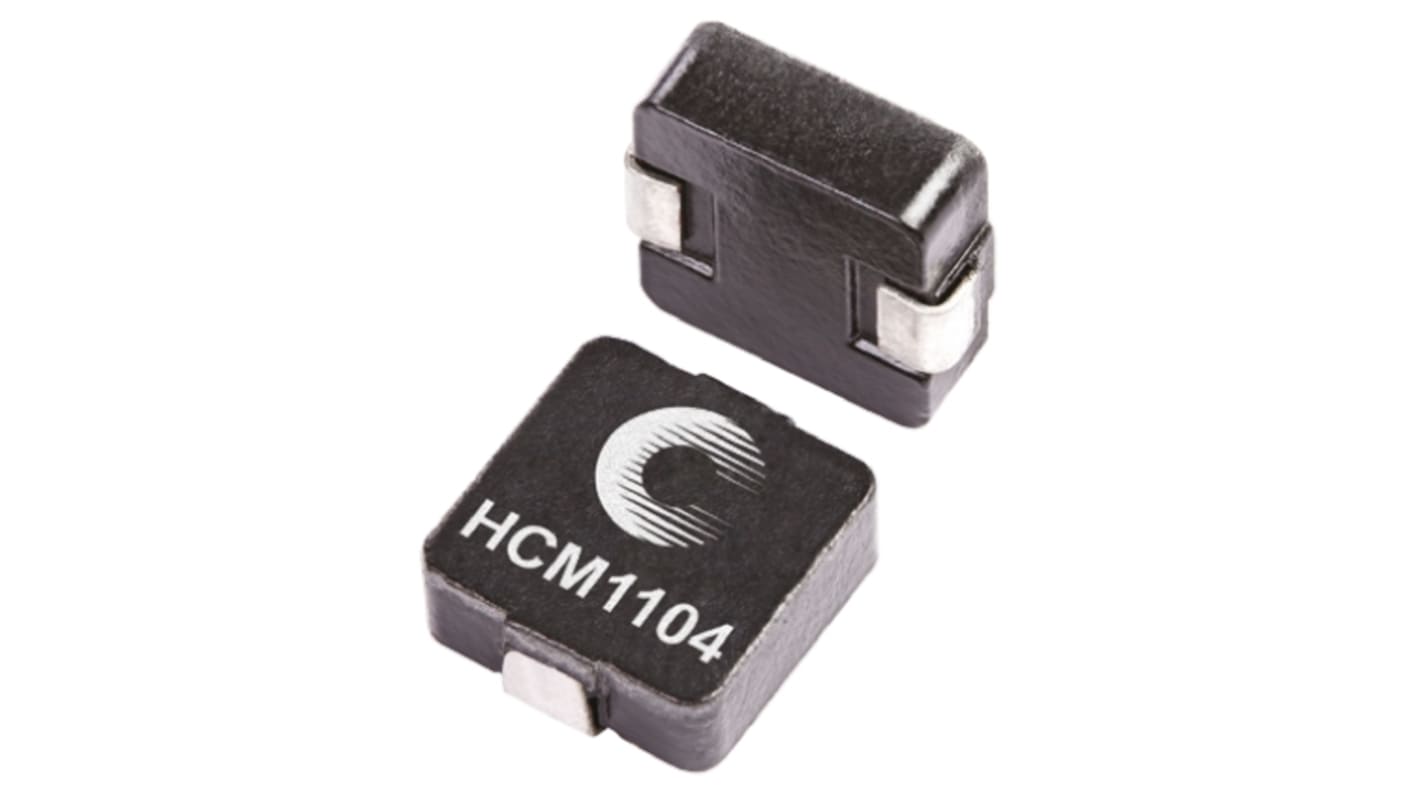

HCM1104 Series Magnetically Shielded Wire Wound Chokes


HCM1104 Series Magnetically shielded and low EMI SMD power inductors utilising a powder iron core material. The HCM1104 Series inductors design enables a high current carrying capacity, low core losses and a maximum total operating temperature of 125 °C. Applications for the HCF1104 Series include: Voltage Regulator Module (VRM); Multi-phase regulators; Point-of-load modules; Desktop and server VRMs and EVRDs; Base station equipment; Notebook regulators; Battery power systems; Graphics cards; Data networking and storage systems

Halogen free, lead free, RoHS compliant
SMD package size - 11.5 x 10.3 x 4.0mm
Inductance range - 0.2uH to 0.90uH
Current range from 45 to 28 Amps, frequency range up to 5MHz

Note

Eaton formerly known as Bussmann
