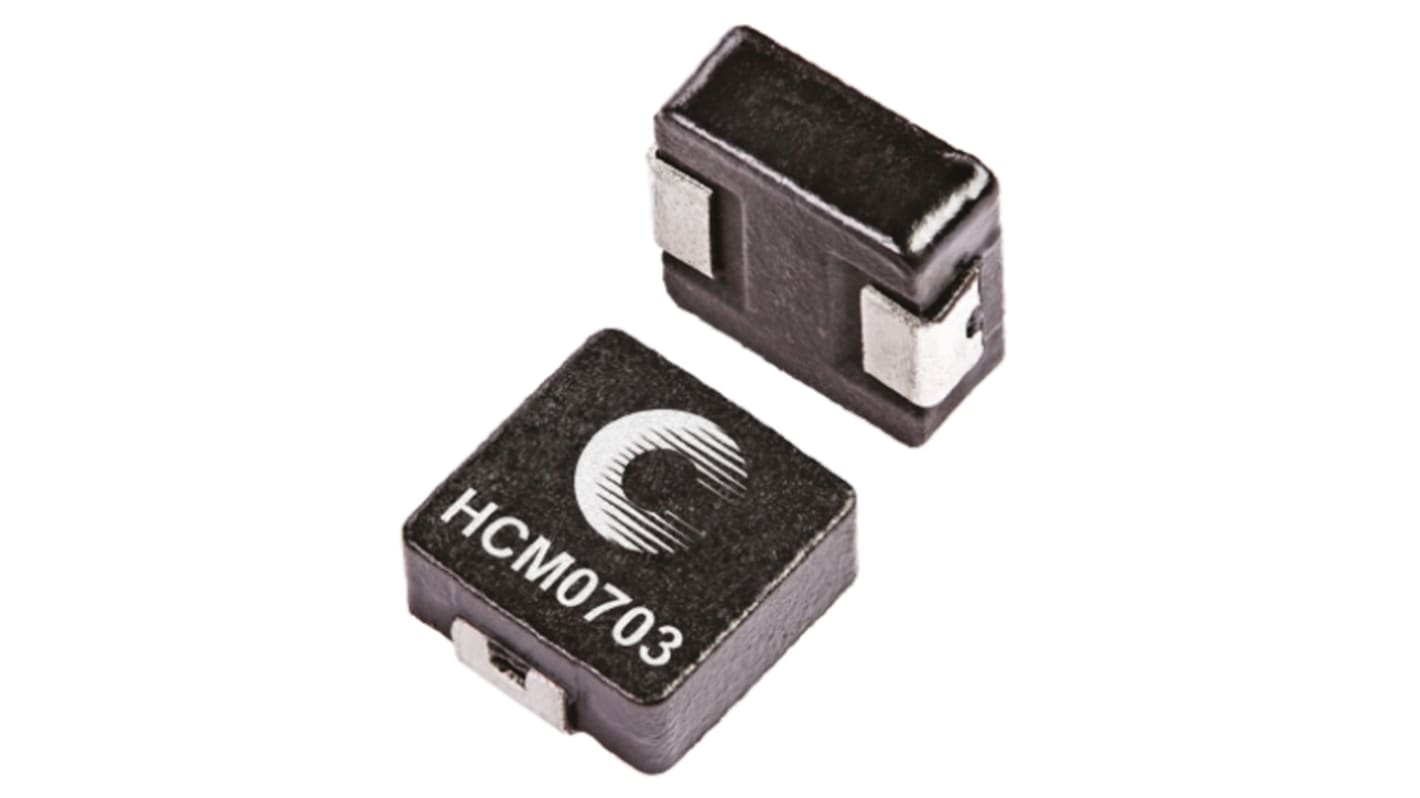

Eaton, , 0703 Shielded Wire-wound SMD Inductor with a Composite Iron Powder Core, 3.3 μH ±20% Wire-Wound 13.5A Idc
- RS Stock No.:
- 169-9721
- Mfr. Part No.:
- HCM0703-3R3-R
- Brand:
- Eaton
Subtotal (1 reel of 1500 units)*
£1,126.50
(exc. VAT)
£1,351.50
(inc. VAT)
Stock information currently inaccessible
Units | Per unit | Per Reel* |
---|---|---|
1500 + | £0.751 | £1,126.50 |
*price indicative
- RS Stock No.:
- 169-9721
- Mfr. Part No.:
- HCM0703-3R3-R
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Eaton | |
Inductance | 3.3 μH | |
Maximum DC Current | 13.5A | |
Package/Case | 0703 | |
Length | 7.1mm | |
Depth | 6.6mm | |
Height | 3mm | |
Dimensions | 7.1 x 6.6 x 3mm | |
Shielded | Yes | |
Tolerance | ±20% | |
Maximum DC Resistance | 30mΩ | |
Series | Eaton Bussman | |
Core Material | Composite Iron Powder | |
Maximum Self Resonant Frequency | 5MHz | |
Maximum Operating Temperature | +125°C | |
Minimum Operating Temperature | -55°C | |
Inductor Construction | Wire-Wound | |
Select all | ||
---|---|---|
Brand Eaton | ||
Inductance 3.3 μH | ||
Maximum DC Current 13.5A | ||
Package/Case 0703 | ||
Length 7.1mm | ||
Depth 6.6mm | ||
Height 3mm | ||
Dimensions 7.1 x 6.6 x 3mm | ||
Shielded Yes | ||
Tolerance ±20% | ||
Maximum DC Resistance 30mΩ | ||
Series Eaton Bussman | ||
Core Material Composite Iron Powder | ||
Maximum Self Resonant Frequency 5MHz | ||
Maximum Operating Temperature +125°C | ||
Minimum Operating Temperature -55°C | ||
Inductor Construction Wire-Wound | ||
- COO (Country of Origin):
- CN
HCM0703 Series Magnetically Shielded Wire Wound Chokes
HCM0703 series halogen free surface mount power inductors with a maximum operating temperature of 125°C, a high current carrying capacity and low core losses. The Magnetically shielded, low EMI HCM0703 inductors have a powdered iron core construction and are RoHS compliant.
Applications for the HCM0703 Series inductors include: Voltage Regulator Module (VRM), Multi-phase regulators; Point-of-load modules; Desktop and Server VRMs and EVRDs; Base station equipment; Notebook regulators; Battery power systems; Graphics cards; Data networking and storage systems
Applications for the HCM0703 Series inductors include: Voltage Regulator Module (VRM), Multi-phase regulators; Point-of-load modules; Desktop and Server VRMs and EVRDs; Base station equipment; Notebook regulators; Battery power systems; Graphics cards; Data networking and storage systems
Note
Eaton formerly known as Bussmann
Cooper Bussmann Non Standard SMT Inductors (Chokes)
