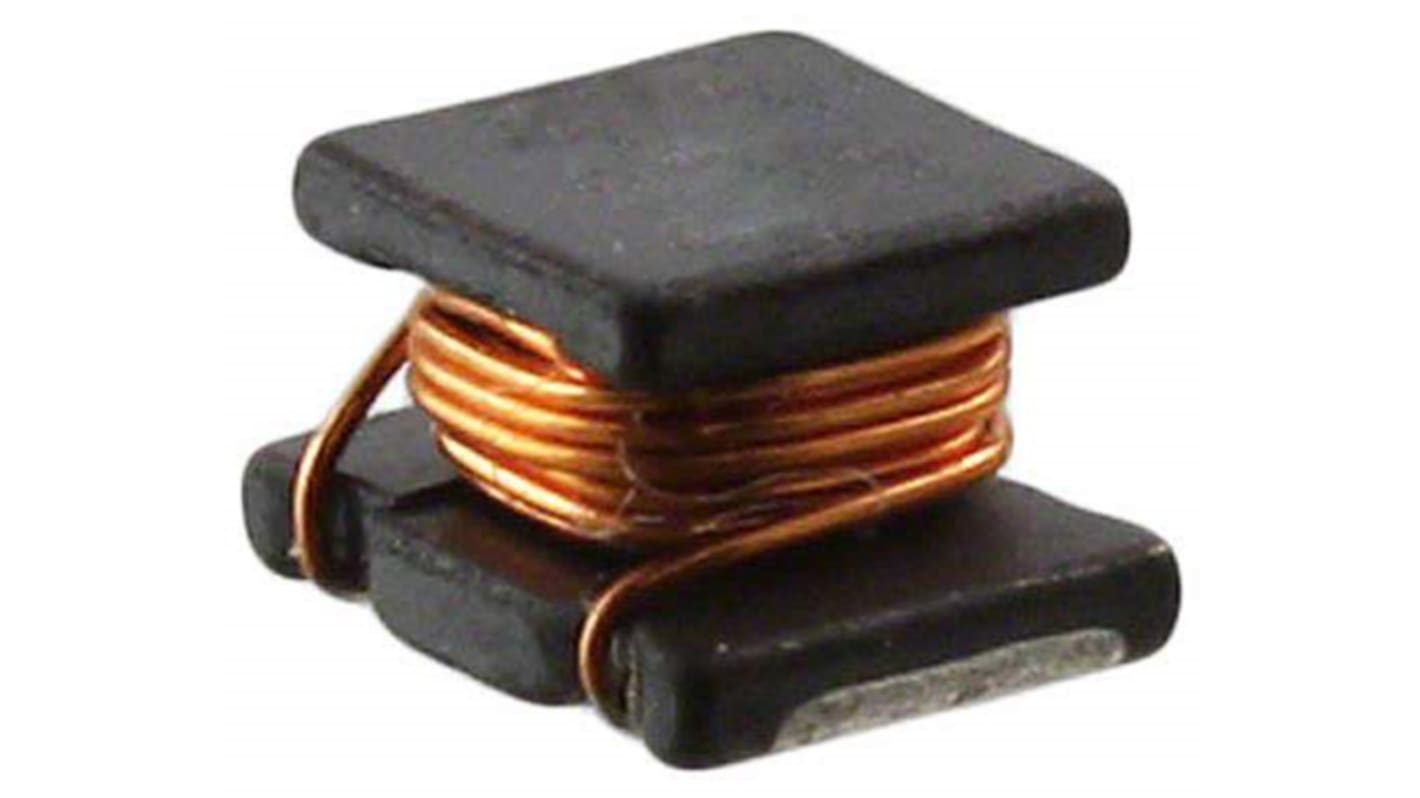

Murata, LQW31H, 1206 (3216M) Unshielded Wire-wound SMD Inductor with a Ferrite Core, 47 nH ±10% Wire-Wound 380mA Idc
- RS Stock No.:
- 167-5864
- Mfr. Part No.:
- LQW31HN47NK03L
- Brand:
- Murata
Available to back order for despatch when stock is available
Added
Price Each (On a Reel of 2000)
£0.094
(exc. VAT)
£0.113
(inc. VAT)
| Units | Per unit | Per Reel* |
| 2000 + | £0.094 | £188.00 |
| *price indicative | ||
- RS Stock No.:
- 167-5864
- Mfr. Part No.:
- LQW31HN47NK03L
- Brand:
- Murata
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
Murata 1206 LQW31H Series Magnetically Shielded Wire Wound Inductors
SMD Inductor for high frequency wire wound.
SMT 1206 Inductors (Chokes)
Specifications
Attribute | Value |
|---|---|
| Inductance | 47 nH |
| Maximum DC Current | 380mA |
| Package/Case | 1206 (3216M) |
| Length | 3.2mm |
| Depth | 1.6mm |
| Height | 1.8mm |
| Dimensions | 3.2 x 1.6 x 1.8mm |
| Shielded | No |
| Tolerance | ±10% |
| Maximum DC Resistance | 110mΩ |
| Series | LQW31H |
| Core Material | Ferrite |
| Maximum Self Resonant Frequency | 1GHz |
| Minimum Quality Factor | 60 |
| Inductor Construction | Wire-Wound |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -40°C |
- RS Stock No.:
- 167-5864
- Mfr. Part No.:
- LQW31HN47NK03L
- Brand:
- Murata
