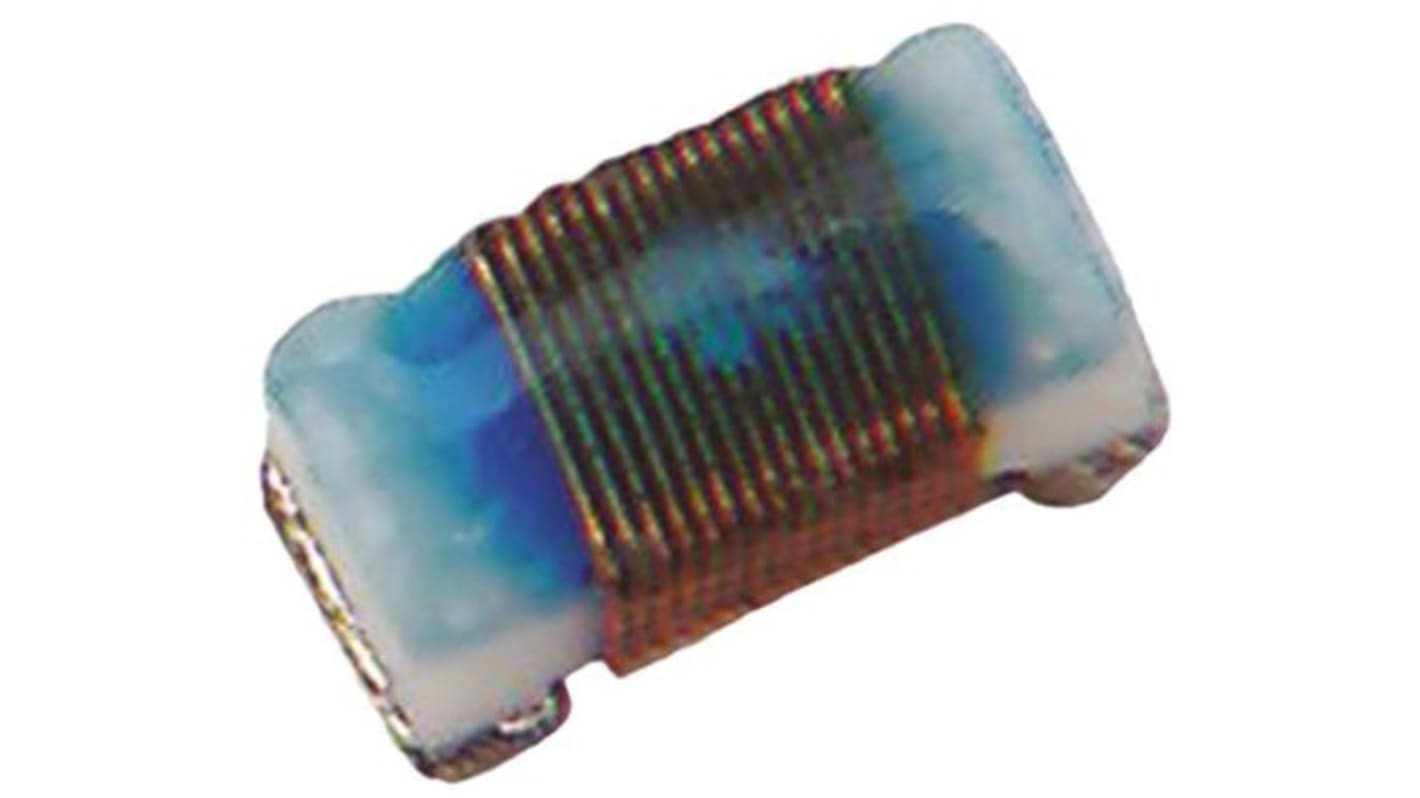

Murata, LQW, 03015 Surface Mount Inductor with a Ferrite Core, 19 nH 160 mA Idc Q:15
- RS Stock No.:
- 167-3937
- Mfr. Part No.:
- LQW04AN19NJ00D
- Brand:
- Murata
Subtotal (1 reel of 10000 units)*
£1,230.00
(exc. VAT)
£1,480.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 06 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 10000 + | £0.123 | £1,230.00 |
*price indicative
- RS Stock No.:
- 167-3937
- Mfr. Part No.:
- LQW04AN19NJ00D
- Brand:
- Murata
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Murata | |
| Product Type | Surface Mount Inductor | |
| Inductance | 19 nH | |
| Maximum DC Current | 160mA | |
| Package/Case | 03015 | |
| Length | 0.8mm | |
| Minimum Operating Temperature | -55°C | |
| Maximum DC Resistance | 730mΩ | |
| Maximum Operating Temperature | 125°C | |
| Series | LQW | |
| Core Material | Ferrite | |
| Depth | 0.4mm | |
| Height | 0.4mm | |
| Maximum Self Resonant Frequency | 5GHz | |
| Minimum Quality Factor | 15 | |
| Inductor Construction | Wirewound | |
| Select all | ||
|---|---|---|
Brand Murata | ||
Product Type Surface Mount Inductor | ||
Inductance 19 nH | ||
Maximum DC Current 160mA | ||
Package/Case 03015 | ||
Length 0.8mm | ||
Minimum Operating Temperature -55°C | ||
Maximum DC Resistance 730mΩ | ||
Maximum Operating Temperature 125°C | ||
Series LQW | ||
Core Material Ferrite | ||
Depth 0.4mm | ||
Height 0.4mm | ||
Maximum Self Resonant Frequency 5GHz | ||
Minimum Quality Factor 15 | ||
Inductor Construction Wirewound | ||
- COO (Country of Origin):
- JP
Murata 03015 LQW04A Series Wire Wound Chip Inductors
High quality coil inductors designed for VHF and UHF applications.
High resonance frequency.
Low tolerance of inductance values.
Half the size of the 0603 product.
Applications: High frequency circuits for wireless telecommunications equipment: Bluetooth, GSM, W-LAN.
SMT 03015 Inductors (Chokes)
