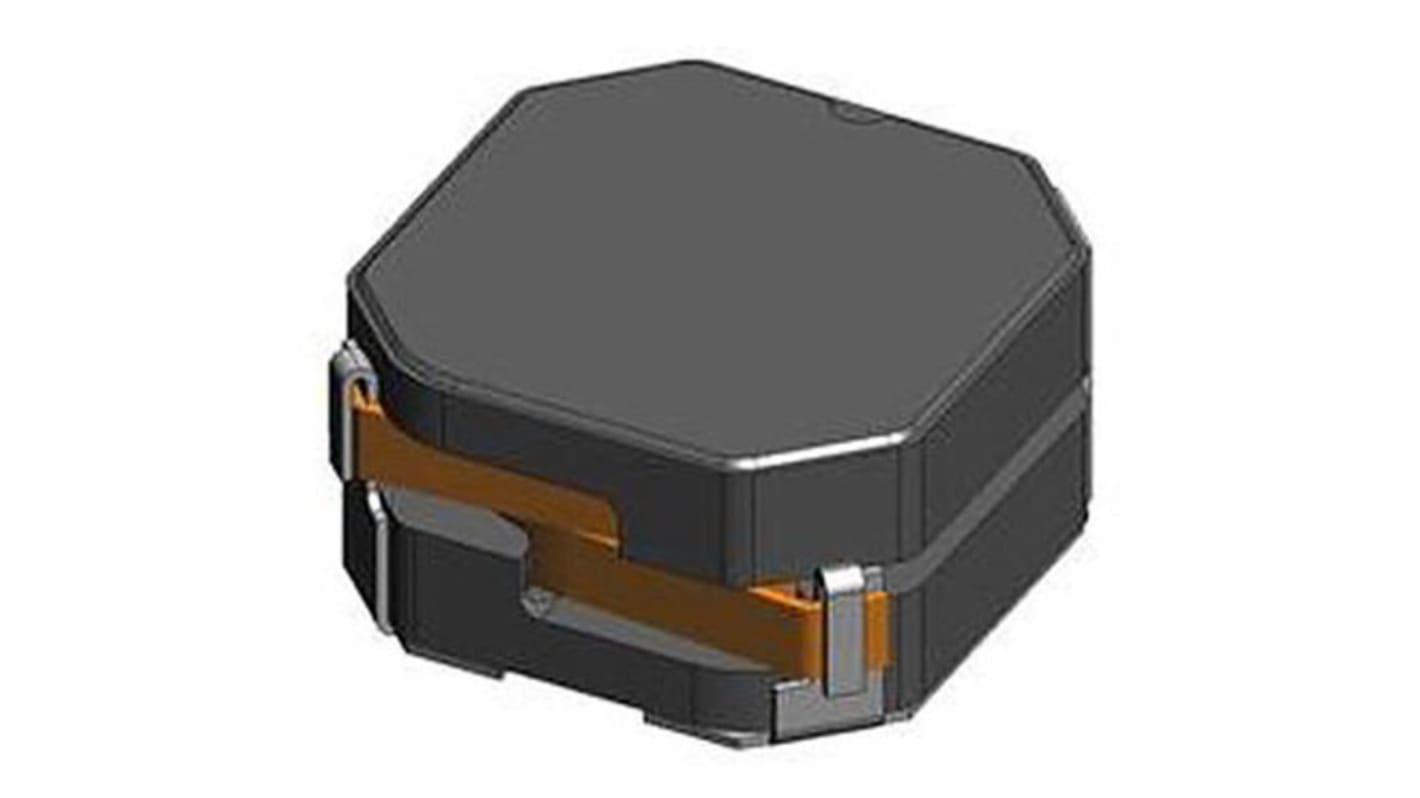

Toko, DEM10050C, 3939 (100100) Shielded Wire-wound SMD Inductor with a Ferrite Core, 10 μH ±20% Shielded 8.2A Idc
- RS Stock No.:
- 167-0909
- Mfr. Part No.:
- 1274AS-H-100M=P3
- Brand:
- Toko
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 167-0909
- Mfr. Part No.:
- 1274AS-H-100M=P3
- Brand:
- Toko
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Toko | |
Inductance | 10 μH | |
Maximum DC Current | 8.2A | |
Package/Case | 3939 (100100) | |
Length | 10mm | |
Depth | 10mm | |
Height | 5mm | |
Dimensions | 10 x 10 x 5mm | |
Shielded | Yes | |
Tolerance | ±20% | |
Maximum DC Resistance | 30.4mΩ | |
Series | DEM10050C | |
Core Material | Ferrite | |
Maximum Operating Temperature | +85°C | |
Moulded | Yes | |
Minimum Operating Temperature | -40°C | |
Inductor Construction | Shielded | |
Select all | ||
---|---|---|
Brand Toko | ||
Inductance 10 μH | ||
Maximum DC Current 8.2A | ||
Package/Case 3939 (100100) | ||
Length 10mm | ||
Depth 10mm | ||
Height 5mm | ||
Dimensions 10 x 10 x 5mm | ||
Shielded Yes | ||
Tolerance ±20% | ||
Maximum DC Resistance 30.4mΩ | ||
Series DEM10050C | ||
Core Material Ferrite | ||
Maximum Operating Temperature +85°C | ||
Moulded Yes | ||
Minimum Operating Temperature -40°C | ||
Inductor Construction Shielded | ||
- COO (Country of Origin):
- VN
DEM10050C Series Ferrite Inductors
DEM10050C Series ferrite inductors incorporate a magnetic shielded construction, these inductors have a low magnetic flux leakage from the top of coil. These ferrite inductors are 10.3. x10.3. mm square and 5.0 mm Max. height.
DEM10050C Series inductors use flat wire for low DC resistance, and are suitable for large currents. The operating temperature for these ferrite inductors is: -40∼+85°C.
DEM10050C Series inductors use flat wire for low DC resistance, and are suitable for large currents. The operating temperature for these ferrite inductors is: -40∼+85°C.
