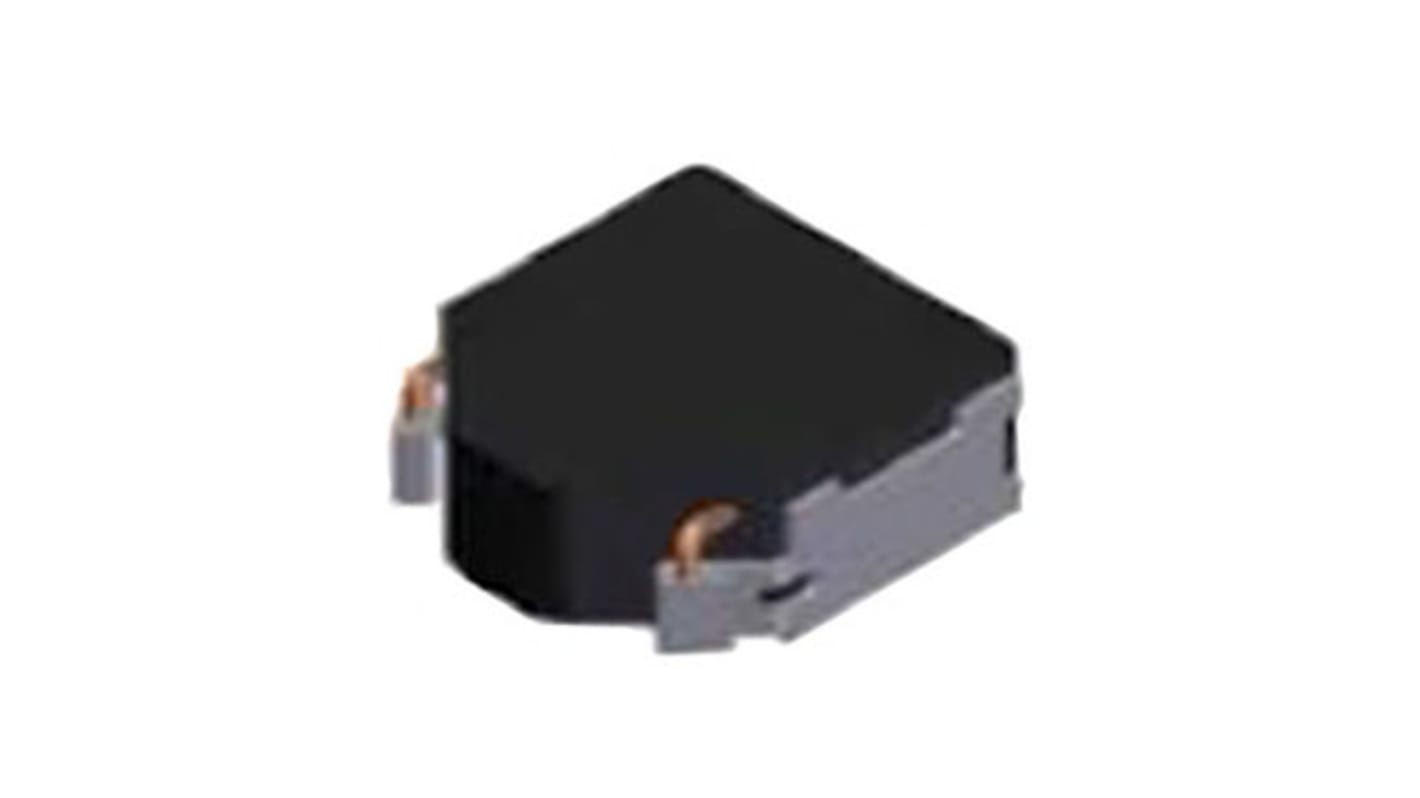

Toko, FDSD0412, 1515 (4040) Shielded Wire-wound SMD Inductor with a Powdered Iron Core, 2.2 μH ±20% Shielded 4.7A Idc

RS Stock No.:: 167-0623
Mfr. Part No.:: FDSD0412-H-2R2M=P3
Brand:: Toko

Toko, FDSD0412, 1515 (4040) Shielded Wire-wound SMD Inductor with a Powdered Iron Core, 2.2 μH ±20% Shielded 4.7A Idc

Available to back order for despatch 01/08/2024

Added

Price Each (On a Reel of 4000)

£0.266

(exc. VAT)

£0.319

(inc. VAT)

Units	Per unit	Per Reel*
4000 +	£0.266	£1,064.00
*price indicative

RS Stock No.:: 167-0623
Mfr. Part No.:: FDSD0412-H-2R2M=P3
Brand:: Toko

Technical Reference

Datasheet

Legislation and Compliance

COO (Country of Origin):: HN

Product Details

0412/0415/0420 Series Metal Alloy Inductors

FDSD/0412/0415/0420 Series metal alloy inductors incorporate a magnetic iron powder that allows capability for a large current. These SMD fixed inductors are reflow solderable and have a low audible noise. These SMD inductors are 4.0 x 4.0 mm square and 1.2/1.5/2.0 mm max. height.
These metal alloy inductors use flat wire for low DC resistance. FDSD series inductors are ideal for DC-DC Convertor applications, are halogen free and RoHS compliant.

Murata Non Standard SMT Inductors (Chokes)

Specifications

Attribute	Value
Inductance	2.2 μH
Maximum DC Current	4.7A
Package/Case	1515 (4040)
Length	4mm
Depth	4mm
Height	1.2mm
Dimensions	4 x 4 x 1.2mm
Shielded	Yes
Tolerance	±20%
Maximum DC Resistance	84mΩ
Series	FDSD0412
Core Material	Powdered Iron
Moulded	Yes
Maximum Operating Temperature	+100°C
Inductor Construction	Shielded
Minimum Operating Temperature	-20°C
