Murata, PLH10, 1260 Wire-wound SMD Inductor 220 μH Wire-Wound 1.5A Idc
- RS Stock No.:
- 166-9604
- Mfr. Part No.:
- PLH10AN2211R5P2B
- Brand:
- Murata
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 166-9604
- Mfr. Part No.:
- PLH10AN2211R5P2B
- Brand:
- Murata
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Murata | |
| Inductance | 220 μH | |
| Maximum DC Current | 1.5A | |
| Package/Case | 1260 | |
| Length | 18mm | |
| Depth | 16mm | |
| Height | 17.5mm | |

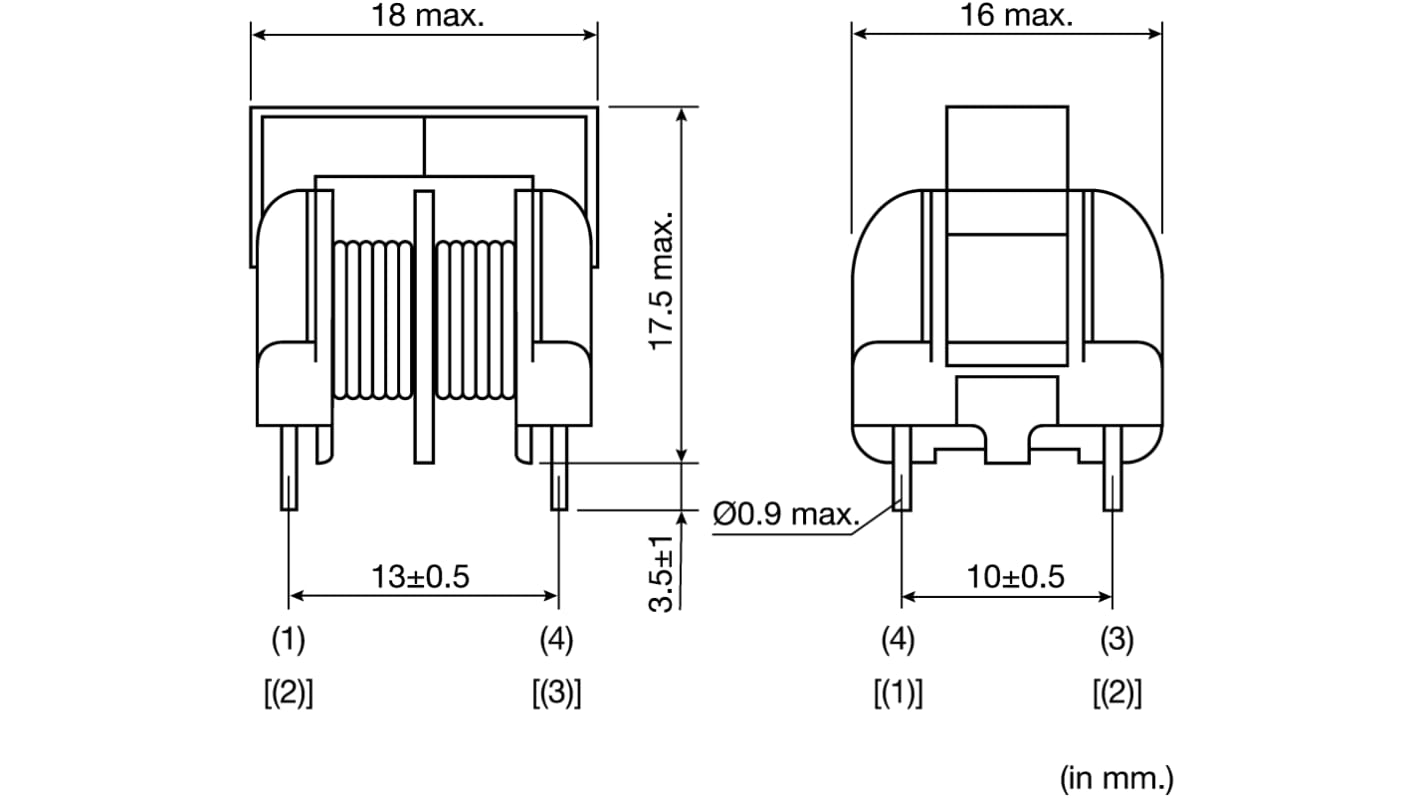

| Dimensions | 18 x 16 x 17.5mm | |
| Maximum DC Resistance | 100mΩ | |
| Series | PLH10 | |
| Minimum Operating Temperature | -25°C | |
| Inductor Construction | Wire-Wound | |
| Maximum Operating Temperature | +60°C | |
| Select all | ||
|---|---|---|
Brand Murata | ||
Inductance 220 μH | ||
Maximum DC Current 1.5A | ||
Package/Case 1260 | ||
Length 18mm | ||
Depth 16mm | ||
Height 17.5mm | ||
Dimensions 18 x 16 x 17.5mm | ||
Maximum DC Resistance 100mΩ | ||
Series PLH10 | ||
Minimum Operating Temperature -25°C | ||
Inductor Construction Wire-Wound | ||
Maximum Operating Temperature +60°C | ||
Murata PLH10 Series Common Mode Chokes
The PLH10 series is a common mode choke coil for high frequency use. The same dimensions as the PLA10 series enables flexible design.
High performance in high frequency range
Low profile in vertical core layout
Compact and light weight
Low profile in vertical core layout
Compact and light weight
Murata Leaded Inductors (Chokes)
