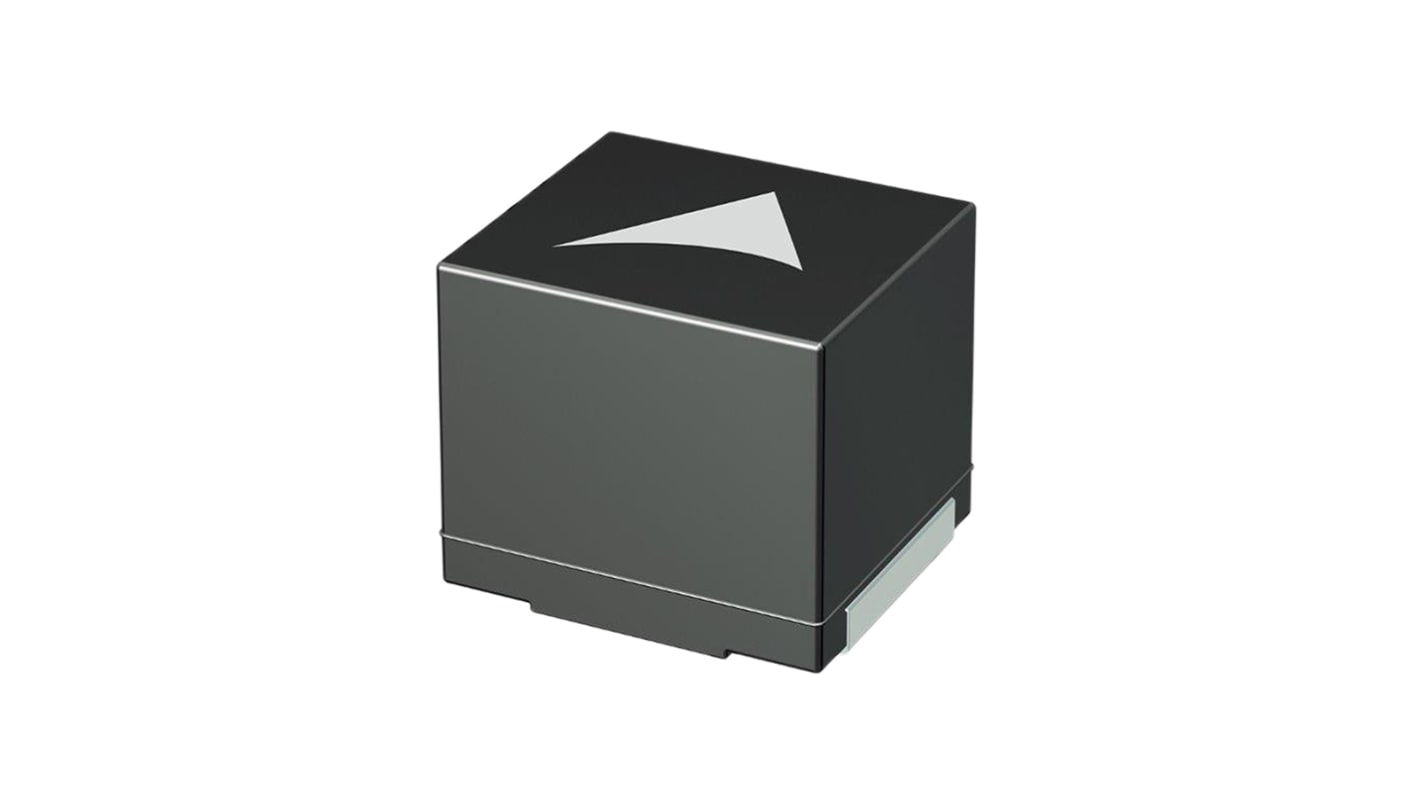

EPCOS, SIMID, 2220 Unshielded Wirewound Surface Mount Inductor with a Ferrite Core, 15 μH ±10 % 1.26 A Idc Q:15

View all Surface Mount Inductors

Subtotal (1 reel of 1500 units)*

£729.00

(exc. VAT)

£874.50

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 27 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
1500 +£0.486£729.00

*price indicative

RS Stock No.:
166-0188
Mfr. Part No.:
B82442T1153K050
Brand:
EPCOS
Find similar products by selecting one or more attributes.
Select all

Brand

EPCOS

Inductance

15 μH

Product Type

Wirewound Surface Mount Inductor

Maximum DC Current

1.26A

Package/Case

2220

Length

5.6mm

Packaging

Tape & Reel

Automotive Standard

AEC-Q200

Shielding

No

Pin Count

2

Minimum Operating Temperature

-55°C

Maximum DC Resistance

190mΩ

Maximum Operating Temperature

150°C

Series

SIMID

Inductance Tolerance

±10 %

Termination Style

Solder

Depth

5mm

Height

5mm

Core Material

Ferrite

Standards/Approvals

RoHS

Maximum Self Resonant Frequency

16MHz

Moulded

Yes

Minimum Quality Factor

15

Inductor Construction

Wirewound

COO (Country of Origin):
HU

EPCOS 2220 B82442T SIMID Series Wire Wound Inductors


B82442T SIMID Series SMD Inductors with a Ferrite drum core

Laser-welded winding and flame-retardant moulding

Features & Benefits:


B82442T SIMID Series have a high current handling capability

High Inductance values: 1 μH to 10000 μH

Rated current of 46 mA to 3510 mA

Temperature range up to 150°C

Qualified to AEC-Q200

Suitable for lead-free reflow soldering as referenced in JEDEC J-STD 020D

RoHS-compatible and Halogen-free

Applications in Filtering of supply voltages, coupling, decoupling; DC/DC converters/switch-mode power supplies; Automotive electronics; Telecommunications; Consumer electronics; Industrial electronics

SMT 2220 Inductors (Chokes)
