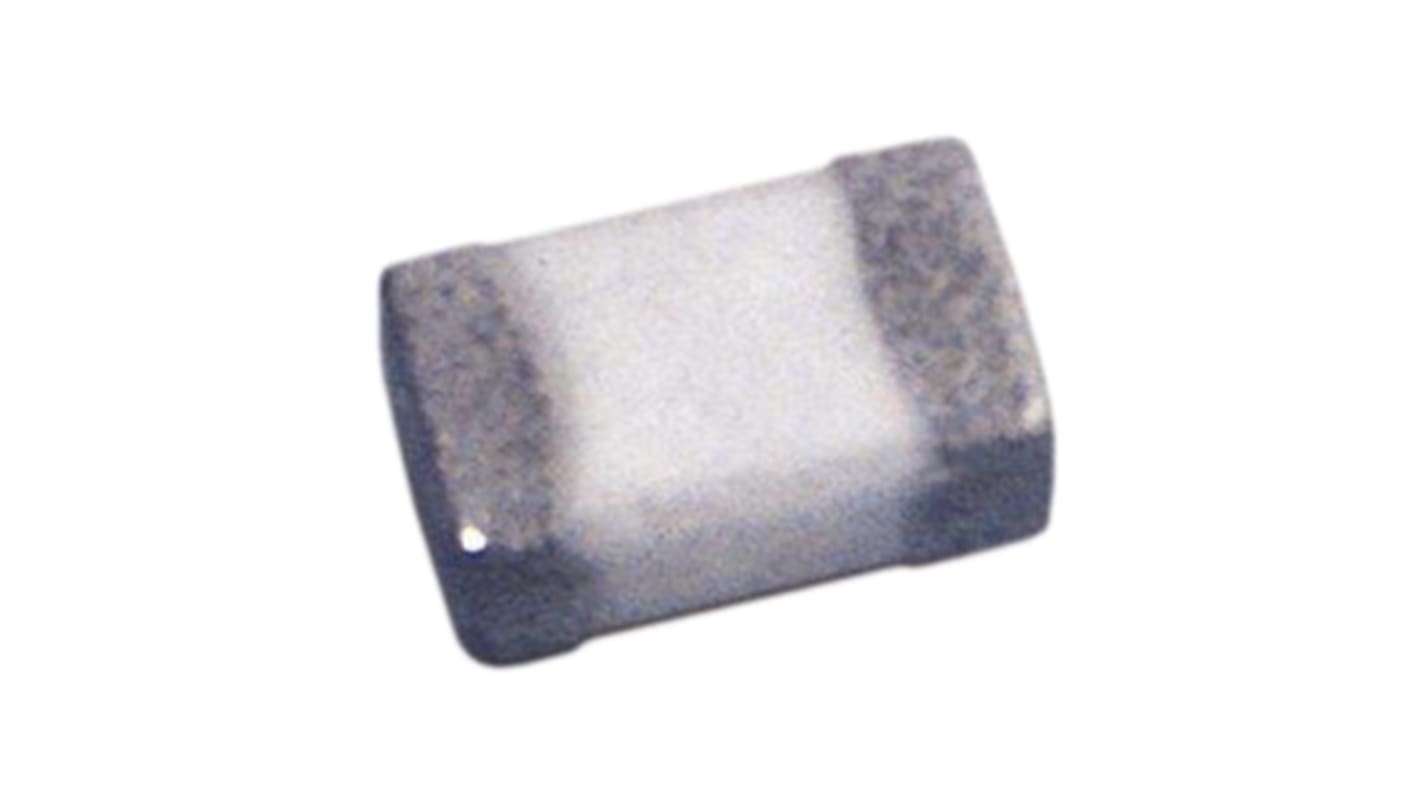

Wurth, WE-MK, 0603 (1608M) Multilayer Surface Mount Inductor with a Ceramic Core, 330 nH Multilayer 150mA Idc Q:8

View all Surface Mount Inductors

Subtotal (1 reel of 4000 units)*

£216.00

(exc. VAT)

£260.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 06 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
4000 +£0.054£216.00

*price indicative

RS Stock No.:
163-8130
Mfr. Part No.:
744786233A
Brand:
Wurth Elektronik
Find similar products by selecting one or more attributes.
Select all

Brand

Wurth Elektronik

Inductance

330 nH

Maximum DC Current

150mA

Package/Case

0603 (1608M)

Length

1.6mm

Depth

0.8mm

Height

0.8mm

Dimensions

1.6 x 0.8 x 0.8mm

Maximum DC Resistance

2.8Ω

Series

WE-MK

Core Material

Ceramic

Maximum Self Resonant Frequency

350MHz

Minimum Operating Temperature

-55°C

Minimum Quality Factor

8

Moulded

Yes

Inductor Construction

Multilayer

Maximum Operating Temperature

+125°C

COO (Country of Origin):
CN

Wurth 0603 WE-MK Series Multilayer Ceramic Inductors


Wurth WE-MK Series 0603 multilayer ceramic inductors are suitable for use in high frequency circuits such as tuners, transponders and HF amplifiers. Other applications include pagers, oscillators, laptops, PCMCIA-cards, Bluetooth, wireless LAN and filter circuits. These inductors offer stable inductance over temperature, inductive tolerances of 5%; ±0.3 nH and an high self-resonant frequency. The windings are printed on ceramic substrate and reflow or wave soldering is recommended for this series of multilayer inductors.
