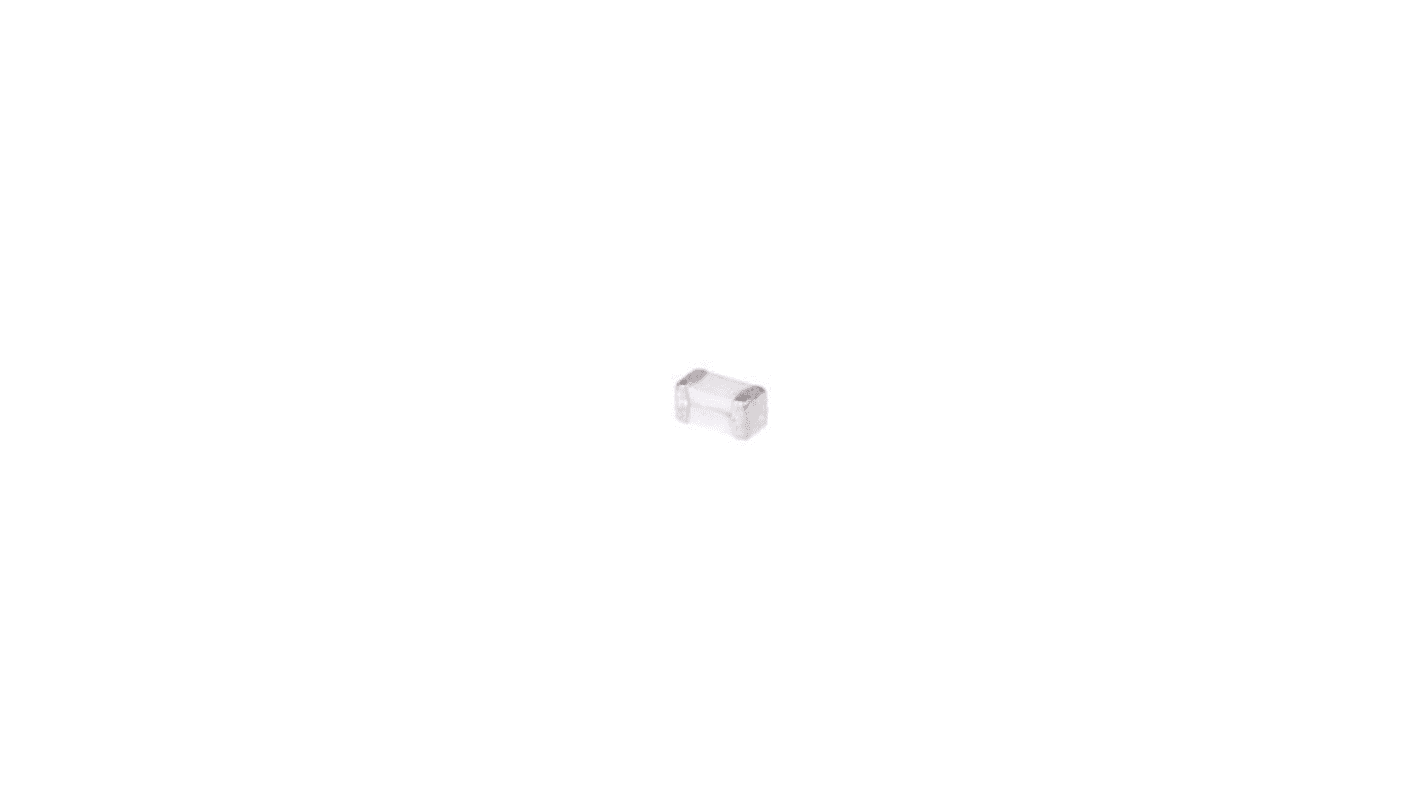

Wurth, WE-MK, 0603 (1608M) Multilayer Surface Mount Inductor with a Ceramic Core, 10 nH Multilayer 500mA Idc Q:12

RS Stock No.:: 163-8104
Mfr. Part No.:: 744786110A
Brand:: Wurth Elektronik

Wurth, WE-MK, 0603 (1608M) Multilayer Surface Mount Inductor with a Ceramic Core, 10 nH Multilayer 500mA Idc Q:12

View this category

275 In stock - FREE next working day delivery available

Price Each (On a Reel of 4000)

£0.052

(exc. VAT)

£0.062

(inc. VAT)

Units	Per unit	Per Reel*
4000 +	£0.052	£208.00

*price indicative

RS Stock No.:: 163-8104
Mfr. Part No.:: 744786110A
Brand:: Wurth Elektronik

Technical Reference

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

Wurth 0603 WE-MK Series Multilayer Ceramic Inductors

Wurth WE-MK Series 0603 multilayer ceramic inductors are suitable for use in high frequency circuits such as tuners, transponders and HF amplifiers. Other applications include pagers, oscillators, laptops, PCMCIA-cards, Bluetooth, wireless LAN and filter circuits. These inductors offer stable inductance over temperature, inductive tolerances of 5%; ±0.3 nH and an high self-resonant frequency. The windings are printed on ceramic substrate and reflow or wave soldering is recommended for this series of multilayer inductors.

Specifications

Attribute	Value
Inductance	10 nH
Maximum DC Current	500mA
Package/Case	0603 (1608M)
Length	1.6mm
Depth	0.8mm
Height	0.8mm
Dimensions	1.6 x 0.8 x 0.8mm
Maximum DC Resistance	400mΩ
Series	WE-MK
Core Material	Ceramic
Maximum Self Resonant Frequency	3.5GHz
Inductor Construction	Multilayer
Maximum Operating Temperature	+125°C
Minimum Quality Factor	12
Minimum Operating Temperature	-55°C
Moulded	Yes
