Wurth, WE-PD Shielded Wire-wound SMD Inductor 100 μH ±20% Shielded 1.5A Idc

View all Surface Mount Inductors

Subtotal (1 reel of 500 units)*

£669.00

(exc. VAT)

£803.00

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1,500 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
500 +£1.338£669.00

*price indicative

RS Stock No.:
144-9877
Mfr. Part No.:
7447714101
Brand:
Wurth Elektronik
Find similar products by selecting one or more attributes.
Select all

Brand

Wurth Elektronik

Inductance

100 μH

Maximum DC Current

1.5A

Length

10mm

Depth

10mm

Height

5mm

Dimensions

10 x 10 x 5mm

Shielded

Yes

Tolerance

±20%

Maximum DC Resistance

198mΩ

Series

WE-PD

Maximum Self Resonant Frequency

5.9MHz

Minimum Operating Temperature

-40°C

Inductor Construction

Shielded

Maximum Operating Temperature

+125°C

COO (Country of Origin):
CN

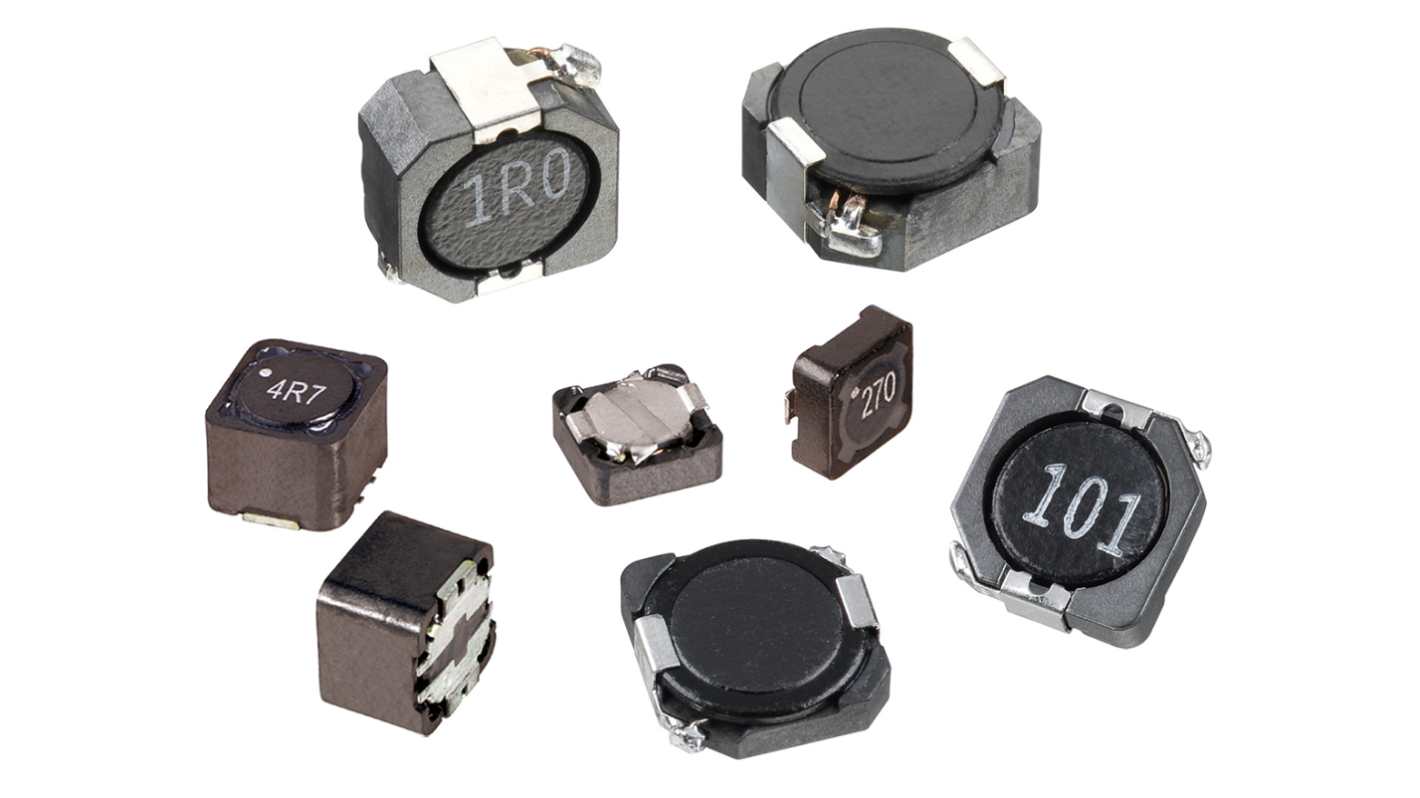

WE-PD Series Magnetically Shielded Wire Wound Chokes


Wurth WE-PD wirewound surface mount inductor is magnetically shielded resulting in a low leakage field. These power inductors have high storage capacity and high current loading. Recommended solder profile: Reflow. Operating temperature -40 to +125°C.

Applications


Switching regulators with low operating voltages
Integrated DC-DC converters
Switching regulators with high efficiency (>86%)
Graphic cards

Note

Plastic base variant applications are particularly suited to high vibration or shock applications due to its one piece construction.
