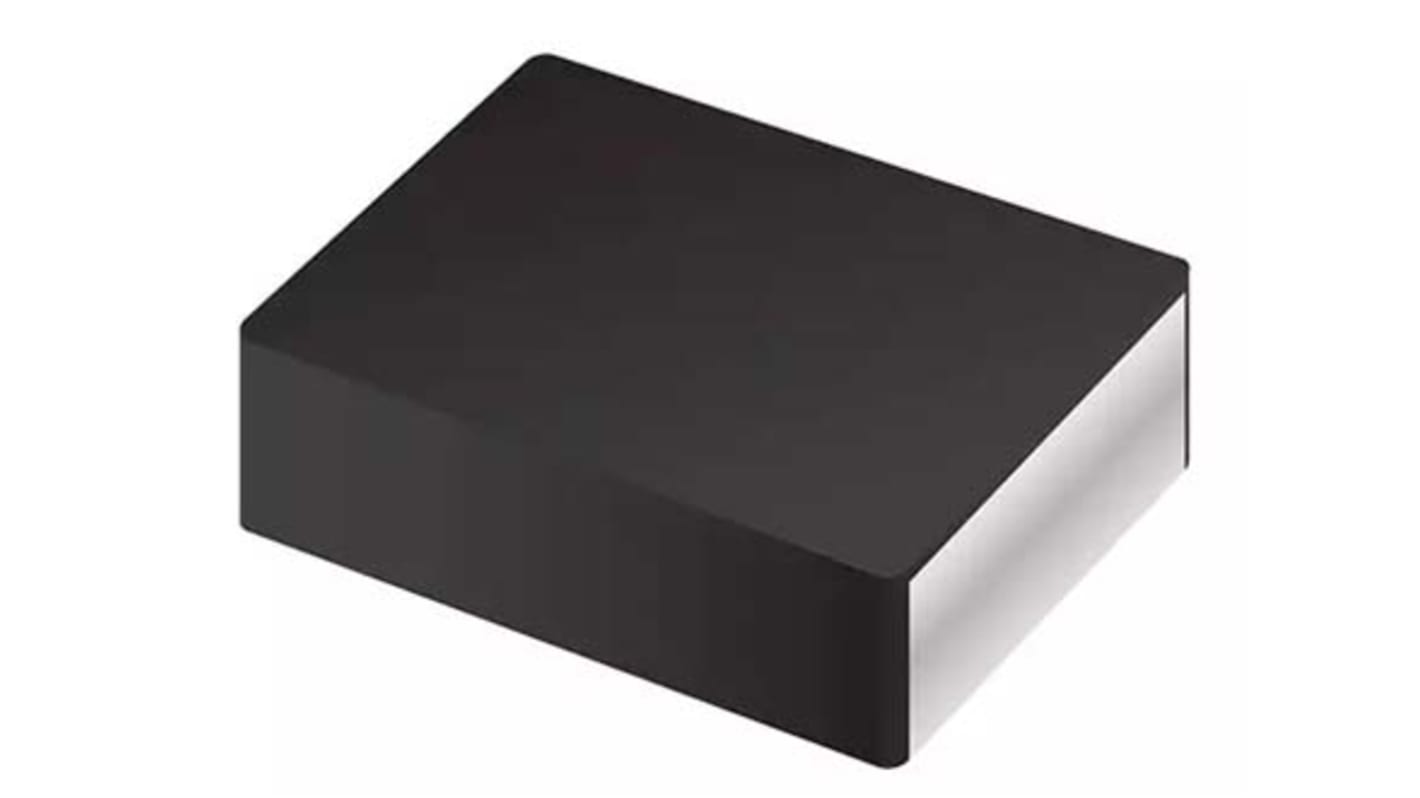

Bourns, SRP2510A Shielded Wire-wound SMD Inductor 1 μH ±20% Shielded 3A Idc Q:35

RS Stock No.:: 144-6488
Mfr. Part No.:: SRP2510A-1R0M
Brand:: Bourns

Bourns, SRP2510A Shielded Wire-wound SMD Inductor 1 μH ±20% Shielded 3A Idc Q:35

Stock information currently inaccessible

RS Stock No.:: 144-6488
Mfr. Part No.:: SRP2510A-1R0M
Brand:: Bourns

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Bourns
	Inductance	1 μH
	Maximum DC Current	3A
	Length	2.5mm
	Automotive Standard	AEC-Q200
	Depth	2mm
	Height	1mm
	Dimensions	2.5 x 2 x 1mm
	Shielded	Yes
	Tolerance	±20%
	Maximum DC Resistance	54mΩ
	Series	SRP2510A
	Maximum Self Resonant Frequency	94MHz
	Inductor Construction	Shielded
	Minimum Quality Factor	35
	Minimum Operating Temperature	-40°C
	Moulded	Yes
	Maximum Operating Temperature	+125°C

	Select all
	Brand Bourns
	Inductance 1 μH
	Maximum DC Current 3A
	Length 2.5mm
	Automotive Standard AEC-Q200
	Depth 2mm
	Height 1mm
	Dimensions 2.5 x 2 x 1mm
	Shielded Yes
	Tolerance ±20%
	Maximum DC Resistance 54mΩ
	Series SRP2510A
	Maximum Self Resonant Frequency 94MHz
	Inductor Construction Shielded
	Minimum Quality Factor 35
	Minimum Operating Temperature -40°C
	Moulded Yes
	Maximum Operating Temperature +125°C

Datasheet

Bourns' Breadth of Semi-Shielded Power Inductors Provides Comprehensive DC/DC Converter Power Management Support
Bourns Introduces Low-Profile SMD High Current Shielded Power Inductors for DC/DC Converters in Mobile Electronics
Bourns Introduces New High Current Power Inductors with Advanced Flat Wire Technology for Use in DC/DC Converters
