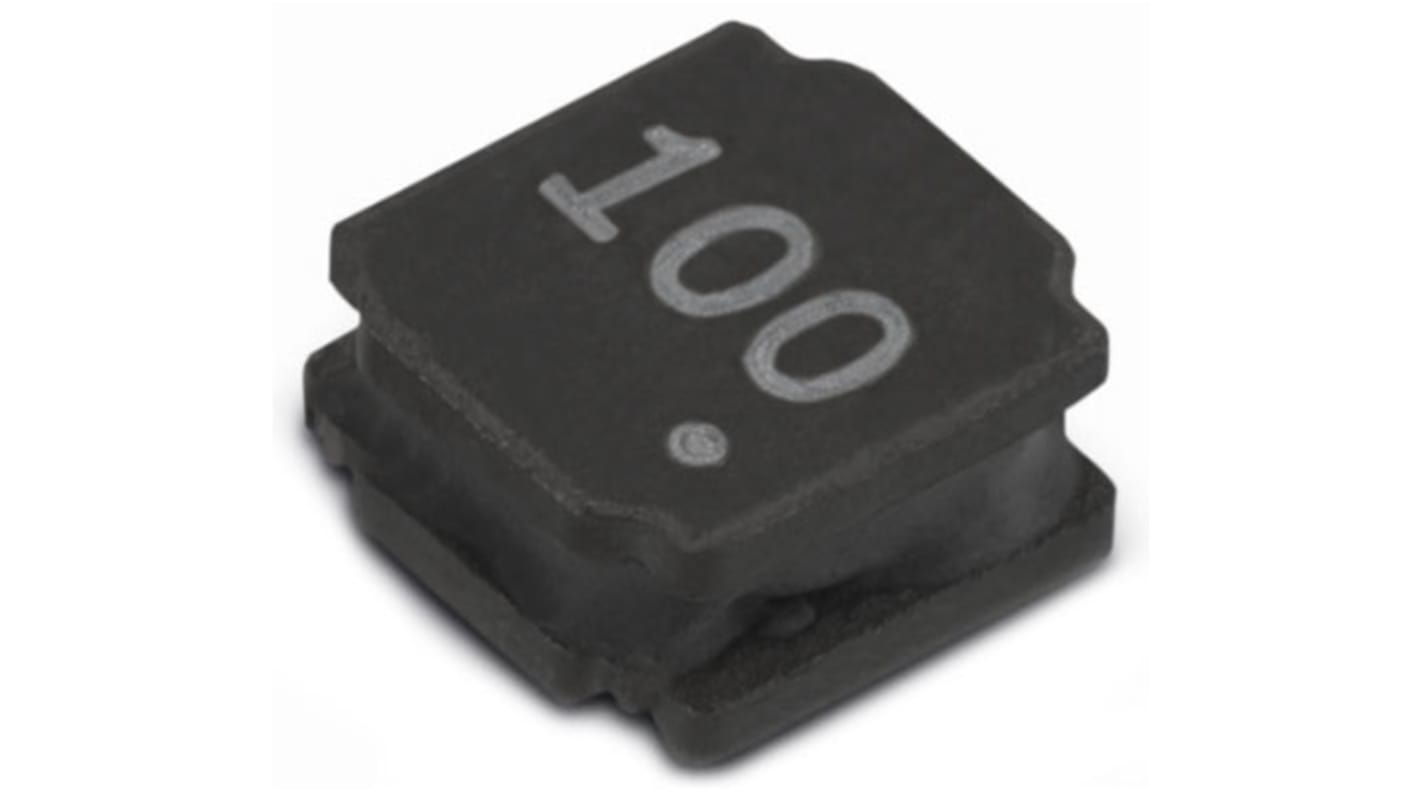

Wurth, WE-LQSH, 4020 Shielded Wire-wound SMD Inductor 3.3 μH ±20% Wire-Wound 2.3A Idc
- RS Stock No.:
- 135-4829
- Mfr. Part No.:
- 74405042033
- Brand:
- Wurth Elektronik
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 135-4829
- Mfr. Part No.:
- 74405042033
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Inductance | 3.3 μH | |
| Maximum DC Current | 2.3A | |
| Package/Case | 4020 | |
| Length | 4mm | |
| Depth | 3.7mm | |
| Height | 2mm | |
| Dimensions | 4 x 3.7 x 2mm | |
| Shielded | Yes | |
| Tolerance | ±20% | |
| Maximum DC Resistance | 72mΩ | |
| Series | WE-LQSH | |
| Maximum Self Resonant Frequency | 27MHz | |
| Maximum Operating Temperature | +125°C | |
| Minimum Operating Temperature | -40°C | |
| Inductor Construction | Wire-Wound | |
Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Inductance 3.3 μH | ||
Maximum DC Current 2.3A | ||
Package/Case 4020 | ||
Length 4mm | ||
Depth 3.7mm | ||
Height 2mm | ||
Dimensions 4 x 3.7 x 2mm | ||
Shielded Yes | ||
Tolerance ±20% | ||
Maximum DC Resistance 72mΩ | ||
Series WE-LQSH | ||
Maximum Self Resonant Frequency 27MHz | ||
Maximum Operating Temperature +125°C | ||
Minimum Operating Temperature -40°C | ||
Inductor Construction Wire-Wound | ||
- COO (Country of Origin):
- CN
WE-LQSH Series SMD Semi-Shielded High Shielded High Saturation Power Inductors
Wurth WE-LQSH SMD Semi-Shielded Power Inductors are compact semi-shielded power inductors with an iron core for applications with high DC output current. These inductors have a soft saturation current behavior and a magnetic adhesive epoxy around the inductor core that reduces disturbing noise and magnetic stray field. The powder core can be loaded with 70% more saturation current than other semi-shielded power inductors.25V maximum peak voltage, operating temperature -40 ºC to +125 ºC
Applications
Integrated DC-DC converters with high ripple currents
Portable devices (smartphones, digital cameras, tablets)
Switching controllers requiring high efficiency
Embedded laptops and PCs
Portable devices (smartphones, digital cameras, tablets)
Switching controllers requiring high efficiency
Embedded laptops and PCs
