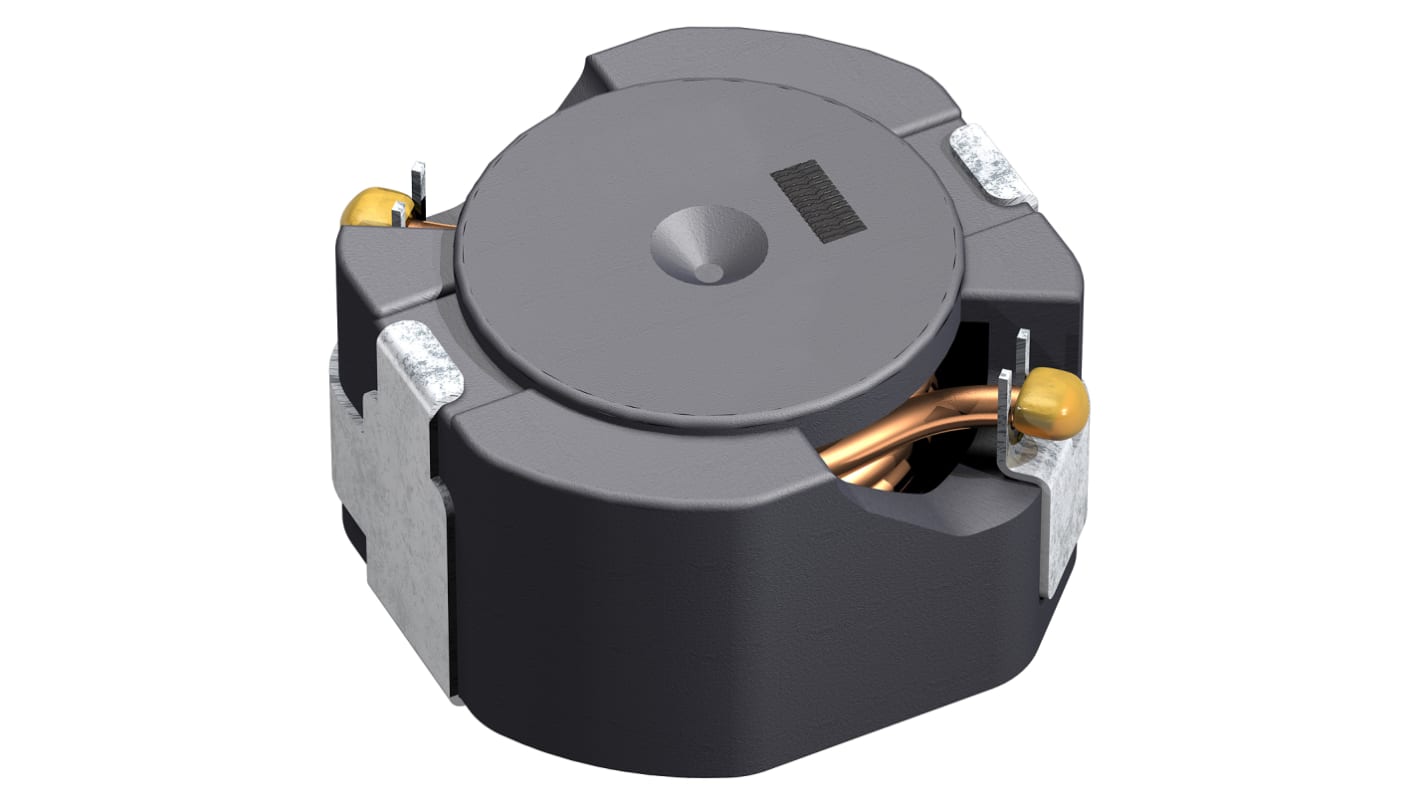

TDK, CLF-NI-D Shielded Wire-wound SMD Inductor with a Ferrite Core, 22 μH ±20% Wire-Wound 1.7 (Saturation) A, 2.2

View all Surface Mount Inductors
Bulk discount available

Subtotal (1 pack of 10 units)*

£7.34

(exc. VAT)

£8.81

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible
Units
Per unit
Per Pack*
10 - 40£0.734£7.34
50 - 90£0.675£6.75
100 - 240£0.631£6.31
250 - 490£0.558£5.58
500 +£0.514£5.14

*price indicative

Packaging Options:
RS Stock No.:
124-7827
Mfr. Part No.:
CLF7045NIT-220M-D
Brand:
TDK
Find similar products by selecting one or more attributes.
Select all

Brand

TDK

Inductance

22 μH

Maximum DC Current

1.7 (Saturation) A, 2.2 (Temperature) A

Length

7.4mm

Depth

7mm

Height

4.5mm

Dimensions

7.4 x 7 x 4.5mm

Shielded

Yes

Tolerance

±20%

Maximum DC Resistance

69mΩ

Series

CLF-NI-D

Core Material

Ferrite

Maximum Operating Temperature

+150°C

Minimum Operating Temperature

-55°C

Inductor Construction

Wire-Wound

COO (Country of Origin):
JP

CLF7045NI-D SMD Wound Ferrite Inductors


The CLF7045NI-D range from TDK consists of magnetically shielded wirewound inductors. These wirewound inductors can be used at a wide range of temperatures from -55°C to +150°C (including self-temperature rise). They are halogen free, compatible with lead free solder and are available in a range of E6 series inductance values.

Product Application Information


With an AEC-Q200 qualification, these wirewound inductors are suitable for power circuits within automotive applications. Applications include ABS, electronic power steering, engine control modules, meters, headlights.

Standards

AEC-Q200 qualified


TDK Non Standard SMT Inductors (Chokes)
