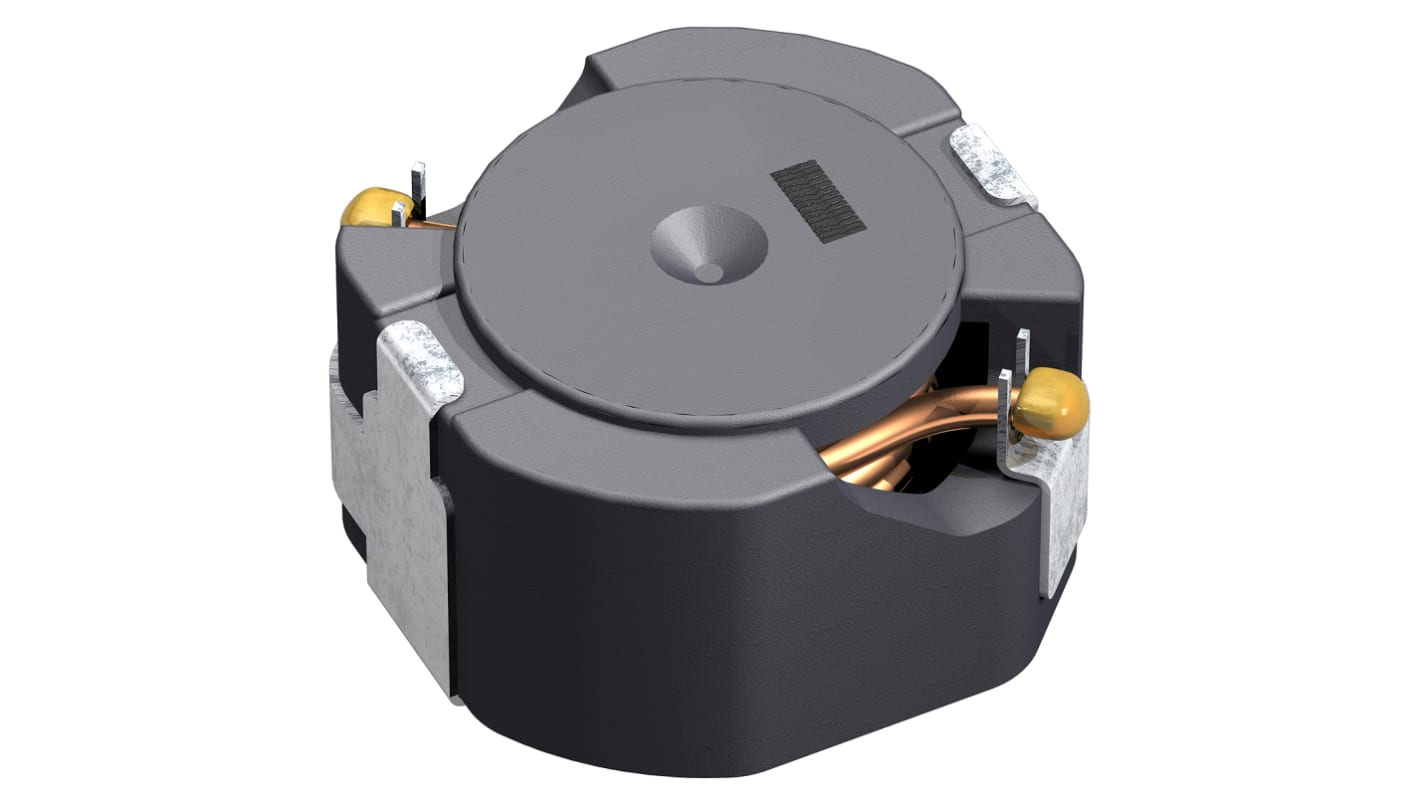

TDK, CLF-NI-D Shielded Wire-wound SMD Inductor with a Ferrite Core, 220 μH ±20% Wire-Wound 470 (Saturation) mA, 570
- RS Stock No.:
- 124-7811
- Mfr. Part No.:
- CLF6045NIT-221M-D
- Brand:
- TDK
Bulk discount available
Subtotal (1 pack of 10 units)*
£6.66
(exc. VAT)
£7.99
(inc. VAT)
Stock information currently inaccessible
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 90 | £0.666 | £6.66 |
| 100 - 490 | £0.51 | £5.10 |
| 500 - 990 | £0.382 | £3.82 |
| 1000 - 2490 | £0.353 | £3.53 |
| 2500 + | £0.333 | £3.33 |
*price indicative
Alternative
EPCOS, CLF6045NI-D, 6045 Shielded Wire-wound SMD Inductor with a Ferrite Core, 220 μH ±20% Shielded 570mA Idc
£0.548
Each (On a Tape of 5)
RS Stock No.: 185-8352
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (On a Tape of 5)
£0.548
(exc. VAT)
£0.658
(inc. VAT)
- RS Stock No.:
- 124-7811
- Mfr. Part No.:
- CLF6045NIT-221M-D
- Brand:
- TDK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK | |
| Inductance | 220 μH | |
| Maximum DC Current | 470 (Saturation) mA, 570 (Temperature) mA | |
| Length | 6.3mm | |
| Depth | 6mm | |
| Height | 4.5mm | |
| Dimensions | 6.3 x 6 x 4.5mm | |
| Shielded | Yes | |
| Tolerance | ±20% | |
| Maximum DC Resistance | 720mΩ | |
| Series | CLF-NI-D | |
| Core Material | Ferrite | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +150°C | |
| Inductor Construction | Wire-Wound | |
Select all | ||
|---|---|---|
Brand TDK | ||
Inductance 220 μH | ||
Maximum DC Current 470 (Saturation) mA, 570 (Temperature) mA | ||
Length 6.3mm | ||
Depth 6mm | ||
Height 4.5mm | ||
Dimensions 6.3 x 6 x 4.5mm | ||
Shielded Yes | ||
Tolerance ±20% | ||
Maximum DC Resistance 720mΩ | ||
Series CLF-NI-D | ||
Core Material Ferrite | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +150°C | ||
Inductor Construction Wire-Wound | ||
- COO (Country of Origin):
- JP
CLF6045NI-D SMD Wound Ferrite Inductors
The CLF6045NI-D range from TDK consists of magnetically shielded wirewound inductors. These wirewound inductors can be used at a wide temperature range from -55°C to +150°C (including self-temperature rise). They are halogen free, compatible with lead free solder and are available in a range of E6 series inductance values.
Product Application Information
With an AEC-Q200 qualification, these wirewound inductors are suitable for power circuits within automotive applications. Applications include engine control modules, meters, electronic power steering, ABS and headlights.
Standards
AEC-Q200 qualified
TDK Non Standard SMT Inductors (Chokes)
