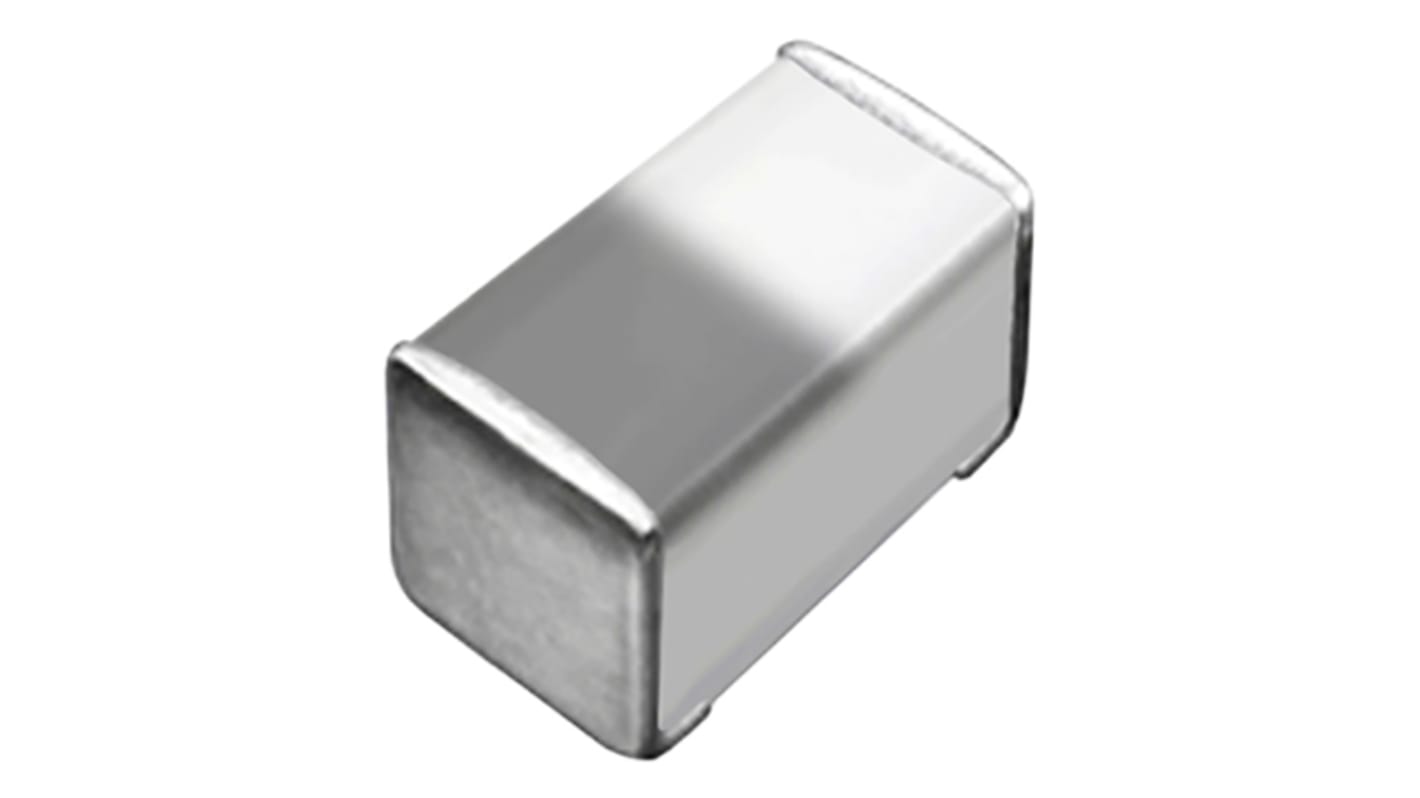

TDK, MHQ-P, 0402 Shielded Multilayer Surface Mount Inductor with a Ceramic Core, 700 pH Multilayer ±0.1 nH 1.2 A Idc
- RS Stock No.:
- 123-3104
- Mfr. Part No.:
- MHQ1005P0N7BT000
- Brand:
- TDK
Subtotal (1 pack of 100 units)*
£5.50
(exc. VAT)
£6.60
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 6,900 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 100 + | £0.055 | £5.50 |
*price indicative
- RS Stock No.:
- 123-3104
- Mfr. Part No.:
- MHQ1005P0N7BT000
- Brand:
- TDK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK | |
| Product Type | Multilayer Surface Mount Inductor | |
| Inductance | 700pH | |
| Maximum DC Current | 1.2A | |
| Package/Case | 0402 | |
| Length | 1mm | |
| Automotive Standard | No | |
| Shielding | Yes | |
| Maximum DC Resistance | 30mΩ | |
| Pin Count | 2 | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Series | MHQ-P | |
| Inductance Tolerance | ±0.1 nH | |
| Termination Style | Surface Mount | |
| Height | 0.5mm | |
| Core Material | Ceramic | |
| Standards/Approvals | RoHS | |
| Depth | 0.6mm | |
| Maximum Self Resonant Frequency | 18.3GHz | |
| Inductor Construction | Multilayer | |
| Moulded | Yes | |
| Select all | ||
|---|---|---|
Brand TDK | ||
Product Type Multilayer Surface Mount Inductor | ||
Inductance 700pH | ||
Maximum DC Current 1.2A | ||
Package/Case 0402 | ||
Length 1mm | ||
Automotive Standard No | ||
Shielding Yes | ||
Maximum DC Resistance 30mΩ | ||
Pin Count 2 | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Series MHQ-P | ||
Inductance Tolerance ±0.1 nH | ||
Termination Style Surface Mount | ||
Height 0.5mm | ||
Core Material Ceramic | ||
Standards/Approvals RoHS | ||
Depth 0.6mm | ||
Maximum Self Resonant Frequency 18.3GHz | ||
Inductor Construction Multilayer | ||
Moulded Yes | ||
- COO (Country of Origin):
- JP
High Frequency Inductors - MHQ1005P Series
MHQ1005P series have a unique ceramic material and configuration which allows for the realisation of high Q characteristics that are equivalent to that of Air core wound inductors.
Fine increments of inductance are achieved due to the multilayers
High Q characteristics
Fine increments of inductance
Applications include Smart phones, tablet terminals, high frequency modules (PAs, VCOs, FEMs , etc.), Bluetooth, W-LAN, UWB, tuners, and other high frequency circuits for the mobile communication industry
