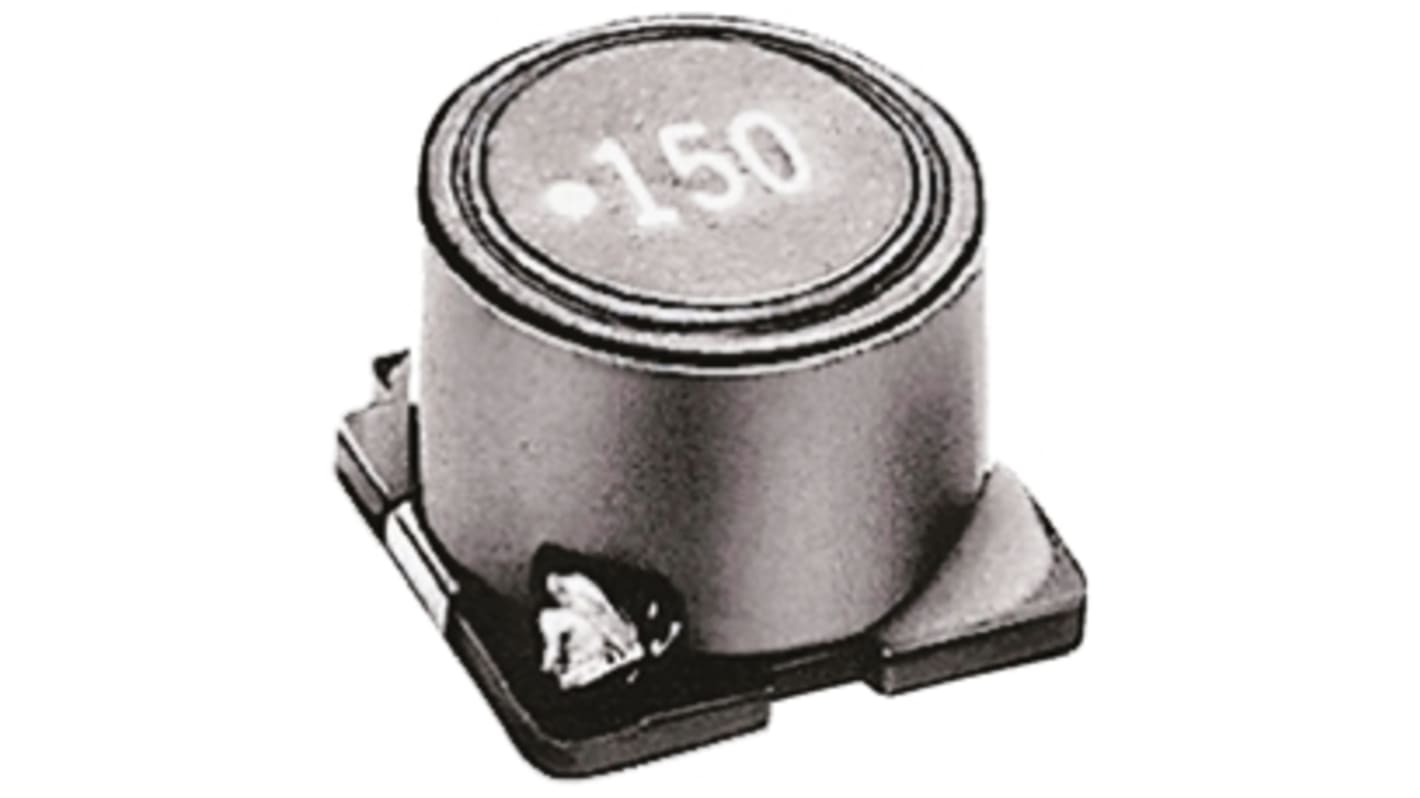

TDK, SLF, 12575 Shielded Wirewound Surface Mount Inductor with a Ferrite Core, 10 μH ±20 % 5.4 A Idc
- RS Stock No.:
- 111-0892
- Mfr. Part No.:
- SLF12575T-100M5R4-PF
- Brand:
- TDK
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 111-0892
- Mfr. Part No.:
- SLF12575T-100M5R4-PF
- Brand:
- TDK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK | |
| Product Type | Wirewound Surface Mount Inductor | |
| Inductance | 10 μH | |
| Maximum DC Current | 5.4A | |
| Package/Case | 12575 | |
| Length | 12.5mm | |
| Packaging | Taping | |
| Automotive Standard | No | |
| Shielding | Yes | |
| Maximum DC Resistance | 15.6mΩ | |
| Minimum Operating Temperature | -20°C | |
| Series | SLF | |
| Maximum Operating Temperature | 105°C | |
| Inductance Tolerance | ±20 % | |
| Standards/Approvals | RoHS | |
| Depth | 12.5mm | |
| Core Material | Ferrite | |
| Termination Style | Surface Mount | |
| Height | 7.5mm | |
| Moulded | Yes | |
| Inductor Construction | Wirewound | |
| Select all | ||
|---|---|---|
Brand TDK | ||
Product Type Wirewound Surface Mount Inductor | ||
Inductance 10 μH | ||
Maximum DC Current 5.4A | ||
Package/Case 12575 | ||
Length 12.5mm | ||
Packaging Taping | ||
Automotive Standard No | ||
Shielding Yes | ||
Maximum DC Resistance 15.6mΩ | ||
Minimum Operating Temperature -20°C | ||
Series SLF | ||
Maximum Operating Temperature 105°C | ||
Inductance Tolerance ±20 % | ||
Standards/Approvals RoHS | ||
Depth 12.5mm | ||
Core Material Ferrite | ||
Termination Style Surface Mount | ||
Height 7.5mm | ||
Moulded Yes | ||
Inductor Construction Wirewound | ||
- COO (Country of Origin):
- JP
SLF12575 Series Magnetically Shielded Wire Wound Chokes
Low profile SMT magnetically shielded power line inductor for EMC reduction
Applications include portable telephones, personal computers, hard disk drives, and other electronic equipment
TDK Non Standard SMT Inductors (Chokes)
