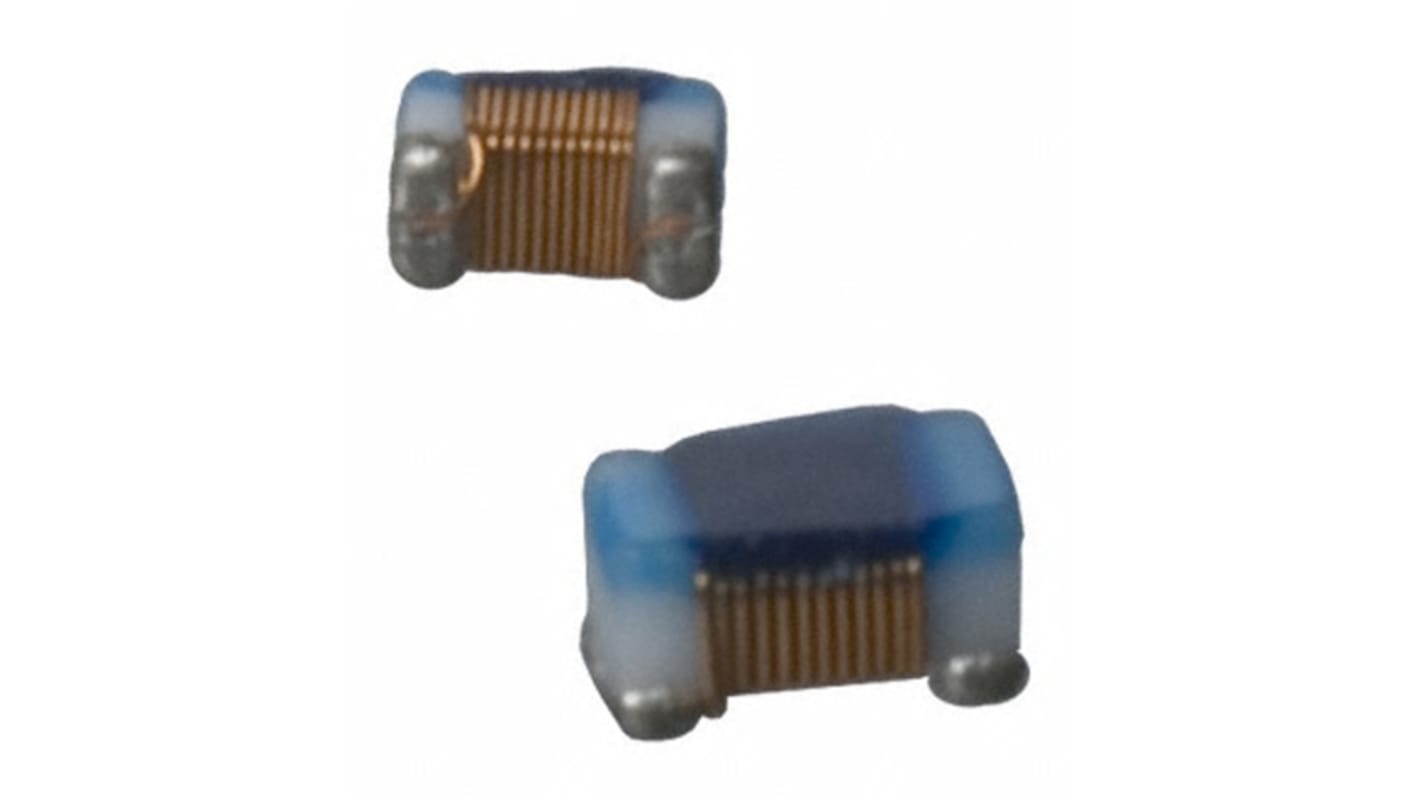

Murata, LQW2UAS_00, 2520 Wire-wound SMD Inductor with a Non-Magnetic Core Core, 3.3 μH ±5% Wire-Wound 290mA Idc Q:22

View all Surface Mount Inductors
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Packaging Options:
RS Stock No.:
106-5385
Mfr. Part No.:
LQW2UAS3R3J00L
Brand:
Murata
Find similar products by selecting one or more attributes.
Select all

Brand

Murata

Inductance

3.3 μH

Maximum DC Current

290mA

Package/Case

2520

Length

2.62mm

Depth

2.45mm

Height

1.83mm

Dimensions

2.62 x 2.45 x 1.83mm

Tolerance

±5%

Maximum DC Resistance

3.4Ω

Series

LQW2UAS_00

Core Material

Non-Magnetic Core

Minimum Operating Temperature

-55°C

Moulded

Yes

Maximum Operating Temperature

+125°C

Inductor Construction

Wire-Wound

Minimum Quality Factor

22

COO (Country of Origin):
JP

LQW2UAS Series SMD Chip Inductor


Murata LQW Series wire wound RF inductors incorporates a high Q value giving great attenuation characteristics inside the pass band of the filters. These LQW inductors are used in matching applications of antennas for maintaining the reception and transmission sensitivity of the antennas. The LQW has low Rdc characteristics and can be employed in choke circuits where high current levels flow.

Features


There are two types of structure available for different applications
High Q value
Large currents can be supported
Low DC resistance


Murata Non Standard SMT Inductors (Chokes)
