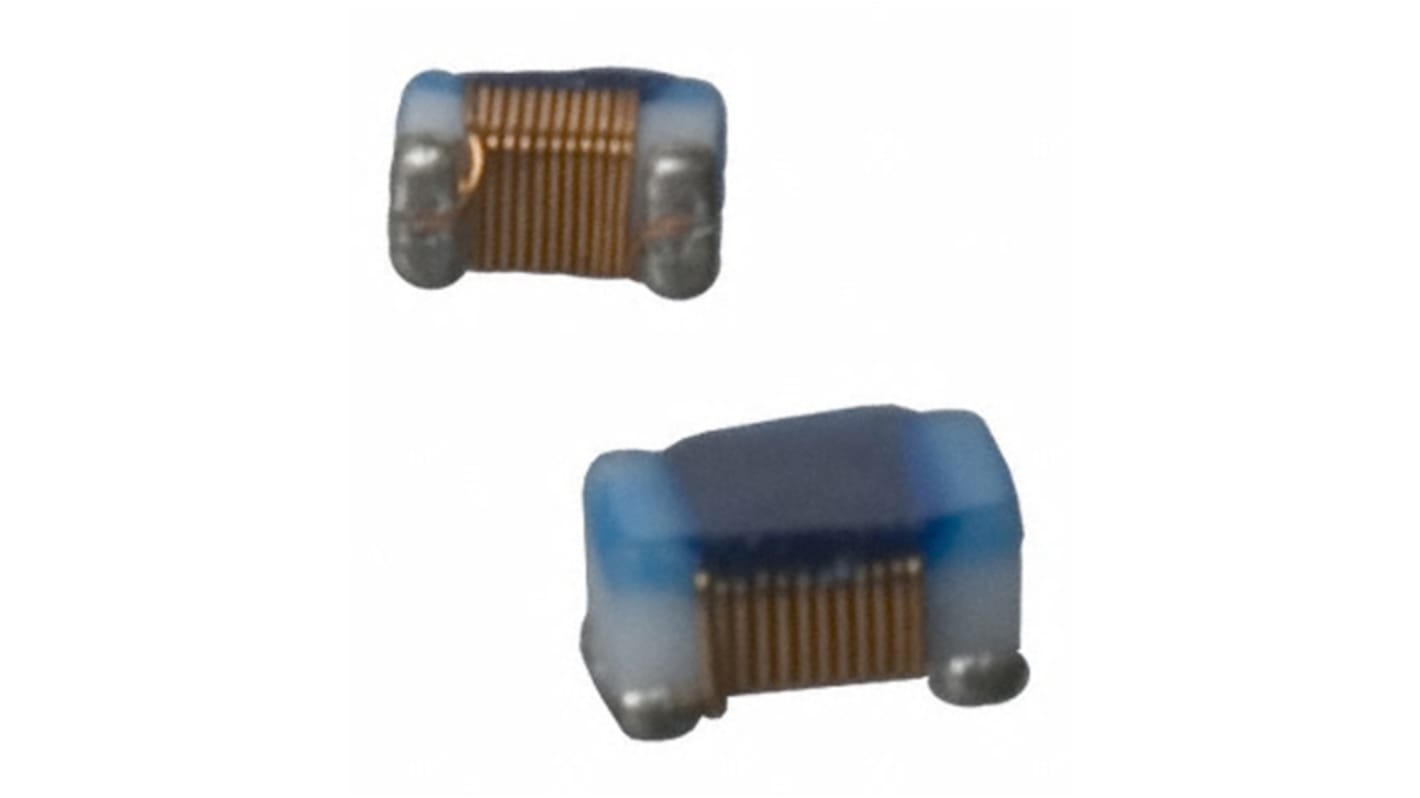

Murata, LQW2BAS_00, 2015 Wire-wound SMD Inductor with a Non-Magnetic Core Core, 0.15 μH ±5% Wire-Wound 400mA Idc Q:50
- RS Stock No.:
- 106-5380
- Mfr. Part No.:
- LQW2BASR15J00L
- Brand:
- Murata
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 106-5380
- Mfr. Part No.:
- LQW2BASR15J00L
- Brand:
- Murata
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Murata | |
| Inductance | 0.15 μH | |
| Maximum DC Current | 400mA | |
| Package/Case | 2015 | |
| Length | 2.09mm | |
| Depth | 1.53mm | |
| Height | 1.42mm | |
| Dimensions | 2.09 x 1.53 x 1.42mm | |
| Tolerance | ±5% | |
| Maximum DC Resistance | 560mΩ | |
| Series | LQW2BAS_00 | |
| Core Material | Non-Magnetic Core | |
| Minimum Operating Temperature | -55°C | |
| Moulded | Yes | |
| Minimum Quality Factor | 50 | |
| Maximum Operating Temperature | +125°C | |
| Inductor Construction | Wire-Wound | |
Select all | ||
|---|---|---|
Brand Murata | ||
Inductance 0.15 μH | ||
Maximum DC Current 400mA | ||
Package/Case 2015 | ||
Length 2.09mm | ||
Depth 1.53mm | ||
Height 1.42mm | ||
Dimensions 2.09 x 1.53 x 1.42mm | ||
Tolerance ±5% | ||
Maximum DC Resistance 560mΩ | ||
Series LQW2BAS_00 | ||
Core Material Non-Magnetic Core | ||
Minimum Operating Temperature -55°C | ||
Moulded Yes | ||
Minimum Quality Factor 50 | ||
Maximum Operating Temperature +125°C | ||
Inductor Construction Wire-Wound | ||
- COO (Country of Origin):
- JP
LQW21AS Series SMD Chip Inductors
Murata LQW Series wire wound RF inductors incorporates a high Q value giving great attenuation characteristics inside the pass band of the filters. These LQW inductors are used in matching applications of antennas for maintaining the reception and transmission sensitivity of the antennas. The LQW has low Rdc characteristics and can be employed in choke circuits where high current levels flow.
Features
There are two types of structure available for different applications
High Q value
Large currents can be supported
Low DC resistance
High Q value
Large currents can be supported
Low DC resistance
