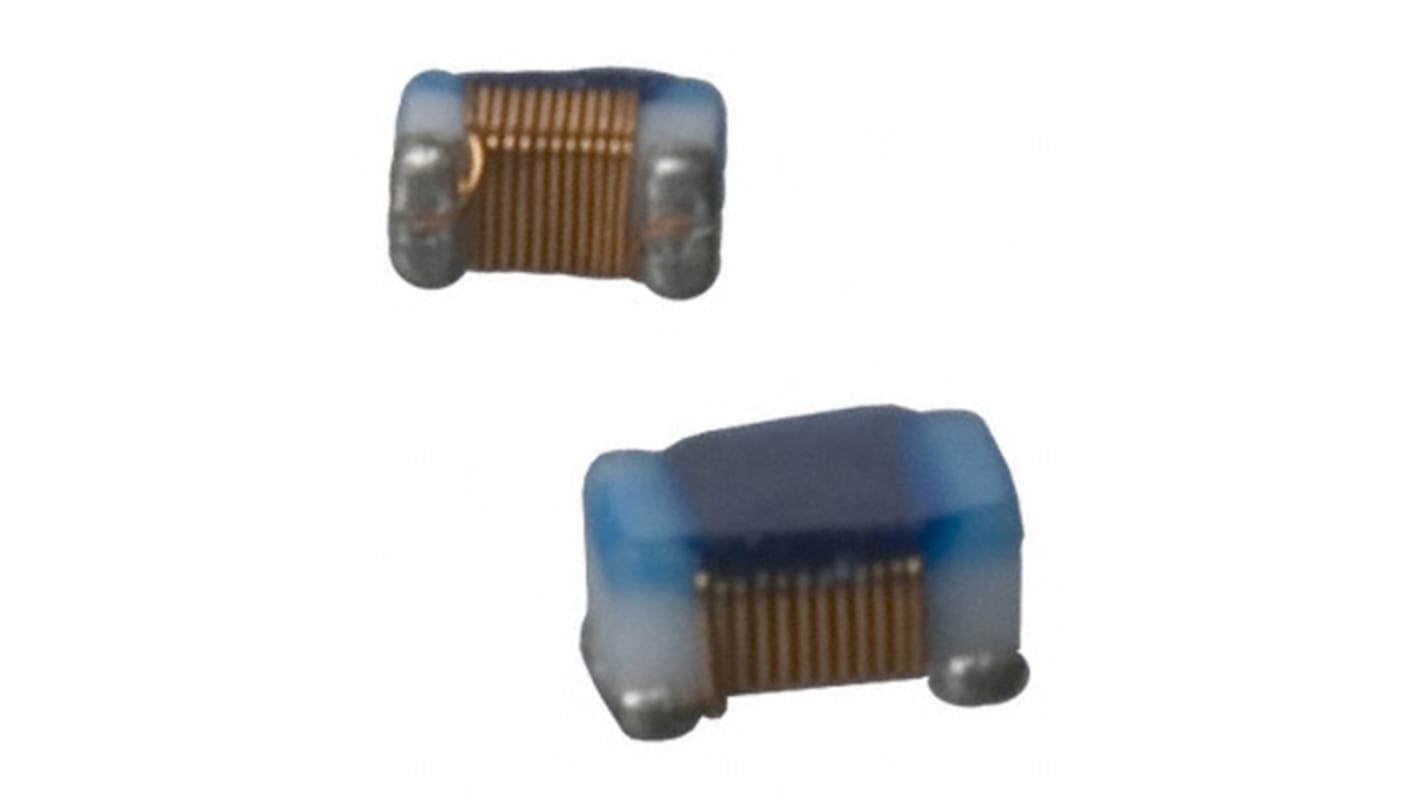

Murata, LQW18CN_00, 1608 Wire-wound SMD Inductor with a Ferrite Core, 0.65 μH ±5% Wire-Wound 430mA Idc
- RS Stock No.:
- 106-5375
- Mfr. Part No.:
- LQW18CNR65J00D
- Brand:
- Murata
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 106-5375
- Mfr. Part No.:
- LQW18CNR65J00D
- Brand:
- Murata
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Murata | |
| Inductance | 0.65 μH | |
| Maximum DC Current | 430mA | |
| Package/Case | 1608 | |
| Length | 1.6mm | |
| Depth | 0.8mm | |
| Height | 0.8mm | |
| Dimensions | 1.6 x 0.8 x 0.8mm | |
| Tolerance | ±5% | |
| Maximum DC Resistance | 520mΩ | |
| Series | LQW18CN_00 | |
| Core Material | Ferrite | |
| Maximum Operating Temperature | +85°C | |
| Inductor Construction | Wire-Wound | |
| Minimum Operating Temperature | -40°C | |
| Moulded | Yes | |
Select all | ||
|---|---|---|
Brand Murata | ||
Inductance 0.65 μH | ||
Maximum DC Current 430mA | ||
Package/Case 1608 | ||
Length 1.6mm | ||
Depth 0.8mm | ||
Height 0.8mm | ||
Dimensions 1.6 x 0.8 x 0.8mm | ||
Tolerance ±5% | ||
Maximum DC Resistance 520mΩ | ||
Series LQW18CN_00 | ||
Core Material Ferrite | ||
Maximum Operating Temperature +85°C | ||
Inductor Construction Wire-Wound | ||
Minimum Operating Temperature -40°C | ||
Moulded Yes | ||
- COO (Country of Origin):
- JP
LQW18CN Series SMD Chip Inductors
Murata LQW Series wire wound RF inductors incorporates a high Q value giving great attenuation characteristics inside the pass band of the filters. These LQW inductors are used in matching applications of antennas for maintaining the reception and transmission sensitivity of the antennas. The LQW has low Rdc characteristics and can be employed in choke circuits where high current levels flow.
Features
There are two types of structure available for different applications
High Q value
Large currents can be supported
Low DC resistance
High Q value
Large currents can be supported
Low DC resistance
Murata Non Standard SMT Inductors (Chokes)
