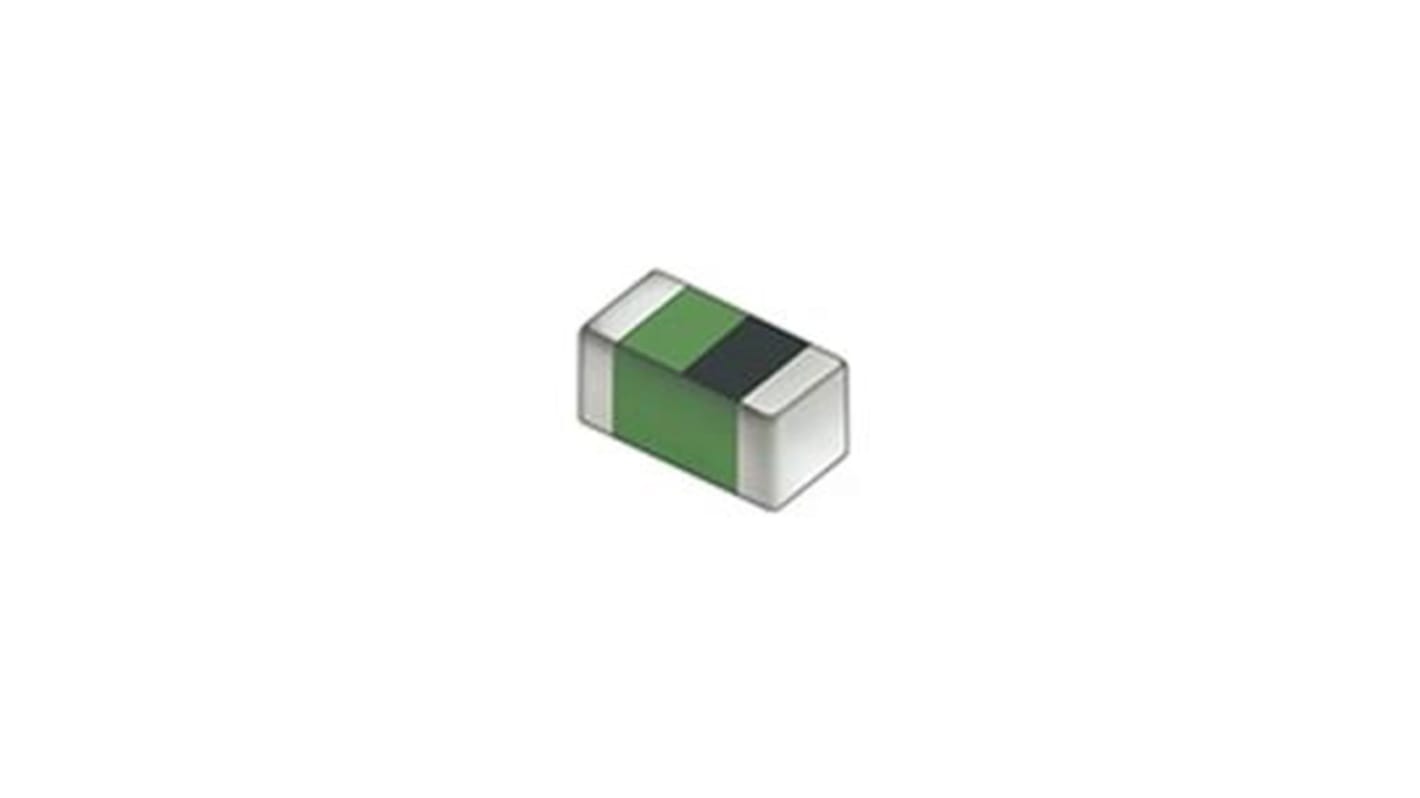

Murata, LQG15HN, 0402 (1005M) Multilayer Surface Mount Inductor 12 nH ±5% Multilayer 300mA Idc Q:8

View all Surface Mount Inductors
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Packaging Options:
RS Stock No.:
104-8558
Mfr. Part No.:
LQG15HN12NJ02D
Brand:
Murata
Find similar products by selecting one or more attributes.
Select all

Brand

Murata

Inductance

12 nH

Maximum DC Current

300mA

Package/Case

0402 (1005M)

Length

1mm

Depth

0.5mm

Height

0.5mm

Dimensions

1 x 0.5 x 0.5mm

Tolerance

±5%

Maximum DC Resistance

410mΩ

Series

LQG15HN

Minimum Quality Factor

8

Inductor Construction

Multilayer

Minimum Operating Temperature

-55°C

Maximum Operating Temperature

+125°C

Moulded

Yes

COO (Country of Origin):
JP

Murata 0402 LQG15HN Series High Frequency Chip Inductors


LQG15HN SMD inductors from Murata feature a multilayer construction. Despite a lower Q factor than wire wound equivalents, the multilayer construction provides excellent balance between rated current, size and L value tolerance among others.

LQGH15HS SMD inductors are highly reliable and suitable for application in chokes, WLAN networks, RF circuit matching and mobile communication equipment resonance.

Can be used in high frequency circuits
Excellent stability at high frequencies
Monolithic structure
