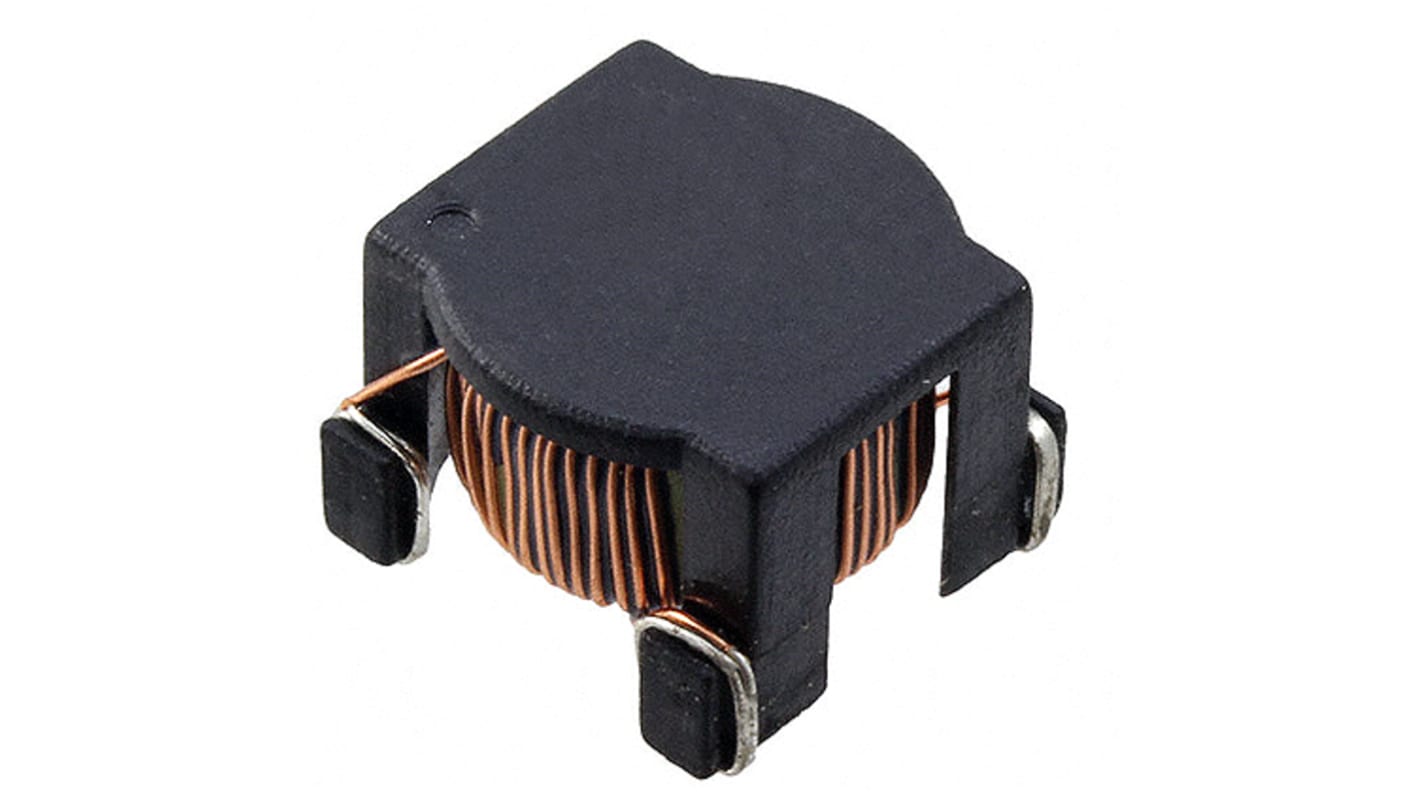

RS PRO Wire-wound SMD Inductor 100 μH ±15% Wire-Wound 1.4A Idc

View all Surface Mount Inductors
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
104-8412
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Inductance

100 μH

Maximum DC Current

1.4A

Length

12mm

Depth

12mm

Height

9.1mm

Dimensions

12 x 12 x 9.1mm

Tolerance

±15%

Maximum DC Resistance

128mΩ

Series

LCP

Maximum Self Resonant Frequency

1MHz

Minimum Operating Temperature

-40°C

Moulded

Yes

Maximum Operating Temperature

+125°C

Inductor Construction

Wire-Wound

COO (Country of Origin):
IN

RS Pro Surface Mount Toroidal Inductors 10uf-220uf


RS Pro Surface mount toroidal inductors are excellent for filtering high frequency signals while supporting a substantial DC Current. These SMD inductors can be used in applications where energy storage is required for storage of a highly stable inductance when a rapid change in current occurs. The RS Pro chokes have an operating frequency to 1 MHz and include high energy storage with low saturation.

Applications


Common mode filter
DC-DC convertors
Step up, step down
Filtering battery powered equipment
Inverting or dual output

Standards

RoHS Compliant
SO-9001:2000
TS-16949:2002
ISO-14001:2004
