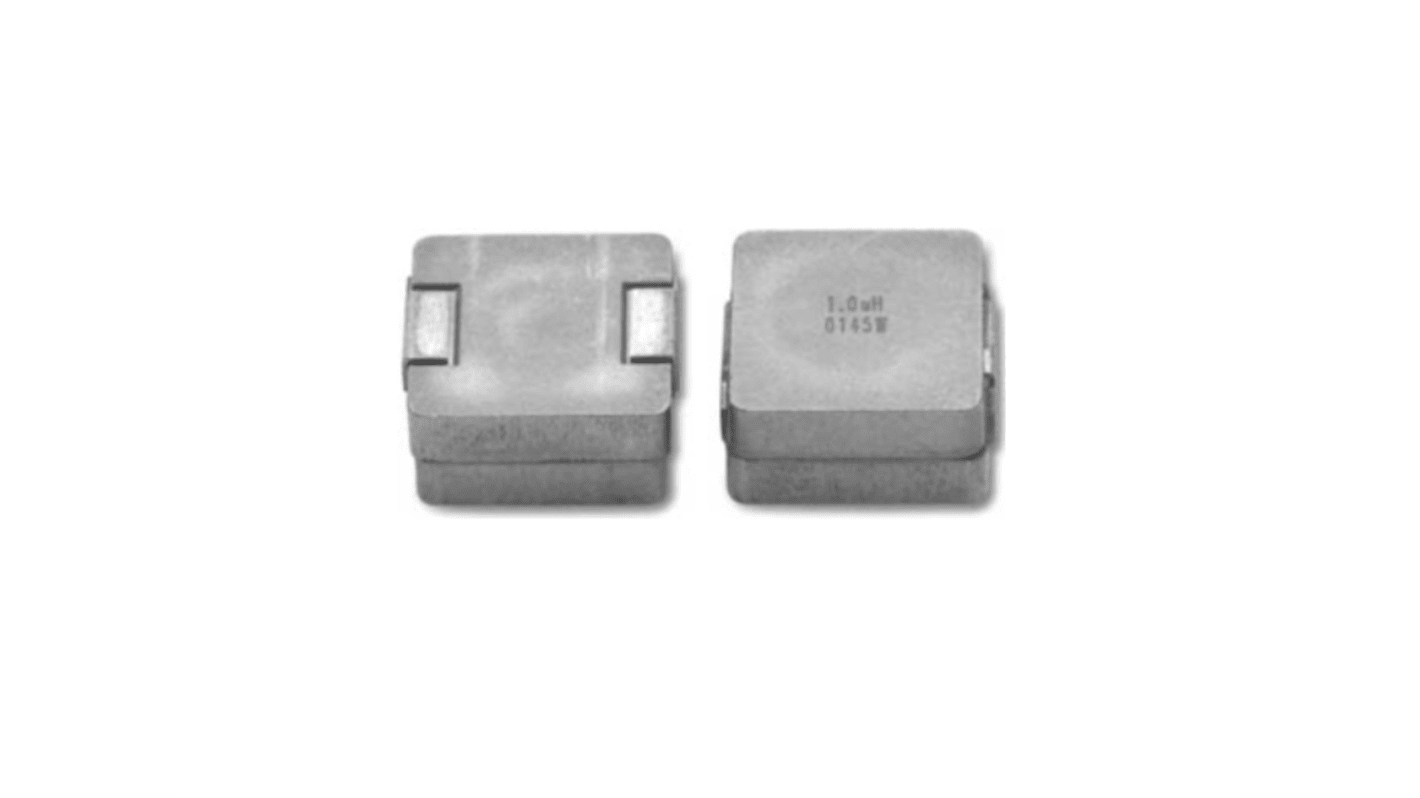

Vishay, IHLP, EK Shielded Wirewound Surface Mount Inductor with a Metal Composite Core, 100 nH ±20 % 60 A Idc
- RS Stock No.:
- 565-102
- Mfr. Part No.:
- IHLP5050FDEKR10M01
- Brand:
- Vishay
Bulk discount available
Subtotal (1 tape of 5 units)*
£7.77
(exc. VAT)
£9.325
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 500 unit(s) shipping from 03 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 5 - 45 | £1.554 | £7.77 |
| 50 - 245 | £1.258 | £6.29 |
| 250 + | £0.964 | £4.82 |
*price indicative
- RS Stock No.:
- 565-102
- Mfr. Part No.:
- IHLP5050FDEKR10M01
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | Wirewound Surface Mount Inductor | |
| Inductance | 100 nH | |
| Maximum DC Current | 60A | |
| Package/Case | EK | |
| Length | 0.52in | |
| Automotive Standard | No | |
| Shielding | Yes | |
| Pin Count | 2 | |
| Minimum Operating Temperature | -55°C | |
| Maximum DC Resistance | 0.50mΩ | |
| Inductance Tolerance | ±20 % | |
| Series | IHLP | |
| Maximum Operating Temperature | 125°C | |
| Height | 6.4mm | |
| Termination Style | EK | |
| Standards/Approvals | RoHS | |
| Diameter | 0.25 in | |
| Depth | 0.25in | |
| Core Material | Metal Composite | |
| Maximum Self Resonant Frequency | 5MHz | |
| Inductor Construction | Shielded | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type Wirewound Surface Mount Inductor | ||
Inductance 100 nH | ||
Maximum DC Current 60A | ||
Package/Case EK | ||
Length 0.52in | ||
Automotive Standard No | ||
Shielding Yes | ||
Pin Count 2 | ||
Minimum Operating Temperature -55°C | ||
Maximum DC Resistance 0.50mΩ | ||
Inductance Tolerance ±20 % | ||
Series IHLP | ||
Maximum Operating Temperature 125°C | ||
Height 6.4mm | ||
Termination Style EK | ||
Standards/Approvals RoHS | ||
Diameter 0.25 in | ||
Depth 0.25in | ||
Core Material Metal Composite | ||
Maximum Self Resonant Frequency 5MHz | ||
Inductor Construction Shielded | ||
The Vishay Power Inductor features shielded construction for reduced EMI and enhanced circuit stability. It is capable of handling high transient current spikes without saturation, ensuring reliable performance under dynamic load conditions. Ideal for use in efficient DC/DC converters and Compact power systems.
Ultra low buzz noise, due to composite construction
RoHS Compliant
Halogen free
