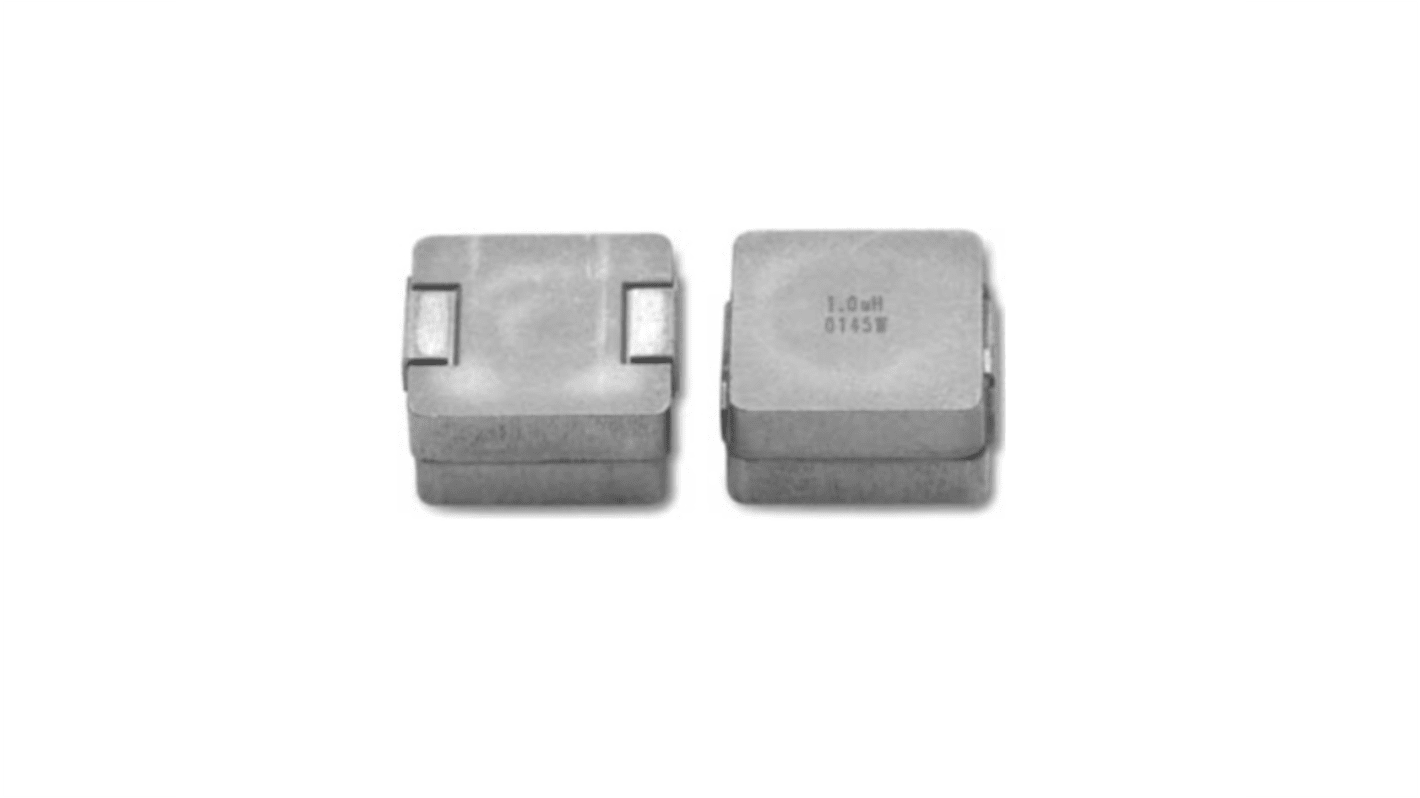

Vishay, IHLP, EK Shielded Wirewound Surface Mount Inductor with a Metal Composite Core, 470 nH ±20 % 41 A Idc
- RS Stock No.:
- 565-087
- Mfr. Part No.:
- IHLP5050FDEKR47M01
- Brand:
- Vishay
Subtotal (1 reel of 500 units)*
£420.50
(exc. VAT)
£504.50
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Reel* |
|---|---|---|
| 500 + | £0.841 | £420.50 |
*price indicative
- RS Stock No.:
- 565-087
- Mfr. Part No.:
- IHLP5050FDEKR47M01
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | Wirewound Surface Mount Inductor | |
| Inductance | 470 nH | |
| Maximum DC Current | 41A | |
| Package/Case | EK | |
| Length | 0.52in | |
| Automotive Standard | No | |
| Shielding | Yes | |
| Pin Count | 2 | |
| Maximum DC Resistance | 1.2mΩ | |
| Minimum Operating Temperature | -55°C | |
| Series | IHLP | |
| Inductance Tolerance | ±20 % | |
| Maximum Operating Temperature | 125°C | |
| Termination Style | EK | |
| Diameter | 0.25 in | |
| Standards/Approvals | RoHS | |
| Core Material | Metal Composite | |
| Height | 6.4mm | |
| Depth | 0.25in | |
| Maximum Self Resonant Frequency | 5MHz | |
| Inductor Construction | Shielded | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type Wirewound Surface Mount Inductor | ||
Inductance 470 nH | ||
Maximum DC Current 41A | ||
Package/Case EK | ||
Length 0.52in | ||
Automotive Standard No | ||
Shielding Yes | ||
Pin Count 2 | ||
Maximum DC Resistance 1.2mΩ | ||
Minimum Operating Temperature -55°C | ||
Series IHLP | ||
Inductance Tolerance ±20 % | ||
Maximum Operating Temperature 125°C | ||
Termination Style EK | ||
Diameter 0.25 in | ||
Standards/Approvals RoHS | ||
Core Material Metal Composite | ||
Height 6.4mm | ||
Depth 0.25in | ||
Maximum Self Resonant Frequency 5MHz | ||
Inductor Construction Shielded | ||
The Vishay Power Inductor features shielded construction for reduced EMI and enhanced circuit stability. It is capable of handling high transient current spikes without saturation, ensuring reliable performance under dynamic load conditions. Ideal for use in efficient DC/DC converters and Compact power systems.
Ultra low buzz noise, due to composite construction
RoHS Compliant
Halogen free
